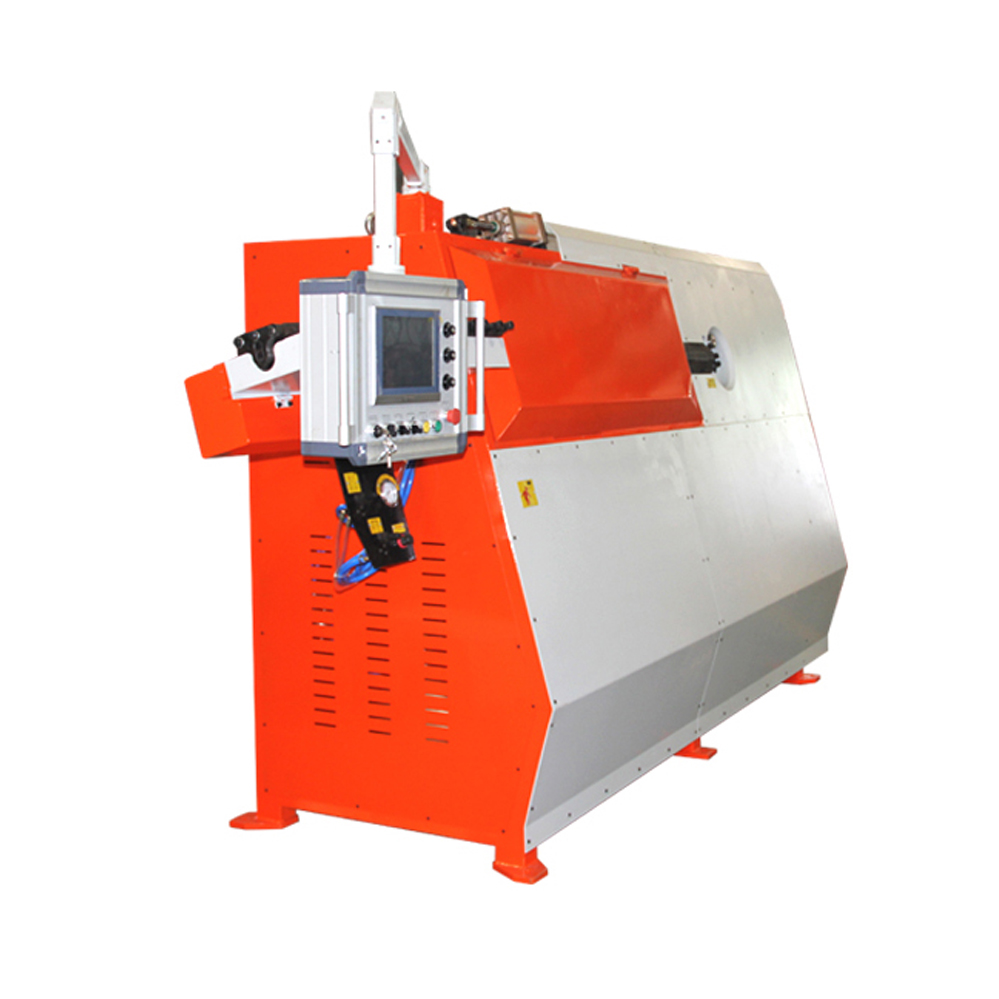

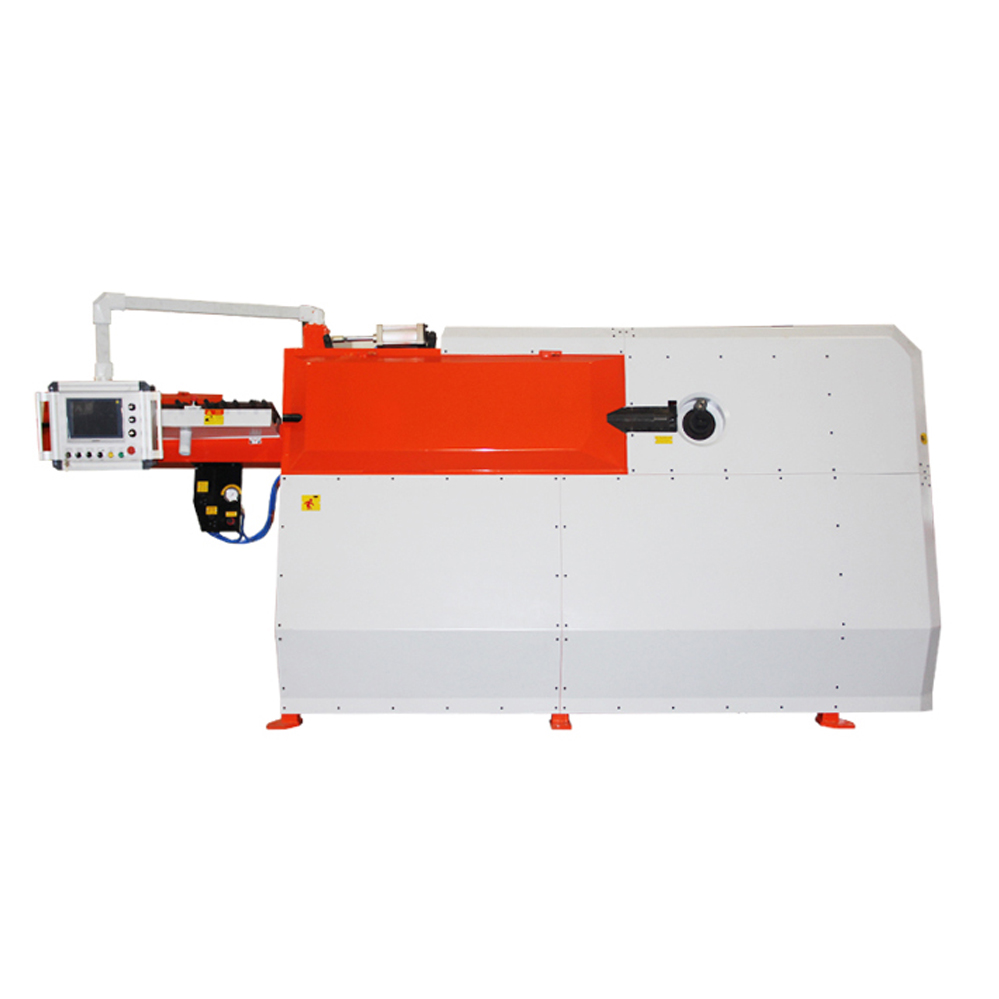

CNC Automatic Stirrup Bender
This CNC automatic stirrup bender automatically accomplishes straightening, stirrup bending, and cutting. It is widely used in the construction industry and rebar manufacturing enterprises for steel wire rod, steel bar, and steel rebar.
Technical Specifications
Product Overview
High-Efficiency CNC Stirrup Bending
This CNC automatic stirrup bender is a versatile solution for the construction industry, capable of automatically performing straightening, bending, and cutting operations. Controlled by a high-precision servo system, it ensures consistent angles and dimensions for steel wire, rod, and rebar. Designed for high-volume production, it significantly reduces manual labor while maximizing productivity in precast concrete plants and construction sites.
Performance Metrics
Key Performance Metrics
1,100 pcs/h
Bending Speed
110 m/min
Max Pulling Speed
180 °
Max Bending Angle
5 kw/h
Avg Power Consumption
Processing Capacity
Wire Diameter Capacity
| Configuration | Diameter Range |
|---|---|
| Single Wire | 8-16mm |
| Double Wire | 8-12mm |
Technical Specifications
Available Power Ratings
- 7.5 KW
- 5.5 KW
- 4 KW
- Central Mandrel Diameter
- φ20-30mm
- Machine Weight
- 1100 kg
Operational Features
- Automated Functions
- StraighteningBendingCuttingFeedingLeveling
- Control System
- Programmable CNC Servo System
Applications
Target Industries
- Construction Industry
- Rebar Manufacturing Enterprises
- Precast Concrete Plants
- Steel Wire Processing
Safety & Design
Safety Features
Emergency StopEnclosed Bending AreaProtective Guards
