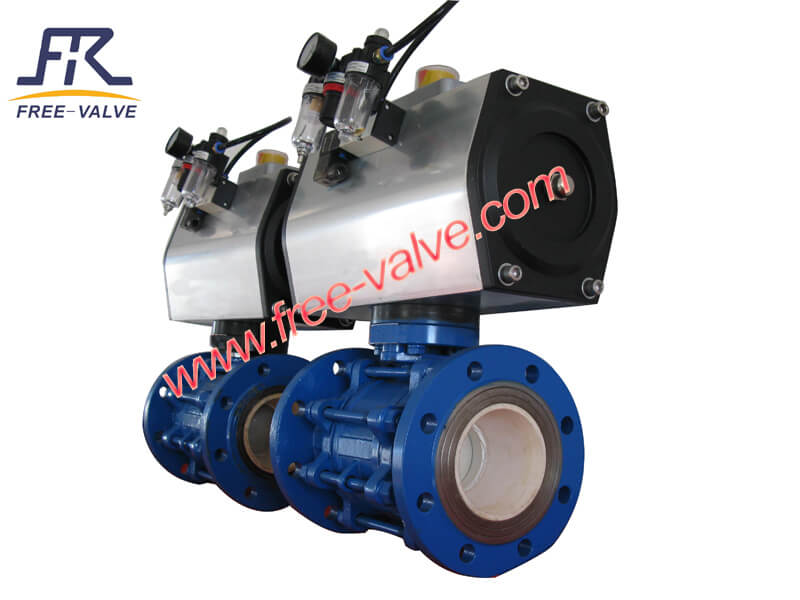

Ceramic Lined Pneumatic Flanged Ball Valve
This ceramic lined ball valve features a pneumatic actuator and flanged connections. The ceramic lining provides excellent resistance to abrasion and corrosion in demanding applications.
Technical Specifications
Overview
High-Performance Ceramic Lined Ball Valve
This ceramic lined pneumatic flanged ball valve is engineered for superior wear and corrosion resistance in demanding industrial environments. Utilizing advanced engineering ceramics with hardness levels exceeding HRC80, it provides exceptional durability against abrasive solids and corrosive media. Designed for versatility, this valve supports manual, pneumatic, and electric actuation, making it an ideal solution for critical flow control in industries like mining and thermal power.
Technical Specifications
Nominal Pressure
1 MPa
Rating
150 lbs
Class
- Size Range
- DN50 to DN200 (NPS2 to NPS8)
- Working Temperature
- 200 °C
- Flange Standards
- ASME B16.5GB/T9113
Performance Features
Core Features
- Floating ball design for high-pressure sealing
- Hardness rating exceeding HRC80
- Customizable V-type control option available
- Multi-actuation support: Manual, Pneumatic, and Electric
- Superior corrosion and abrasion resistance
Testing & Design Standards
| Standard Type | Reference |
|---|---|
| Pressure Test | GB/T13927, API598 |
| Face to Face | GB/T12221, API609 |
Applications
- Typical Media Handled
- Silicon PowderAlumina PowderDry Coal PowderLimestone SlurryGypsum SlurryFly AshMining OreMetallurgical dust
