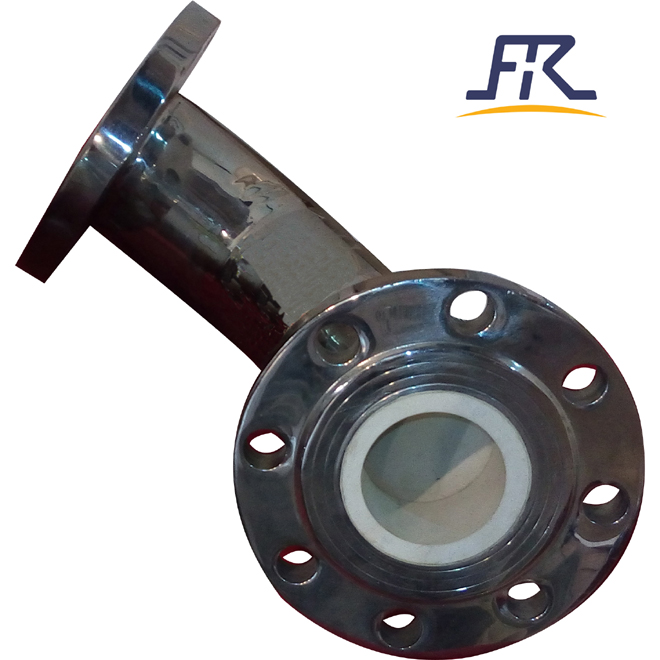

Ceramic Lined Composite Pipe and Elbow
Ceramic lined composite pipes and elbows are designed for pneumatic and pumping conveying of powders. These composite parts include elbows, short sections, tee joints, and reducers.
Technical Specifications
Product Overview
Industrial Ceramic Lined Composite Piping
These ceramic lined composite pipes and elbows are engineered for high-performance pneumatic and pumping conveying systems. By combining the structural integrity of steel with the extreme hardness and wear resistance of ceramic liners, these components significantly extend operational lifespan in harsh environments. They feature a smooth inner wall to prevent clogging, making them ideal for high-speed, abrasive material transport.
Technical Specifications
Connection Type
FlangeWelding
- Flange Standards
- ASME B16.5GB/T9113
- Nominal Pressure
- 1 MPa
- Pressure Class
- Class150
- Size Range (Metric)
- DN50 ~ DN300
- Size Range (Imperial)
- NPS2 ~ NPS12
- Max Working Temperature
- 200 ℃
Materials
Composition
- Engineering Ceramic
- Steel
Applications
Primary Applications
| Industry | Application |
|---|---|
| Power Plants | Slag draining, ash removal, powder feeding |
| Steel Plants | Iron alloy conveying, slag conveying, external refining |
| Cement Plants | LiCoO2 powder, raw slurry conveying, coal powder |
| Construction | Concrete conveying |
