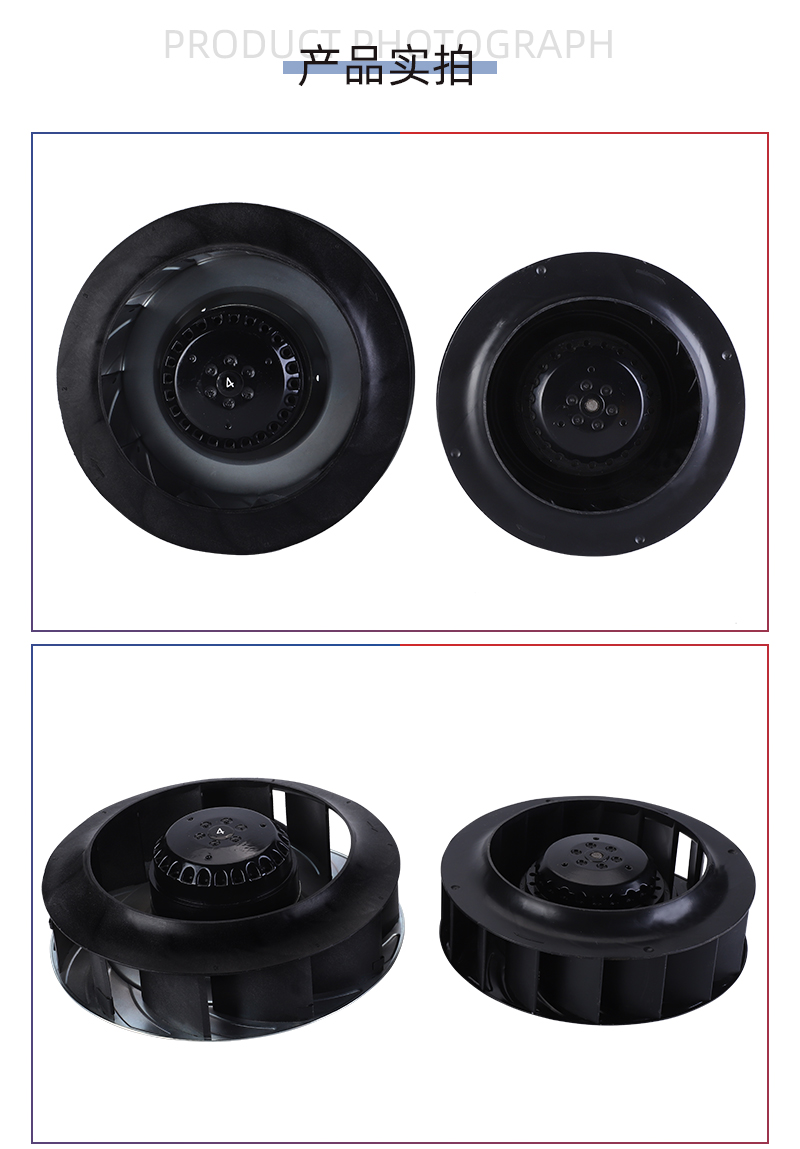

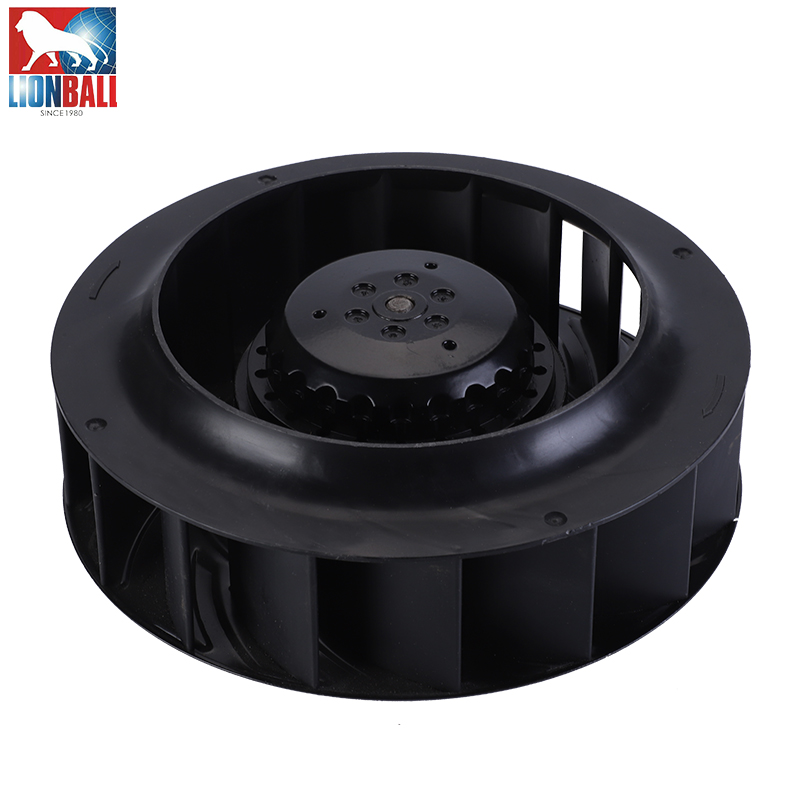

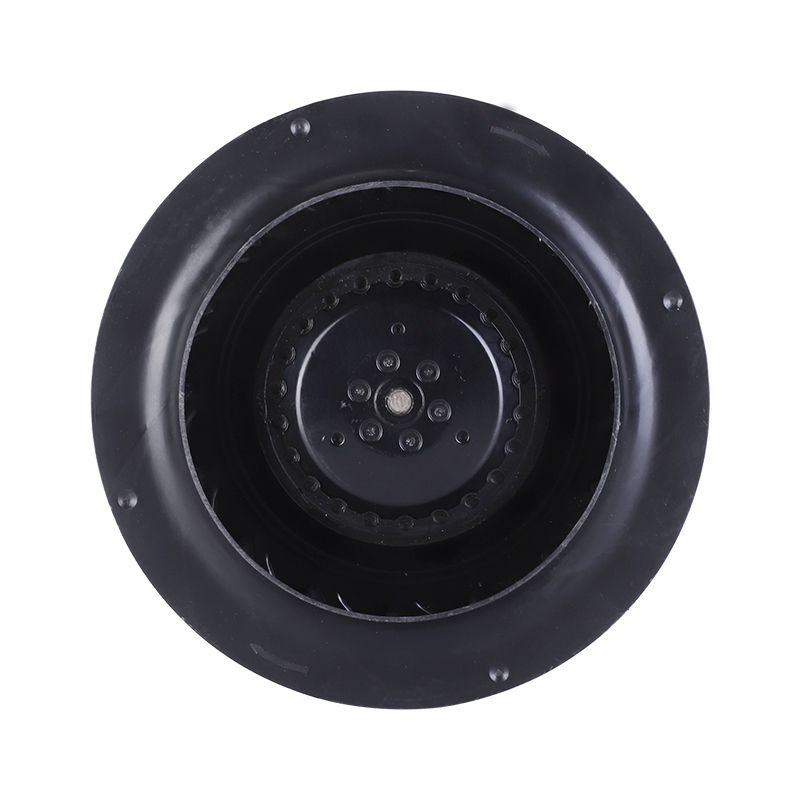

Centrifugal Fan
This centrifugal fan features a compact structure and professional design. It is engineered for efficient operation, low noise, and a long service life.
Technical Specifications
Product Overview
High-Performance Centrifugal Ventilation
The YWFB series centrifugal fan is engineered for professional HVAC&R applications, offering a compact structure and specialized design for efficient air movement. Built with fine process control and a dynamically balanced impeller, it ensures high efficiency with low noise operation. This robust ventilation solution is designed for easy installation and a long service life in demanding environments like air purifiers and industrial ventilation systems.
Key Features
- Compact structure for space-constrained environments
- Professional and specialized design
- Fine process control and precision engineering
- Easy installation and integration
- High efficiency with low noise profile
- Long operational service life
Technical Specifications
Model Performance Data
| Model | Voltage (V) | Freq (Hz) | Power (W) | Speed (RPM) | Air Flow (m³/h) | Noise (dB(A)) |
|---|---|---|---|---|---|---|
| YWFB2E133 | 230 | 50/60 | 35 | 2800/3200 | 270/320 | 55/58 |
| YWFB2E175 | 230 | 50/60 | 52 | 2650/3100 | 490/570 | 63/68 |
| YWFB2E190 | 230 | 50/60 | 80 | 2400/2600 | 530/580 | 62/64 |
| YWFB2E190 (115V) | 115 | 50/60 | 90 | 2700 | 570/620 | 63/65 |
Peak Performance
620 m³/h
Max Air Flow
3,200 RPM
Max Speed

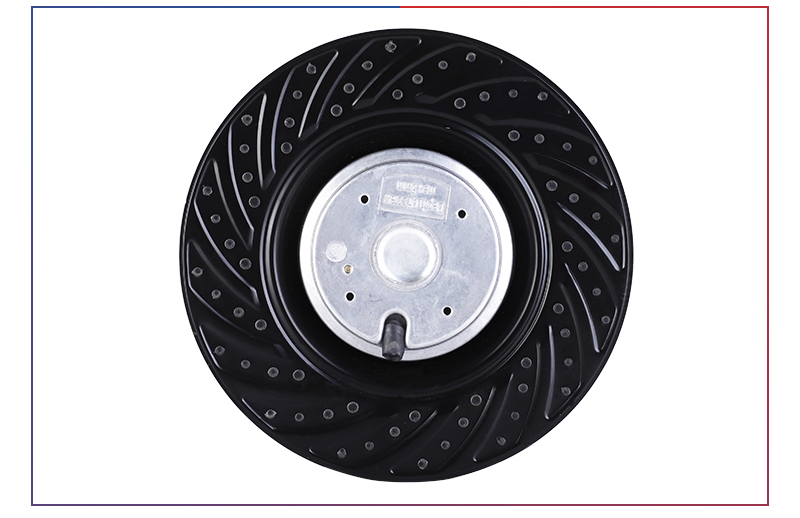

- Construction & Design
- Black Plastic HousingMetallic Central HubDynamically Balanced ImpellerEnclosed MotorExternal Rotor Design
Applications
Industry Applications
HVAC SystemsAir PurificationRefrigerationMedical TreatmentNew EnergyAuto PartsLaboratoriesIndustrial Factories
Purchasing Information

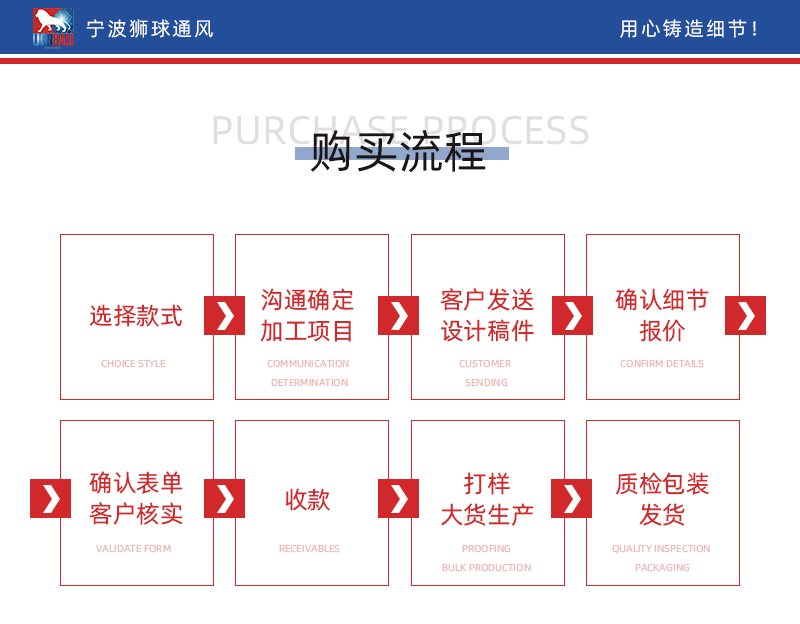

Ordering Workflow
- Style selection and communication
- Design draft submission and detail confirmation
- Quotation and form validation
- Payment collection
- Proofing and bulk production
- Quality inspection and packaging dispatch
- Certifications & Compliance
- VDEULCERoHSCCCISO 9001ISO 14001
