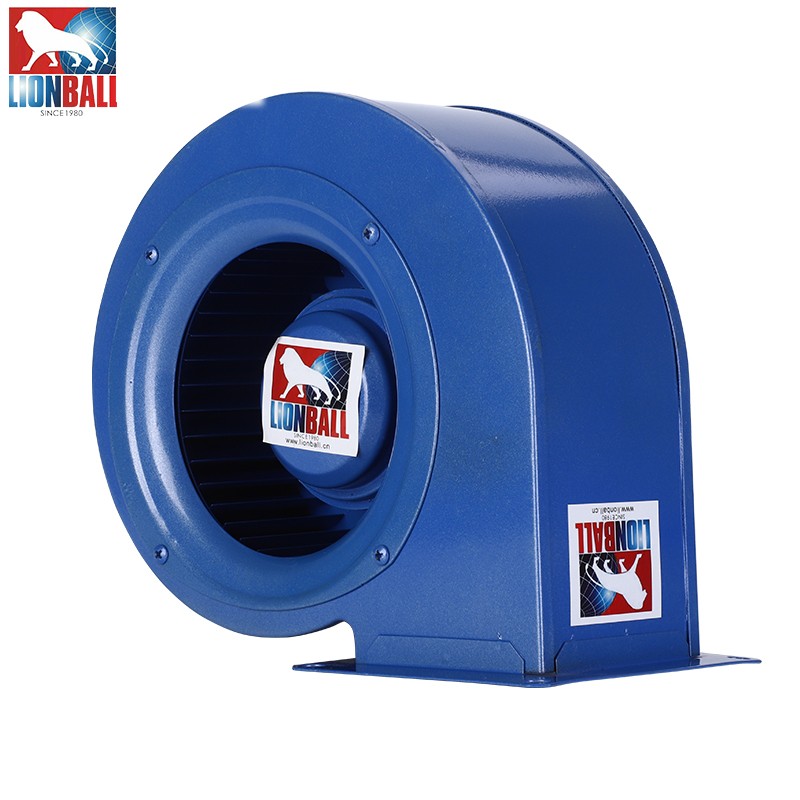

Forward Centrifugal Fan for HVAC Ventilation
This forward centrifugal fan is designed for HVAC and ventilation systems. It is engineered for efficient air movement and is suitable for use in air filters and other ventilation applications.
Technical Specifications
Product Overview
High-Performance Forward Centrifugal Fan
This forward centrifugal fan is engineered for efficient air movement in HVAC and ventilation systems. Designed with a compact structure and optimized impeller geometry, it ensures reliable performance with low noise output and high energy efficiency. It is suitable for a wide range of industrial, commercial, and residential air handling applications, including air filtration and ventilation units.
Key Features
- Key Features
- Compact structureProfessional designFine process controlEasy installationEfficient and low noiseLong service life
Technical Specifications
Performance Metrics
160 m³/h
Minimum Air Flow
890 m³/h
Maximum Air Flow
55 dB(A)
Minimum Noise Level
78 dB(A)
Maximum Noise Level
Configuration Reference
| Model | Voltage | Power | Speed | Air Flow |
|---|---|---|---|---|
| YWFF2E120 | 230V | 67W | 2,450 | 160 |
| YWFF2E133L | 230V | 75/90W | 2,000 | 250 |
| YWFF4E133H | 230V | 50W | 1,300 | 250 |
| YWFF2E160 | 230V | 280W | 2,000 | 630 |
| YWFF4E180H | 115V | 210W | 1,550 | 890 |
Applications
Typical Applications
- HVAC Systems
- Air Filtration Units
- Industrial Ventilation
- Commercial Air Handling
- Residential Ventilation
