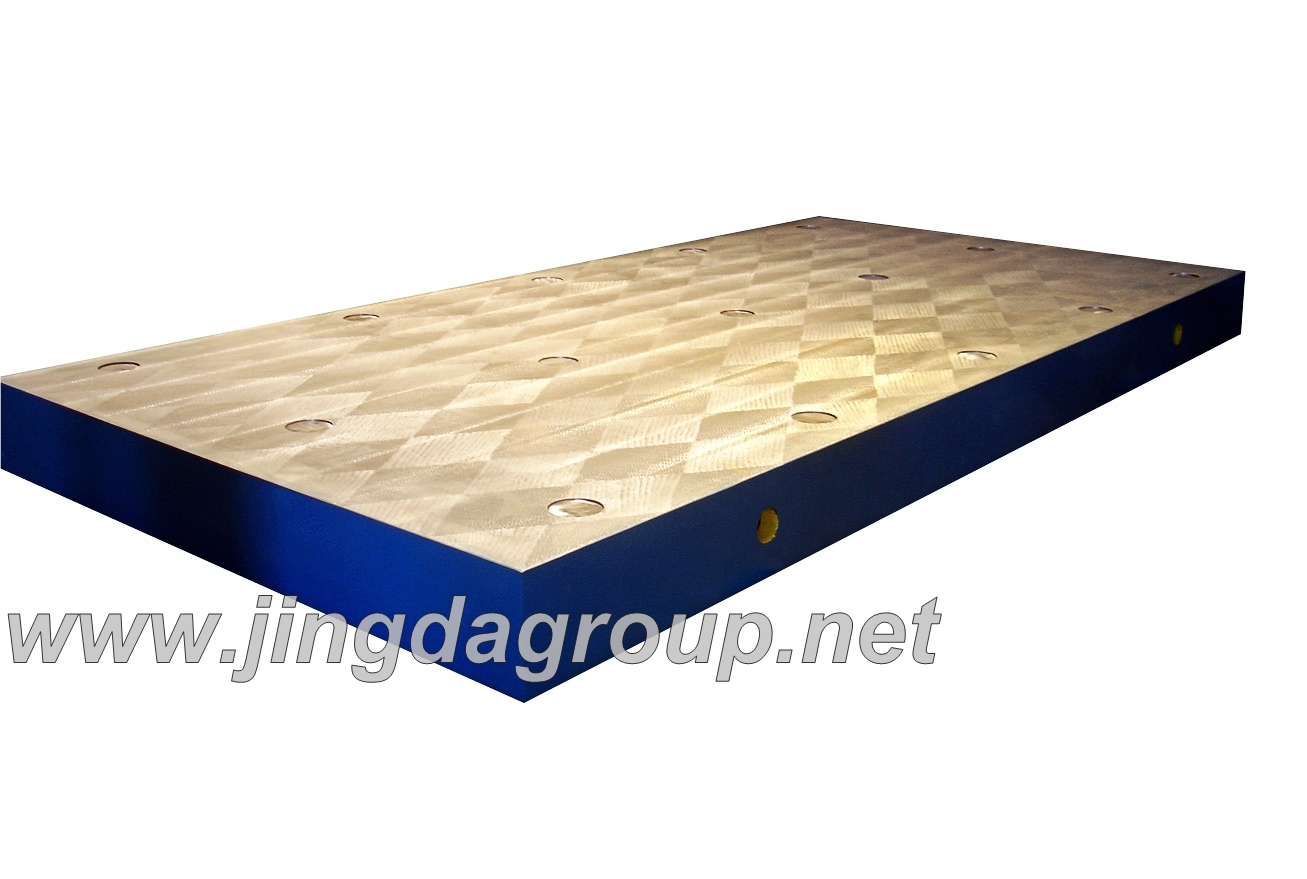

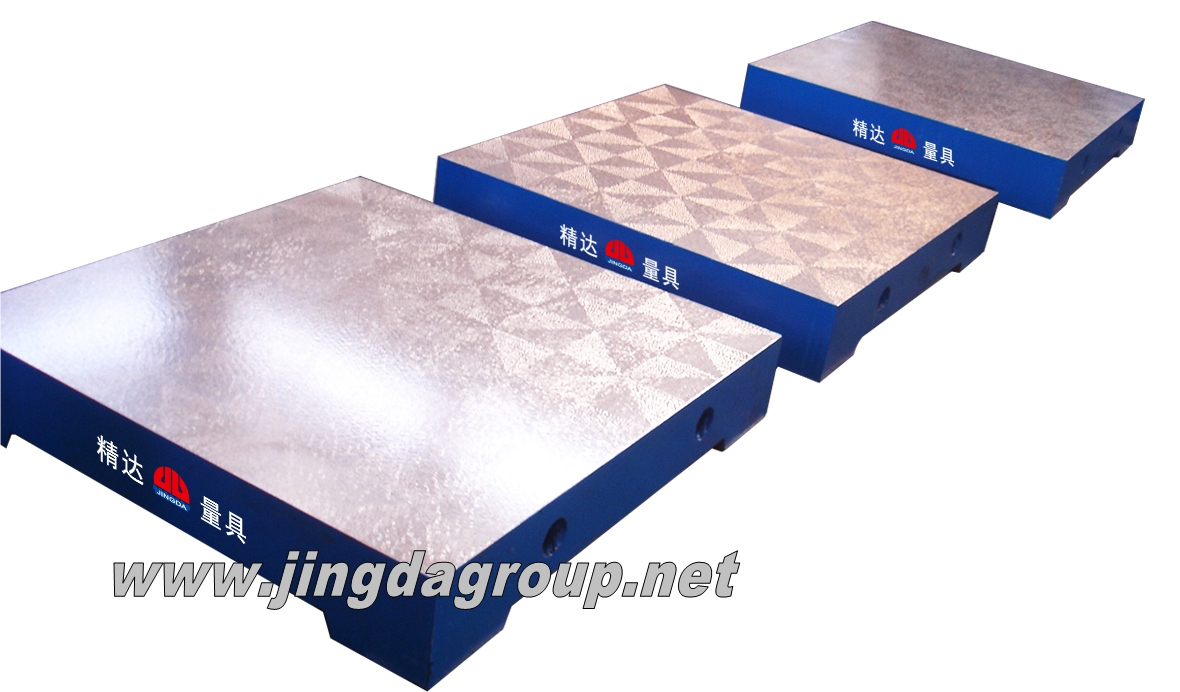

Cast Iron Inspection Surface Plate
This cast iron inspection surface plate provides a precise plane for workpiece testing and drawing. It is manufactured to meet DIN876 Grade 1 flatness accuracy standards.
Technical Specifications
Product Overview
Cast Iron Inspection Surface Plate
This high-precision cast iron surface plate serves as a standard reference plane for testing, layout, and workpiece inspection. Manufactured from high-quality cast iron, it ensures long-term stability and durability for demanding metrology and quality control environments. The surface is precision-machined to meet rigorous flatness standards, providing a reliable foundation for dimensional control and calibration tasks.
Technical Specifications
- Material
- Cast iron HT250 / GG25 / FG250
- Flatness Accuracy
- DIN876 Grade 1
- Available Accessories
- StandLeveling jacksLeveling bolts
- Customization
- Painting color can be requested
- Documentation
- Yes
Precision Data
Precision Grade by Size
| Size (mm) | Grade 0 (μm) | Grade 1 (μm) | Grade 2 (μm) |
|---|---|---|---|
| 100 x 100 | 4 | 8 | 16 |
| 200 x 100 | 5 | 10 | 20 |
| 200 x 200 | 5 | 10 | 20 |
| 300 x 200 | 6 | 12 | 24 |
| 300 x 300 | 6 | 12 | 24 |
