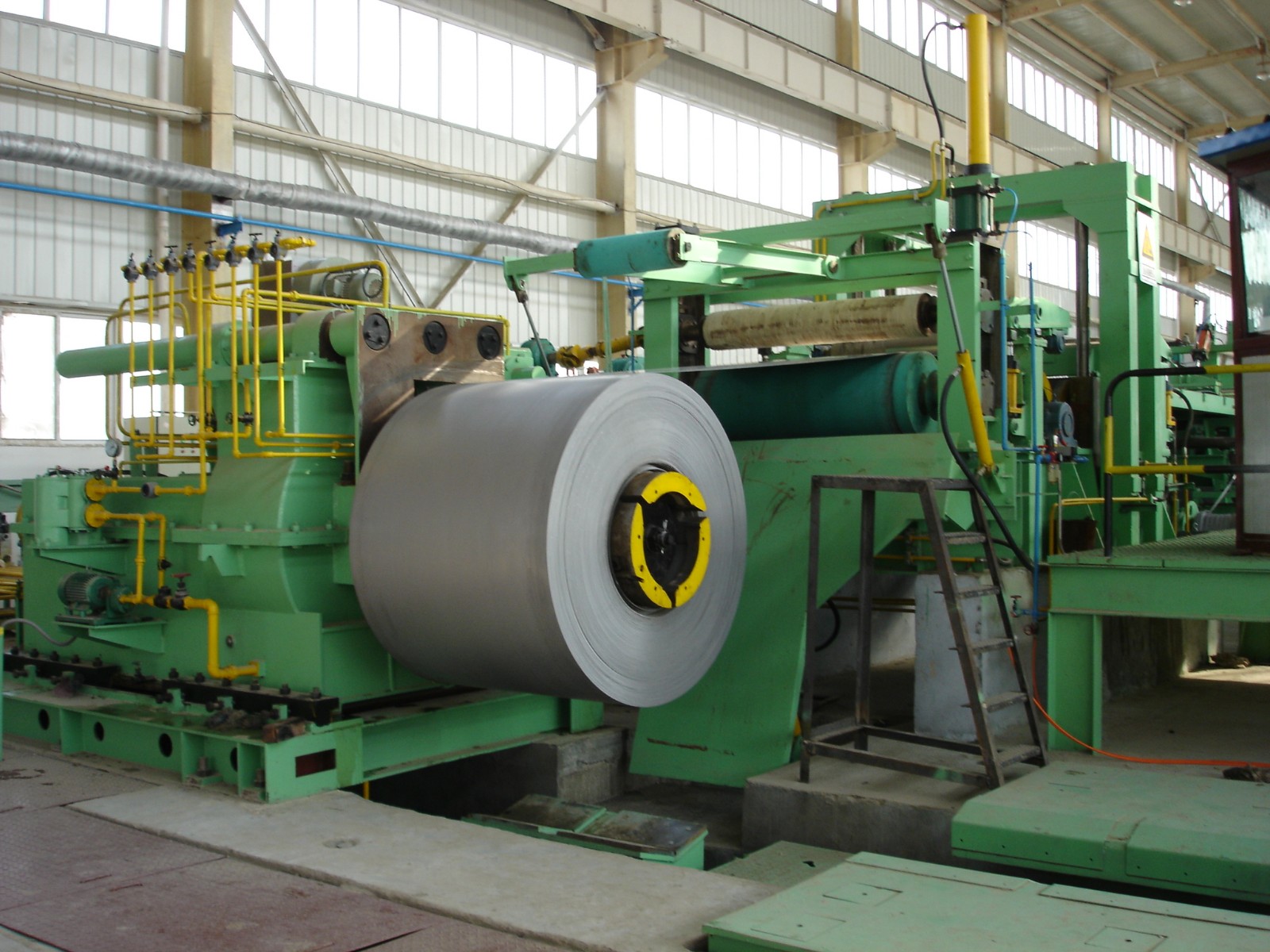

Carbon Steel Push-Pull Pickling Line
This push-pull pickling line is designed with two uncoilers and a six-section pickling tank. It accommodates both thick and thin plates with different coiler designs.
Technical Specifications
Overview
High-Efficiency Pickling Solution
The Carbon Steel Push-Pull Pickling Line is a robust industrial system designed for the continuous surface treatment of steel coils. By utilizing a fully enclosed production process, it ensures environmental compliance and operator safety while maintaining high output. This system features advanced computer-controlled automation, providing stable process parameters and significant economic benefits through reduced labor intensity and low maintenance requirements.
Technical Specifications
Annual Capacity
800,000 tons/year
Max Annual Capacity
Max Coil Weight
30 T
Max Coil Weight
- Compatible Materials
- Low-carbon steelLow-alloy steelNon-oriented silicon steel
- Pickling Medium
- HCl
Performance Metrics
Line Speed
75 mpm
Min Speed
180 mpm
Max Speed
Strip Dimensions
| Parameter | Range |
|---|---|
| Width | 550~1600mm |
| Thickness | 1.8~16mm |
Operational Features
Key Operational Benefits
- Fully enclosed production process
- Acid mist extraction and purification
- Computer automatic control of process parameters
- Low labor intensity
- Stable equipment performance with low maintenance
