Galvanizing and Galvalume Coating Line
This processing line uses hot-dip galvanizing to coat steel strips. It employs a protection gas cycling jetting cooling device and frequency adjusting to cool the strip evenly.
Technical Specifications
Overview
High-Efficiency Coating Solution
This industrial galvanizing and galvalume coating line is engineered for high-volume production of coated steel coils. It utilizes advanced hot-dip processes and precise air knife control to ensure uniform coating thickness and superior surface quality. Designed for reliability and efficiency, the system integrates robust annealing and cooling technologies to meet rigorous manufacturing standards.
Technical Specifications
Annual Production Capacity
80,000 tons/year
Min Capacity
300,000 tons/year
Max Capacity
- Maximum Line Speed
- 200 mpm
- Zinc Coating Weight (Two Sides)
- 600 g/m2
Material Compatibility
Strip Dimensions
| Parameter | Range |
|---|---|
| Strip Width | 550-1350 mm |
| Strip Thickness | 0.15-1.5 mm |
- Compatible Raw Materials
- SPCCSPCDLow-carbon steelLow-silicon steel
Process Features

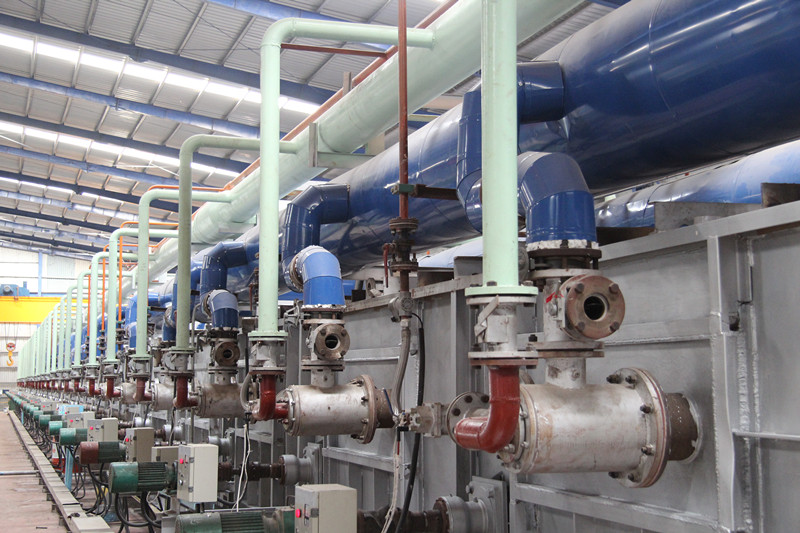

Annealing Furnace Options
- Full radiation pipes (vertical or horizontal)
- NOF (Non-oxidative direct fired furnace)
Key Process Controls
Closed-circuit air knife controlFrequency speed regulationProtection gas cycling jetting coolingHigh-precision drive control
