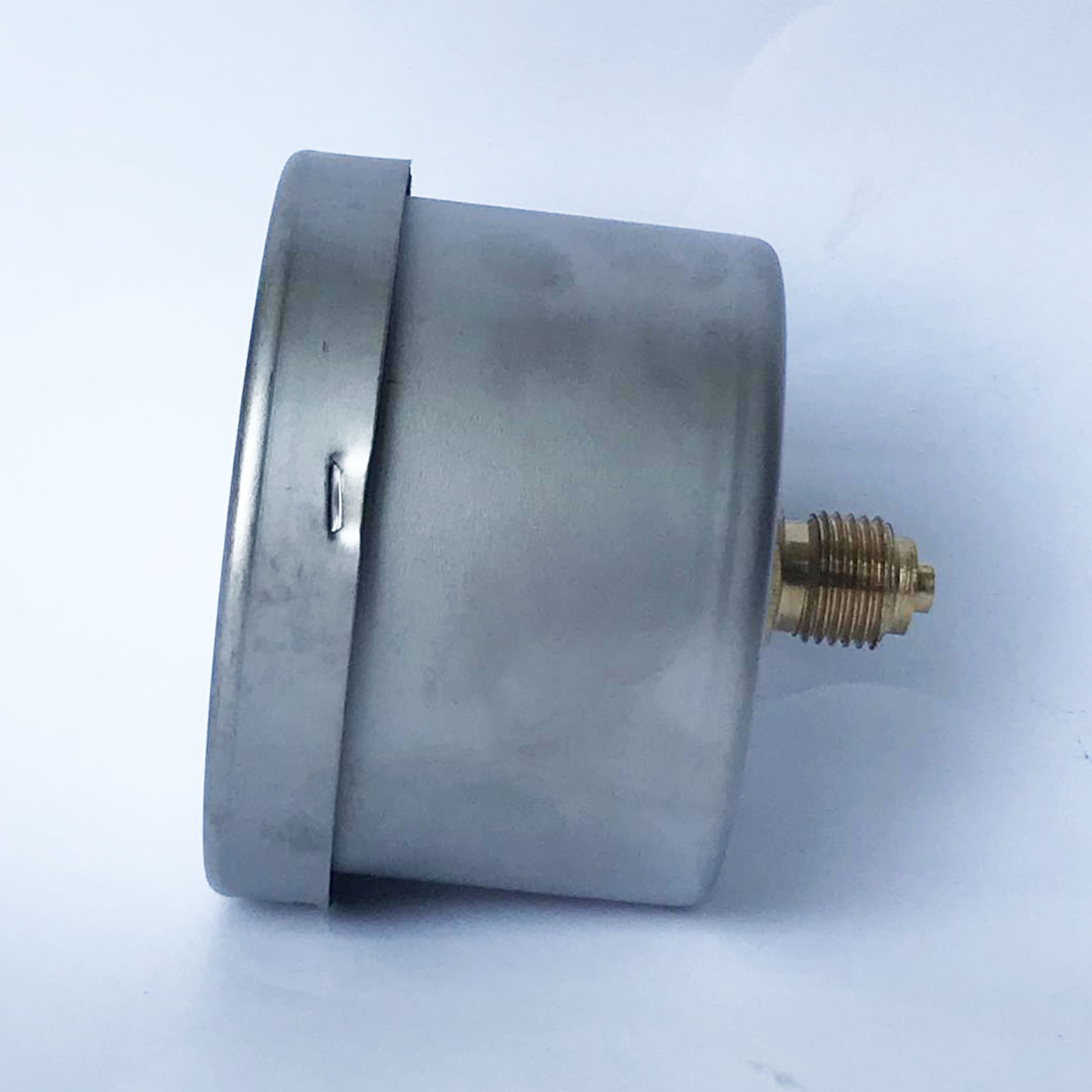

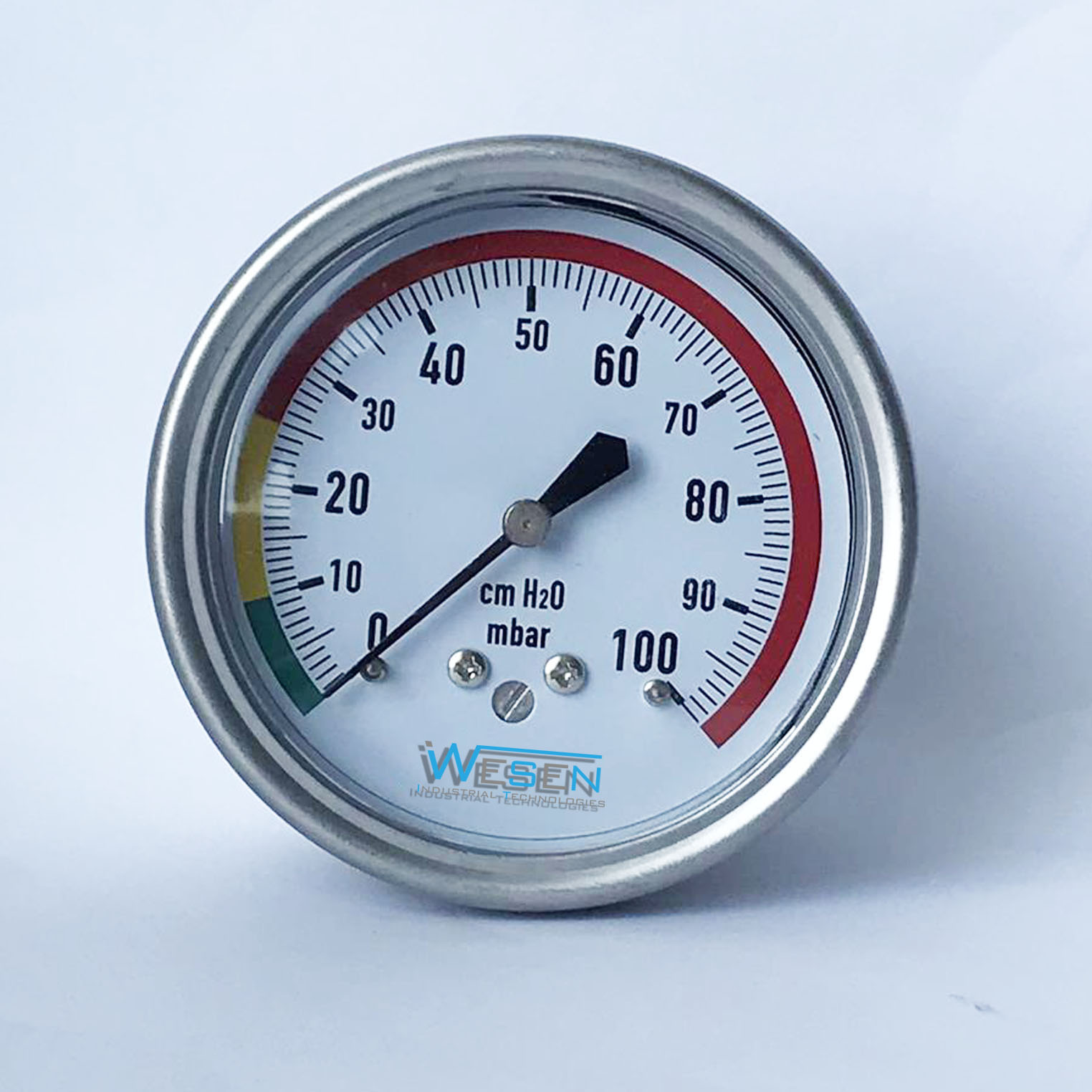

Capsule Pressure Gauge for Low-Pressure Measurement
This capsule pressure gauge is designed for precise measurement of low pressures in various industrial and laboratory applications. It features a robust stainless steel construction and clear dial markings for easy reading.
Technical Specifications
Overview
Precision Low-Pressure Monitoring
This capsule pressure gauge is engineered for high-precision measurement in low-pressure environments, making it an ideal choice for pneumatic systems, HVAC installations, and critical process control applications. Constructed with robust materials such as stainless steel for the housing and high-quality internal components, it ensures long-term durability and resistance to corrosive conditions. The gauge offers versatile configuration options, including various mounting styles and connection threads, to seamlessly integrate into diverse industrial setups.
Technical Specifications
- Pressure Range
- -1 to 1000 bar
- Connection Materials
- SS316SS304Brass
- Bourdon Tube Materials
- SS316Phosphor Bronze
- Fill Liquids
- GlycerinSilicone Oil
Design & Construction
Available Dial Sizes
- 1.5"
- 2"
- 2.5"
- 3.5"
- 4"
- 5"
- 6"
- 8"
- 10"
Mounting Options
Optional Accessories
- Flange
- Bracket
- Case Materials
- SS304SS316Black SteelPlastic
- Window Materials
- GlassTempered GlassSafety GlassPC GlassAcrylic
- Thread Types
- PTNPTG
