Camera Module with FFC Connector
This camera module features a flexible flat cable (FFC) connector and dual screw-driven focus mechanisms with metal brackets. The module integrates electronic components for image capture and focus control.
Technical Specifications
Product Overview
Module VIR213 Camera Unit
The VIR213 is a precision-engineered camera module designed for high-performance imaging applications. It features an integrated flexible flat cable (FFC) connector for reliable connectivity and utilizes dual screw-driven focus mechanisms for enhanced adjustment. This module is built for stability and precision, making it an ideal choice for digital camera systems requiring compact integration.
Electrical Specifications
- Rated Voltage
- 3.2 V
- Operating Voltage Range
- 3.2 - 5.5V
- Winding Resistance
- 20±3Ω
Optical & Mechanical
- Max Effective Aperture
- 8x8mm
- Glass Configuration
- IR 0.3AR 0.212 Pieces
- Thread
- 1

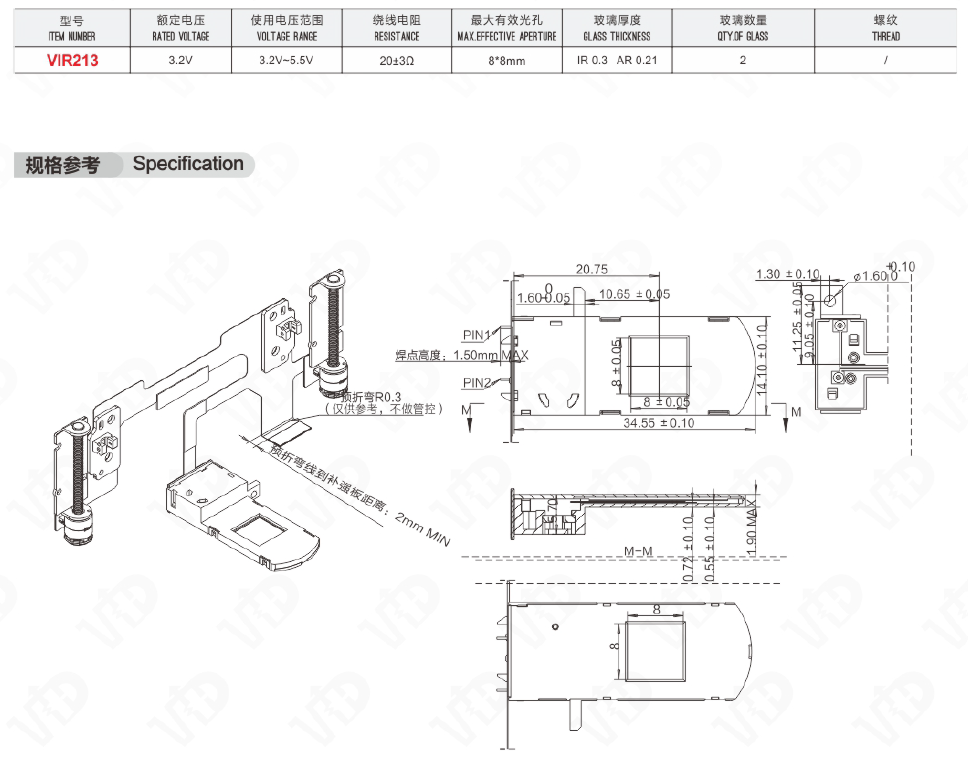

Dimensional Data
Mechanical Constraints
| Parameter | Value |
|---|---|
| Soldering point height | 1.50mm MAX |
| Pre-bending radius | R0.3 |
| Pre-bend to stiffening plate | 2mm MIN |
