Cable Tray Rolling Machine ZT-75 to 600

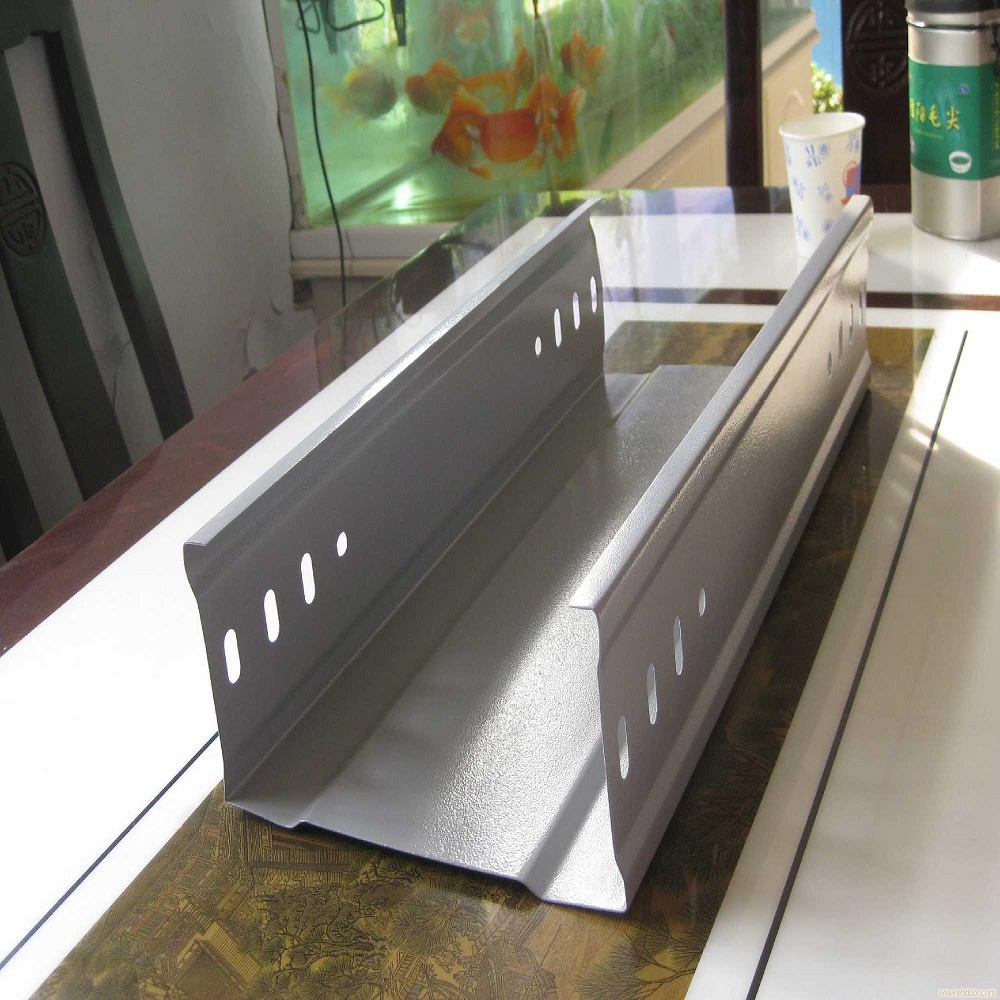

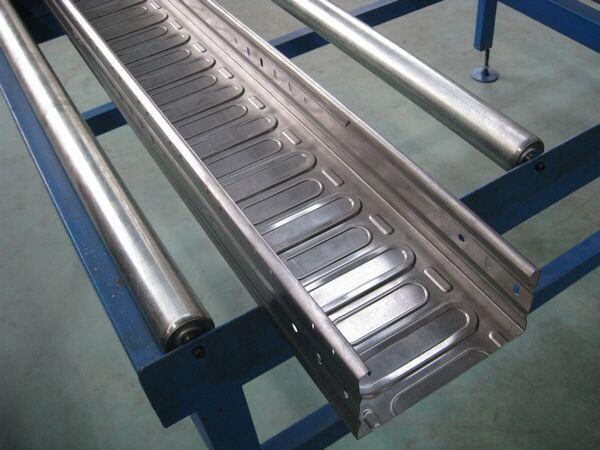

The ZT-75 to 600 fully automatic cable tray rolling machine is designed for producing cable trays. These cable trays are used in various factories and buildings.
Technical Specifications
Product Overview
Fully Automatic Cable Tray Rolling Machine

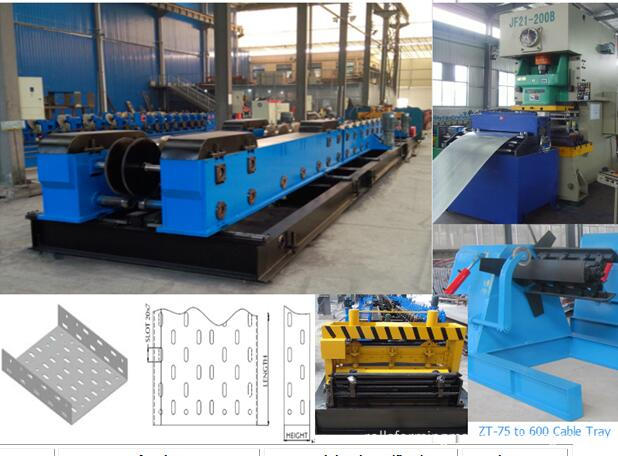

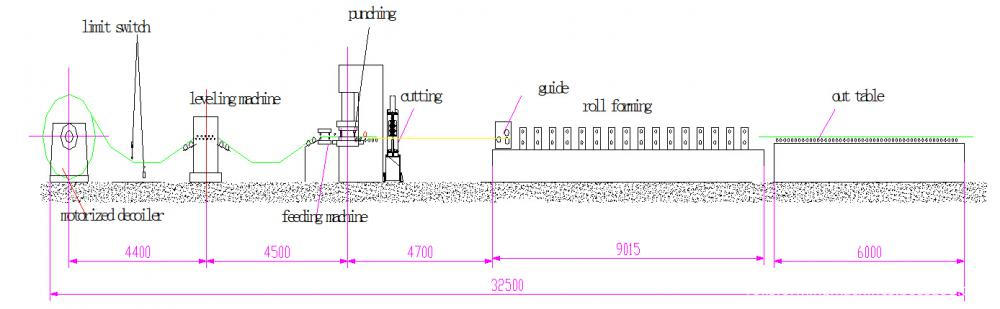

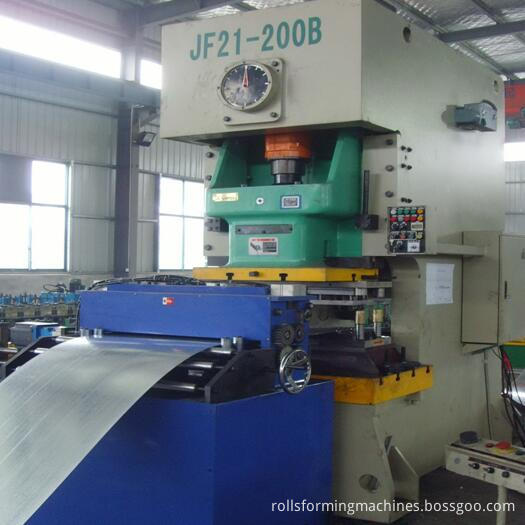

This industrial-grade, fully automatic cable tray rolling machine is designed to deliver high precision and consistent output for manufacturing cable trays ranging from 75mm to 600mm in width. The integrated production line streamlines the entire manufacturing process, encompassing decoiling, leveling, punching, roll forming, and cutting in one efficient sequence. Built with robust components and advanced PLC controls, this system is an ideal solution for factories seeking to optimize production quality while reducing manual labor requirements.
Technical Specifications
Material Specifications
225 mm
Min Material Width
1,020 mm
Max Material Width
1 mm
Min Thickness
2 mm
Max Thickness

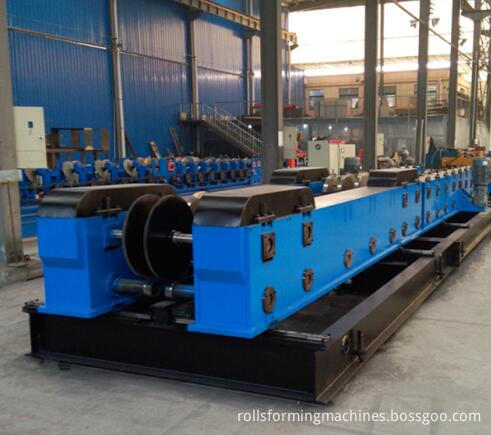

Roll Forming Details
| Feature | Specification |
|---|---|
| Forming Stations | 14 Sets |
| Roller Axis Diameter | 85mm |
| Product Variety | Bridge Frame |
| Cutting Type | Hydraulic |
Decoiler Parameters
- Max Load Capacity: 5 Tons
- Max Coil Diameter: 1500mm
- Inner Coil Diameter: 508mm
- Motor Power: 5.5kW
- Feeding Speed: 0-15m/min
Operational Features
- Key Features
- Fully AutomaticPLC Control SystemTouch Screen OperationServo Motor DrivenEmergency Stop System
