Cable Tray Roll Forming Machine
This cable tray roll forming machine efficiently manufactures cable trays. It uses rollers and forming stations to shape metal sheets into the desired cable tray profile.
Technical Specifications
Product Overview
High-Efficiency Cable Tray Production
This industrial roll forming machine is engineered for the precise and automated manufacturing of cable trays. It utilizes a comprehensive production line, including decoiling, flattening, punching, and forming, to transform metal coils into finished products. With adjustable rollers and interchangeable molds, it offers versatile production capabilities for various cable tray sizes and specifications.
Technical Specifications
Material Width Range
100 mm
Minimum Width
860 mm
Maximum Width
- Steel Thickness
- 2.5 mm
- Continuous Forming Speed
- 15 M/min
- Line Speed
- 2.5-5 M/min
- Compatible Materials
- Mild steelGalvanized steel coil
Operational Details
Operation Modes
AutomaticManual
Process Workflow
- Decoiler
- Flattening
- Feeding & Punching
- Forming
- Cut-to-length
- Collection table
Equipment Components
Core Equipment List
| Component Name |
|---|
| Decoiler |
| ML-900 Flatting Device |
| Servo Feeding System |

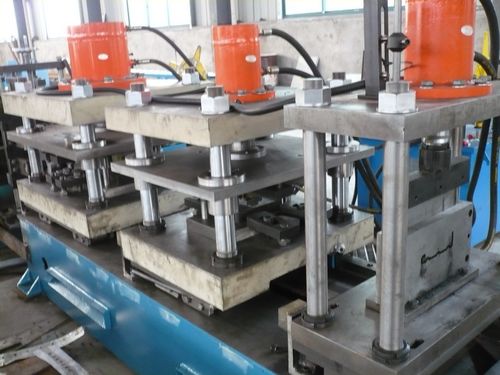

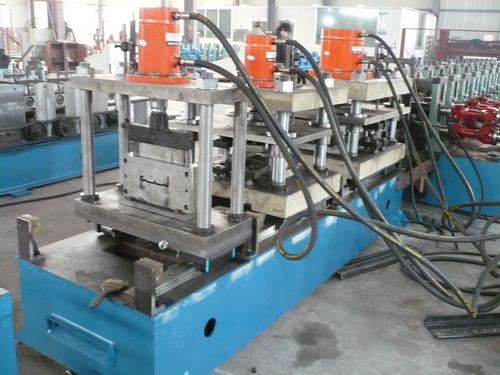

| JF21-200B Punching Machine |

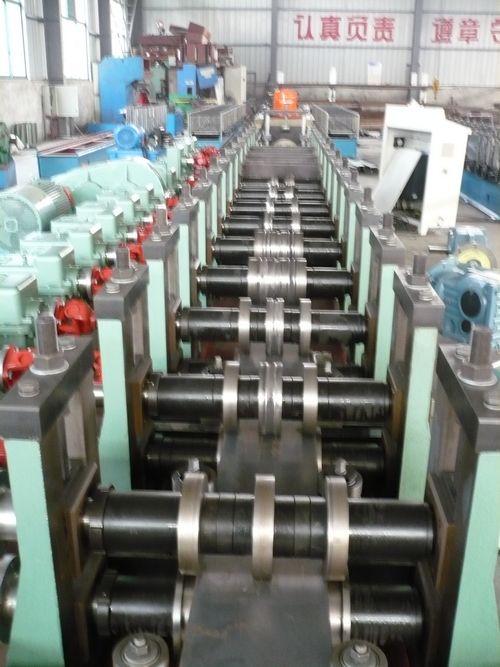

| Forming Machine |
| Cut-to-length Device |
