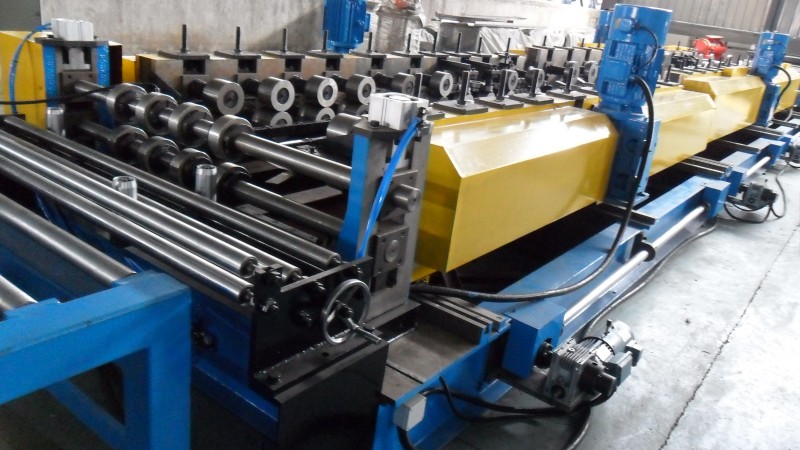

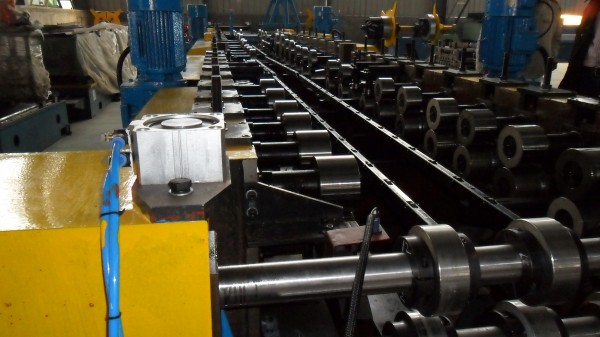

Cable Tray Roll Forming Machine
This cable tray roll forming machine is designed for efficient and precise manufacturing. It shapes metal sheets into cable tray profiles using a series of rollers and forming stations.
Technical Specifications
Overview
High-Efficiency Cable Tray Production
This industrial roll forming machine is engineered for the precise and automated manufacturing of cable trays. Featuring an adjustable design, it allows for the production of various cable tray dimensions by simply replacing punching moulds and adjusting roller distances. The system supports high-volume manufacturing with continuous forming capabilities, ensuring consistent quality and dimensional accuracy for mild and galvanized steel materials.
Technical Specifications
- Material Thickness
- 1.75 mm
- Steel Width Range
- 100mm - 860mm
- Line Speed
- 3.75 M/min
- Continuous Forming Speed
- 12.5 M/min
- Compatible Materials
- Mild steelGalvanized steel coil
Operational Features
Operation Modes
AutomaticManual
Production Flow
- Decoiler
- Flatting
- Feeding & Punching
- Forming
- Cut-to-length
- Collection
Key Components
Equipment Breakdown
| Component |
|---|
| Decoiler |

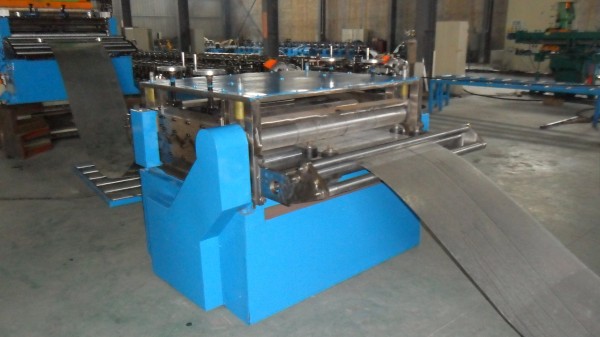

| ML-900 Flatting Device |
| Servo Feeding |
| JF21-200B Punching |
| Forming Machine |
| Cut-to-length Device |
