C-Frame High Precision Power Press
The guide rail is placed in the middle of the slider, ensuring it does not bear eccentric load. The disc brake motor automatically adjusts the mold height, and the speed of the slider can be adjusted as desired.
Technical Specifications
Overview
FCP Series High Precision Power Press
The FCP Series C-Frame Single Crank Power Press is engineered for high-volume, precision metal forming operations including blanking, piercing, bending, and forming. Built with a rigid C-frame construction to ensure minimal deflection and high accuracy, this machine features a single crank mechanism for efficient power transmission and consistent performance. Designed for industrial reliability, it includes advanced safety features, adjustable stroke length, and variable speed control to meet diverse manufacturing requirements.
Technical Specifications
Capacity Range
400 KN
Minimum Capacity
3,000 KN
Maximum Capacity
Machine Performance Data
| Parameter | Range |
|---|---|
| Stroke Length | 60 - 250 mm |
| Die Height | 270 - 550 mm |
| Slide Adjustment | 50 - 120 mm |
| Main Motor Power | 2.2 - 30 KW |
| Air Pressure Required | 5 Kg/cm² |
Accuracy Standard
JIS-class1

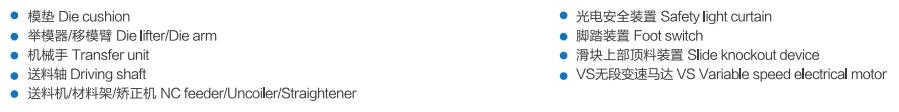

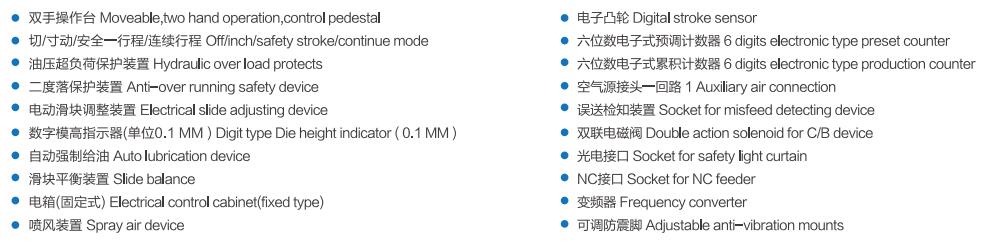

Features & Equipment
Automation & Control Components
- NC Feeder/Uncoiler/Straightener
- Frequency Converter
- Digital Stroke Sensor
- 6-Digit Preset Counter
- 6-Digit Production Counter
- Slide Knockout Device
- Auto Lubrication System
Operational Modes
- Off
- Inch
- Safety Stroke
- Continue Mode
- One Cycle Mode
- Safety & Protection Systems
- Hydraulic Overload ProtectionAnti-over running deviceSafety Light CurtainEmergency StopFoot Switch
