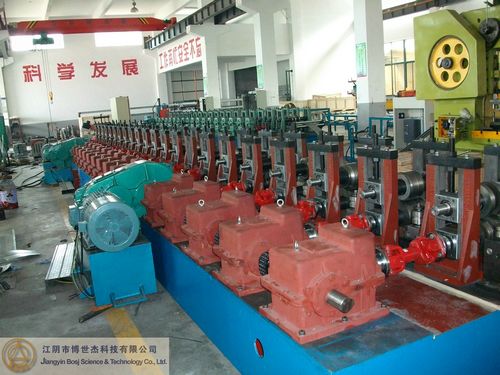

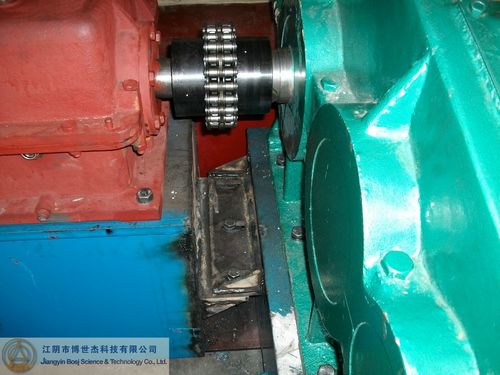

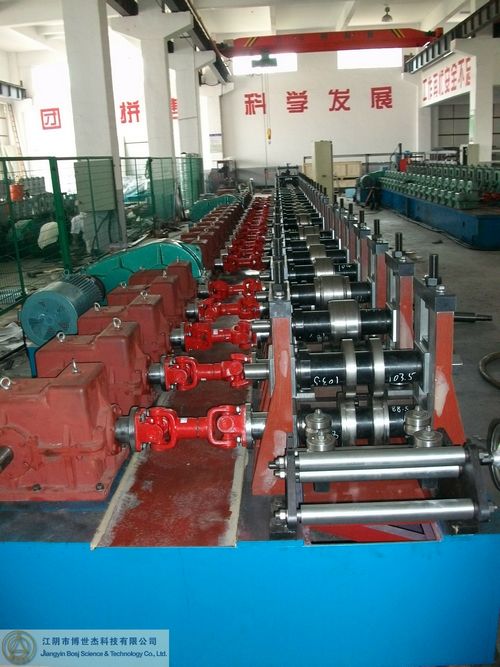

C Channel Roll Forming Machine
This C channel roll forming machine is a metal forming system designed for manufacturing C-shaped profiles. It utilizes rollers to gradually shape the metal, providing consistent dimensions and quality.
Technical Specifications
Overview
High-Efficiency C Channel Production
This C channel roll forming machine is a robust industrial solution designed for the continuous manufacturing of C-shaped profiles from metal coils. The system integrates a complete process flow, including de-coiling, guiding, precision roll forming, and automated positioning and cutting. Engineered for consistency and high throughput, it is an ideal choice for structural component production in construction and industrial applications.
Technical Specifications
- Coil Thickness
- 2.5 mm
- Line Speed
- 5-10 m/min (adjustable)
- Total Power
- 25 KW
Operation & Dimensions
- Operation Area
- 28m x 3m
Process Flow
Production Process
- De-coiling
- Guiding
- Roll Forming
- Positioning and Cutting
- Collection
