Brushless Synchronous Alternator
This brushless alternator is designed for reliable power generation. It features a robust construction and brushless excitation system, ensuring stable performance and long service life.
Technical Specifications
Overview
High-Performance Brushless Alternator
This brushless synchronous alternator is engineered for reliable power generation across various industrial applications. It features a robust construction with Class H insulation and a maintenance-free brushless excitation system that eliminates the need for brushes and slip rings. Designed for both prime and standby power, it delivers stable output with low harmonic distortion and efficient cooling for a long service life.
Technical Performance
Key Performance Metrics
1,500 rpm
Rated Speed (50Hz)
1,800 rpm
Rated Speed (60Hz)
125 °C
Temp Rise
Insulation Class
Class H
- Excitation System
- Brushless

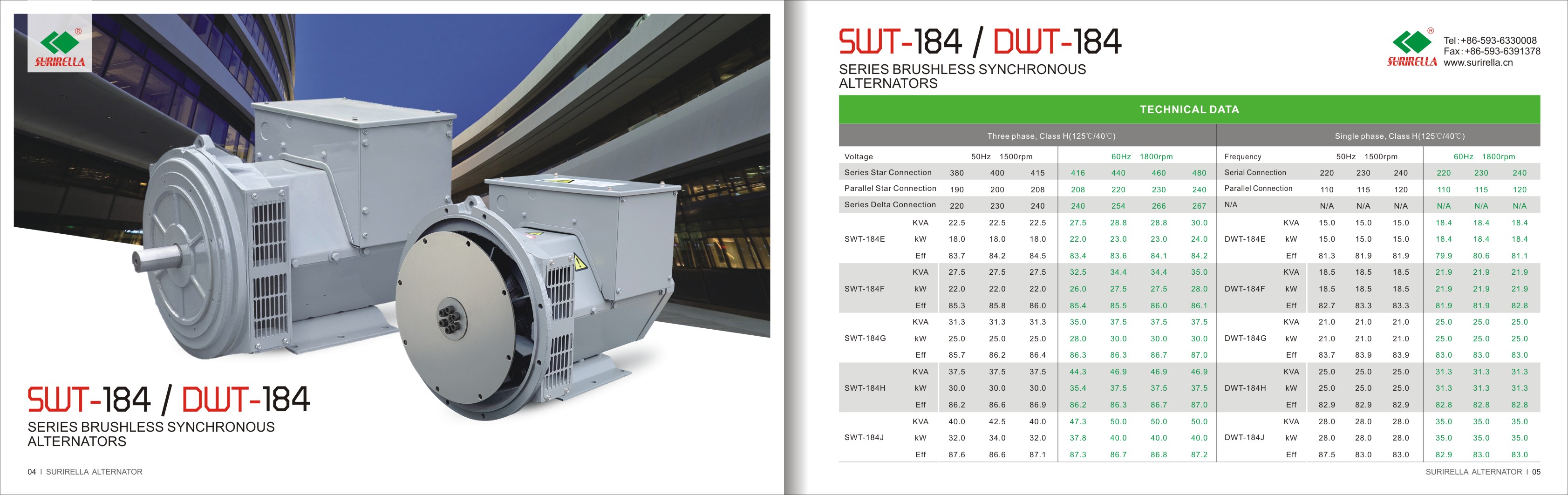

Three-Phase Ratings (50Hz)
Three-Phase 50Hz / 1500rpm Data
| Model | Rating (kVA) | Power (kW) | Efficiency (%) |
|---|---|---|---|
| 184E | 22.5 | 18 | 84.5 |
| 184F | 27.5 | 22 | 86 |
| 184G | 31.3 | 25 | 86.4 |
| 184H | 37.5 | 30 | 86.9 |
| 184J | 42.5 | 34 | 87.1 |
Single-Phase Ratings (50Hz)
Single-Phase 50Hz / 1500rpm Data
| Model | Rating (kVA) | Power (kW) | Efficiency (%) |
|---|---|---|---|
| 184E | 15 | 15 | 81.9 |
| 184F | 18.5 | 18.5 | 83.3 |
| 184G | 21 | 21 | 83.9 |
| 184H | 25 | 25 | 82.9 |
| 184J | 28 | 28 | 83 |

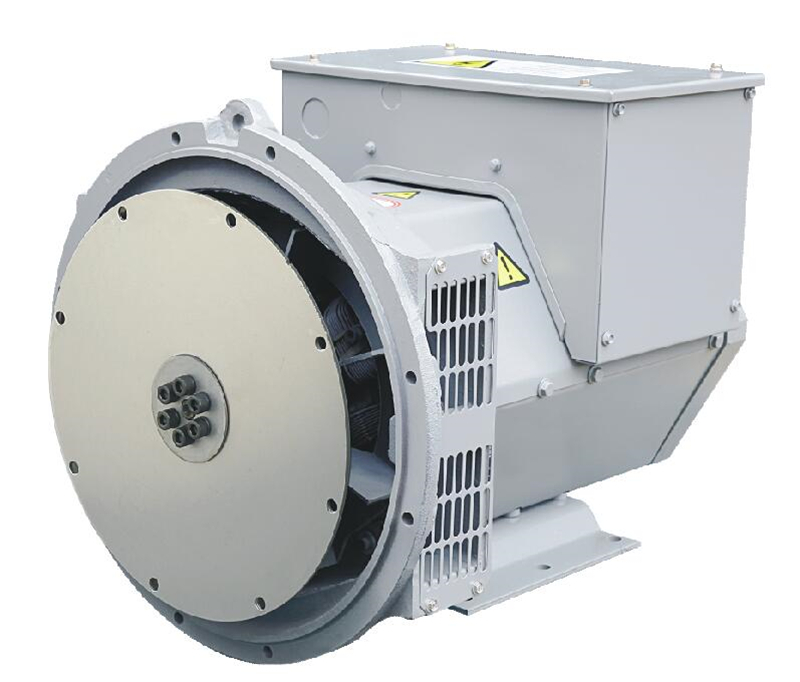

Physical Characteristics
Construction Details
- Metallic housing with ventilation grills
- Integrated terminal box for electrical connections
- Mounting base for secure installation
- Rotating assembly with multiple poles
- Stator winding for AC power generation
- Bearing Configurations
- Single BearingDouble Bearing
Logistics
Shipping Details (Standard Models)
| Model | Net Weight (kg) | Gross Weight (kg) | Dimensions (cm) |
|---|---|---|---|
| 184E | 120 | 133 | 84×59×75 |
| 184F | 150 | 156 | 84×59×75 |
| 184G | 156 | 172 | 84×59×75 |
| 184H | 216 | 226 | 85×55×85 |
| 184J | 226 | 236 | 85×55×85 |
