Technical Specifications
Product Overview

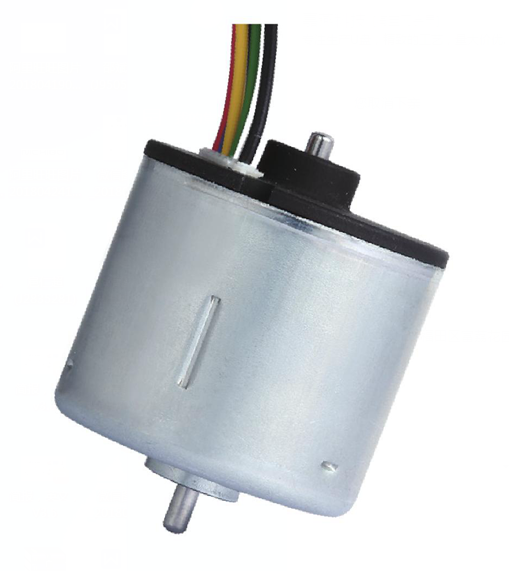

High-Efficiency Brushless DC Motor
This compact brushless DC (BLDC) motor is precision-engineered for hair dryer applications, offering a blend of high efficiency and long operational lifespan. Featuring a robust metal cylindrical housing and dual-ended shaft design, it provides reliable performance for personal care appliances. The unit is optimized for integration with standard control systems, utilizing a clear three-wire configuration.

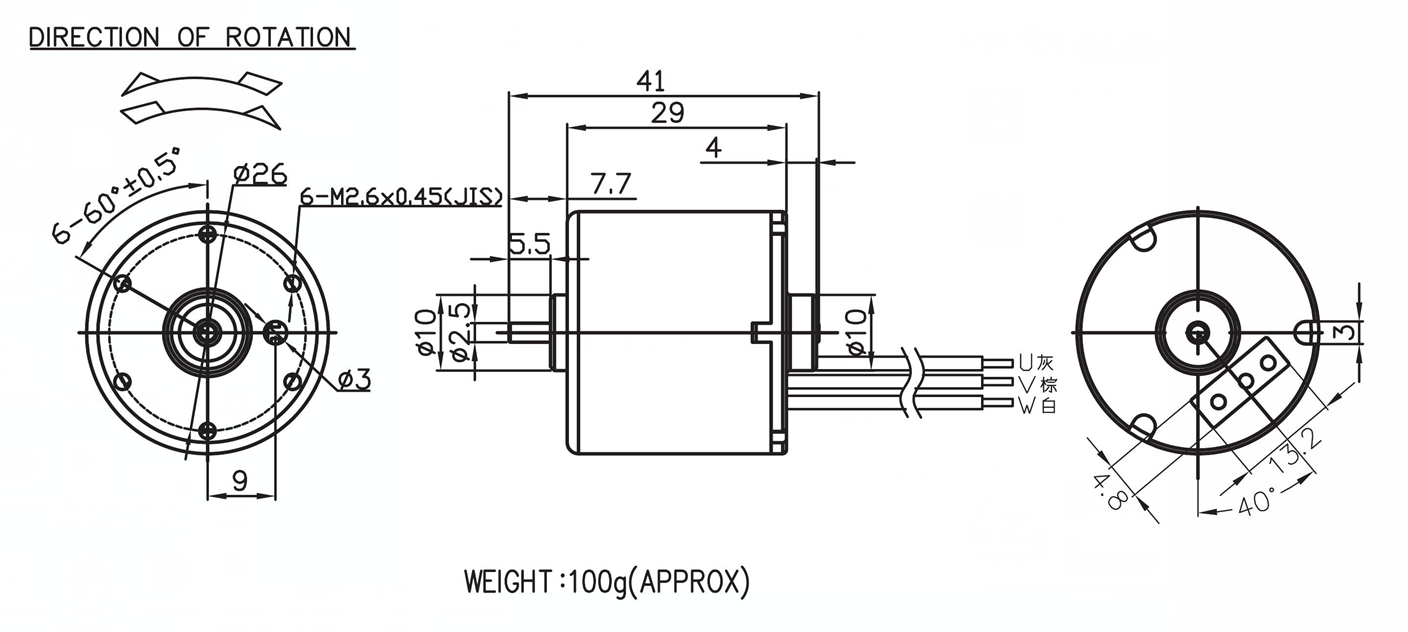

Physical Dimensions
Dimensions & Weight
| Feature | Measurement |
|---|---|
| Total Length | 41 mm |
| Body Length | 29 mm |
| Motor Diameter | 26 mm |
| Shaft Diameter | 2.5 mm |
| Approximate Weight | 100 g |
- Mounting Specifications
- M2.6x0.45 (JIS) screwsFront flange 7.7mm
Electrical & Connectivity
Wiring Connections
- U Phase: Gray
- V Phase: Brown
- W Phase: White
Performance Data
Available Models
BLDC3229B0W0 (24.0V)BLDC3229B1W2 (12.0V)
