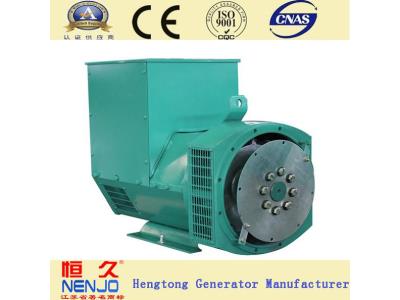

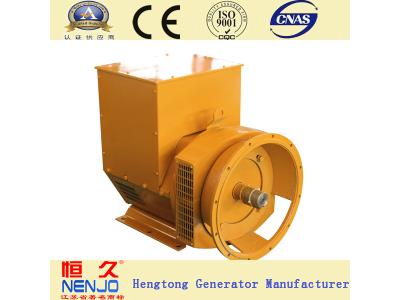

Brushless AC Generator Alternator
This brushless AC generator alternator is designed for power generation applications. It features robust construction suitable for use in power-generating sets and accessories.
Technical Specifications
Product Overview
Reliable Power Generation Solution
This brushless AC generator alternator is engineered for consistent performance in demanding power generation applications. It features a robust 3-phase, 4-wire design with self-exciting, brushless technology and automatic voltage regulation for steady output. Built to international standards, this unit offers easy installation and maintenance, making it an ideal choice for reliable industrial or standby power systems.
Technical Specifications
Prime Power
20 KW
Prime Power
25 kva
Apparent Power
Electrical Configuration
| Parameter | Specification |
|---|---|
| Voltage Range | 120-690V |
| Phase | 3 Phase |
| Wiring | 4 Wires |
| Exciter Type | Brushless, Self-exciting |
| Voltage Regulation | ±0.5% |
Performance Standards
- Telephone Influence Factor (TIF) ≤50
- THF ≤2%
- Transient State Voltage -15% to +20%
- 2/3 Pitch winding standard
Build & Durability
- Construction Details
- Single BearingDynamically Balanced RotorSealed-for-life BearingsIP23 Protection Grade
Compliance & Certification
Manufacturing Standards
ISO9001GB755BS5000#3VDE0530NEMA MG1-22IEC34CSA C22-100AS1359
Commercial Terms
Warranty and Logistics
| Category | Details |
|---|---|
| Delivery Time | Less than 25 days |
| Warranty | 15 Months or 1,200 hours |
| Minimum Order | 2 Sets |
| Supply Ability | 1000 Sets per month |
