Technical Specifications
Product Overview

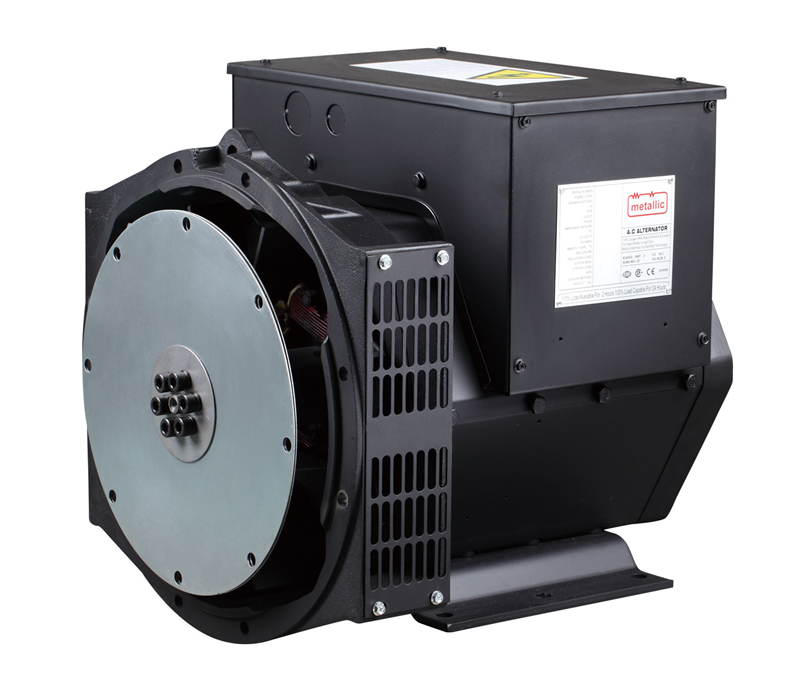

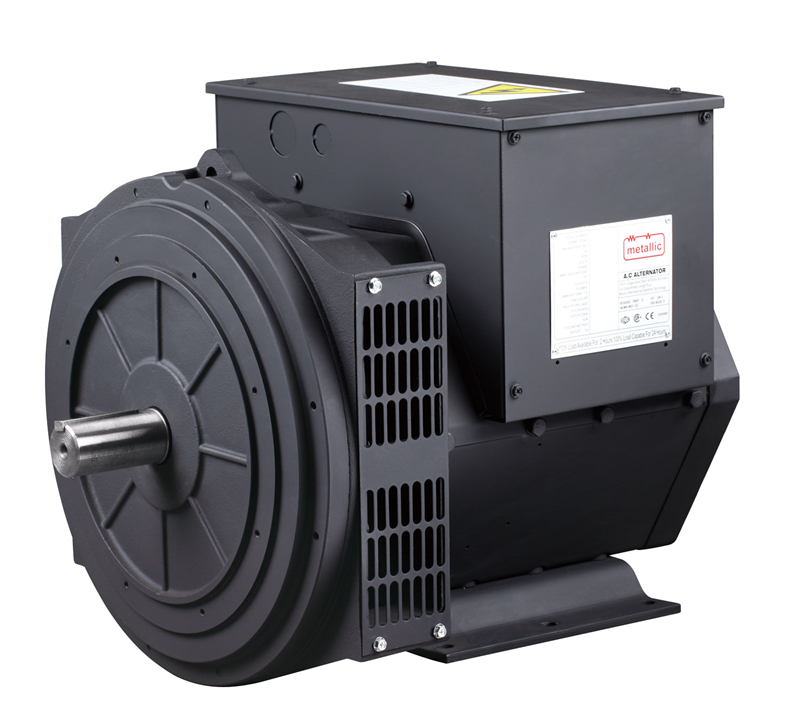

Industrial Brushless Synchronous Alternator
This series of brushless synchronous alternators is engineered for reliable single and three-phase power generation in demanding industrial environments. Designed for continuous operation, these units are capable of maintaining a 100% load for 24 hours and can handle an 110% load for up to 2 hours. With Class H insulation and robust metallic construction, they provide stable voltage output and efficient cooling for a wide range of power applications.
Performance Highlights
Key Performance Metrics
100 %
Continuous Load Capacity
24 h
Continuous Run Time
110 %
Peak Load (2h)
Technical Specifications
Insulation Class
Class H (125°C/40°C)
Operating Frequencies
- 50Hz (1500rpm)
- 60Hz (1800rpm)
- Three-Phase Connection Types
- Series StarParallel StarSeries Delta

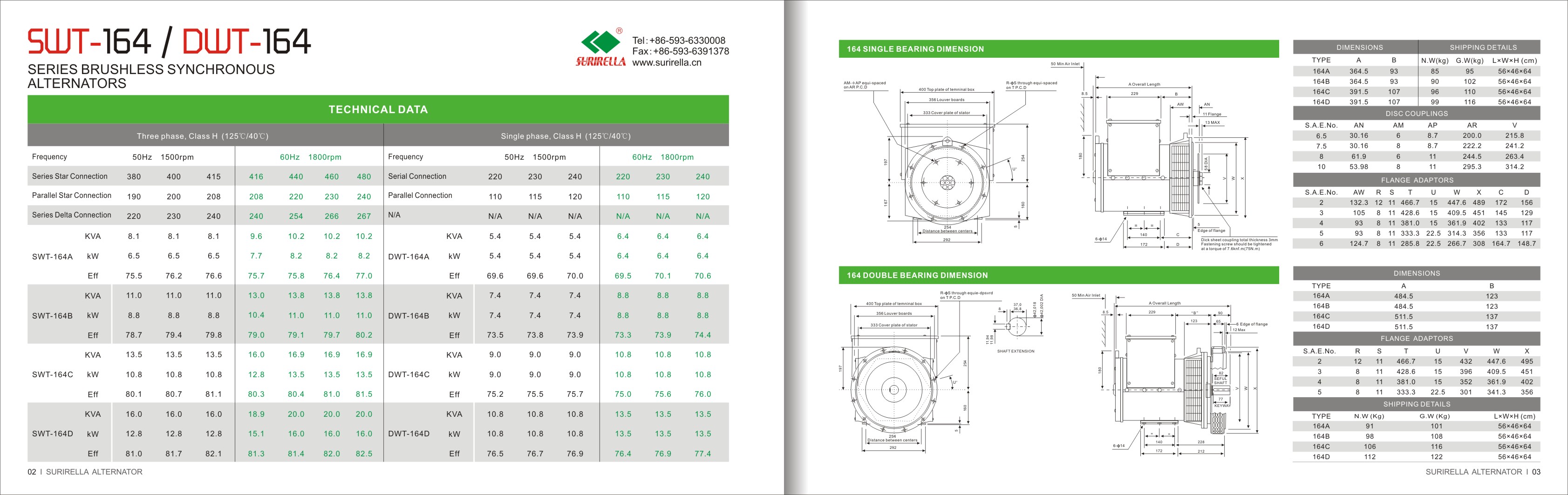

Model Performance Data
Three-Phase Performance (50Hz / 1500rpm)
| Model | Rating (kVA) | Power (kW) | Efficiency (%) |
|---|---|---|---|
| 164A | 8.1 | 6.5 | 75.5 |
| 164B | 11 | 8.8 | 78.7 |
| 164C | 13.5 | 10.8 | 80.1 |
| 164D | 16 | 12.8 | 81 |
Physical & Shipping
- Shipping Box Dimensions
- 56 × 46 × 64 cm
- Net Weight Range
- 85kg - 112kg
Construction
Mechanical Features
- Single and Double Bearing options
- Disc Couplings
- Flange Adaptors (SAE No. 2, 3, 4, 5, 6)
- Integrated AVR
- Efficient Cooling Louvers
