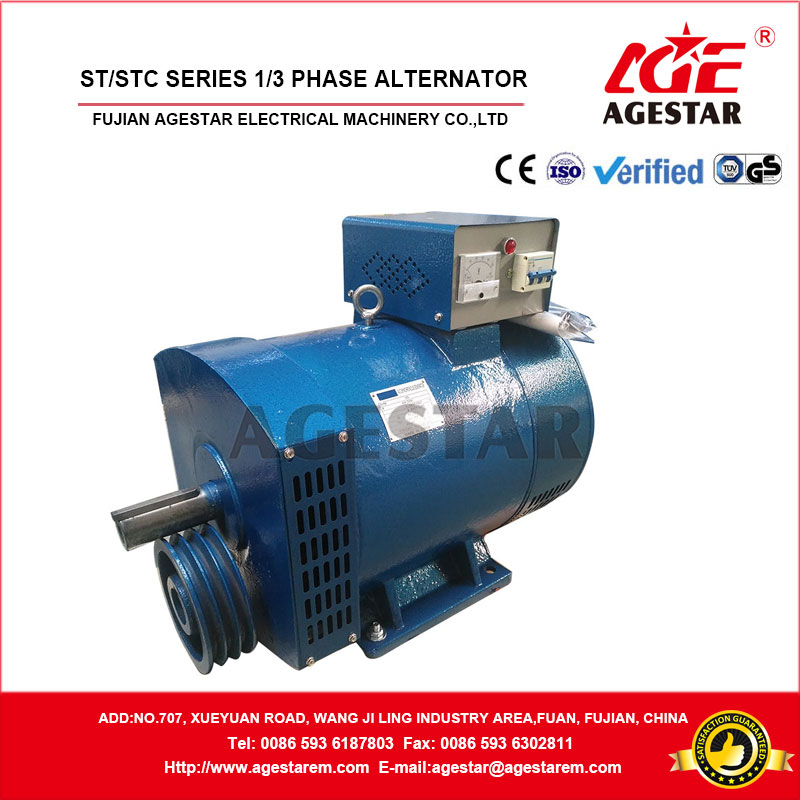

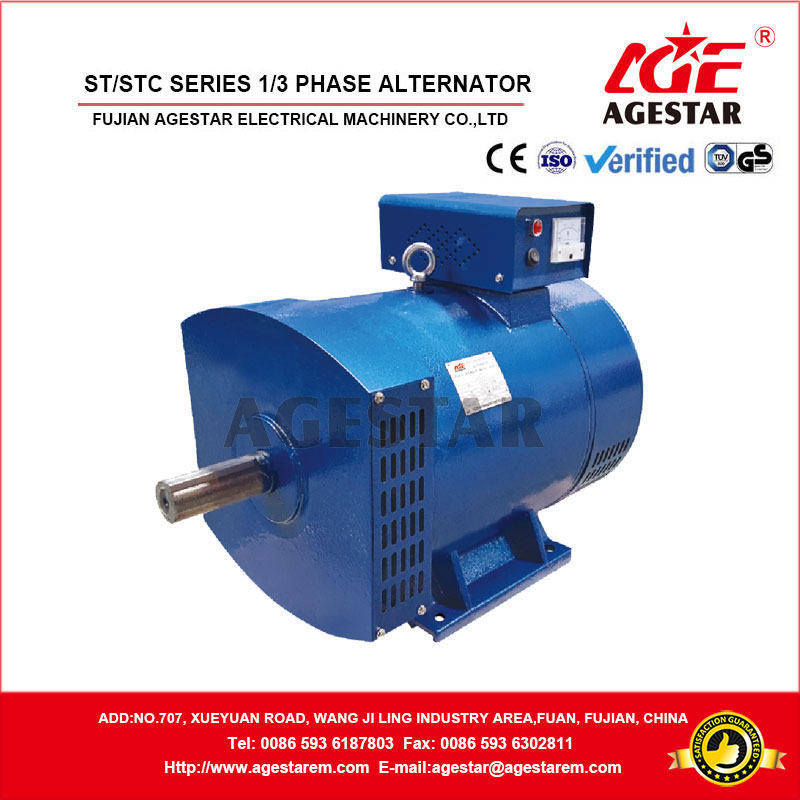

Brush Alternator for Power Generation
This brush alternator is designed for power generation applications. It features a brush-type excitation system suitable for both single-phase and three-phase power output.
Technical Specifications
Product Overview
Reliable Power Generation Solution
The STC Series Synchronous Alternator is designed for diverse electric power requirements, serving towns, villages, farming, construction, and remote areas. Featuring a drip-proof, brush-type construction with a rotary field and harmonic excitation system, this unit ensures ease of operation and simple maintenance. It is highly versatile, capable of functioning as a primary power source or as a standby unit for emergency purposes.
Electrical Specifications
- Rated Line Voltage
- 400 V
- Phase Voltage
- 230 V
- Frequency
- 50 Hz
- Power Factor
- 0.8
- Connection Type
- Three-phase four-wire (star connection with single neutral point)
Performance & Operation
- Voltage Regulation
- Maintains constant voltage within 0-100% load variation and 3% prime mover revolution change
- Rotation Direction
- Clockwise or counter-clockwise
Construction & Design
Design Features
- Drip-proof construction
- Rotary field system
- Harmonic excitation system
- Housing Material
- Cast iron
Certifications
Compliance Standards
CEISOGSTUV Verified
