Bronze Storm Valve
This bronze storm valve is designed for marine applications. It comes in sizes ranging from 5K50-200 to 10K50-200.
Technical Specifications
Product Overview
Bronze Marine Storm Valves
These high-quality bronze storm valves are designed specifically for marine applications in accordance with JIS standards. Engineered for durability and reliability, they feature robust construction suitable for demanding maritime environments. Available in a variety of configurations including vertical and angle types, these valves are built to withstand significant pressure while providing precise flow control.
Technical Specifications
Body Test Pressure
0.5 MPa
Test Pressure
5 Kgf/cm2
Test Pressure
- Material
- Bronze BodyBronze BonnetNBR SeatStainless Steel DiscBrass Stem
- Design Standards
- JIS F 7400JIS B 2220-5KJIS B 2220-10K
Available Models
Storm Valve Series

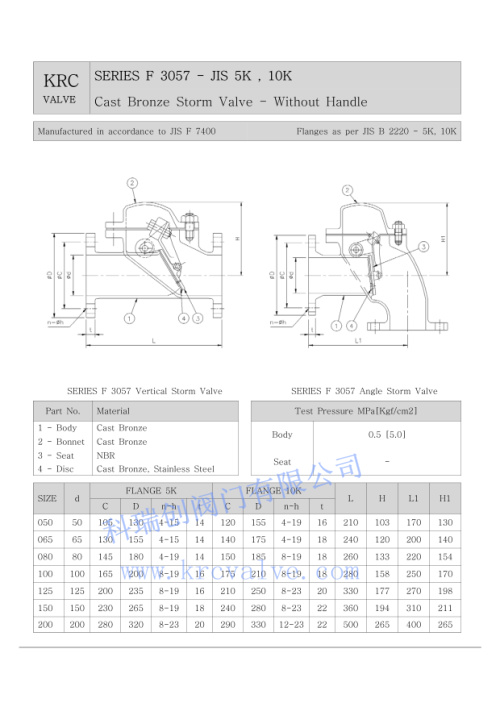

- Series F 3057 (Vertical & Angle)
- Series F 3059 (Vertical & Angle)
Flange Ratings
JIS 5KJIS 10K
- Size Range
- 50mm - 200mm
