Bronze Self-Closing Gate Valve Head for Short Sounding Pipe
This is a self-closing gate valve head designed for short sounding pipes. The valve is made of bronze with a steel spring.
Technical Specifications
Product Overview
Bronze Self-Closing Gate Valve Head
This self-closing gate valve head is specifically engineered for short sounding pipes in marine applications. Manufactured in accordance with JIS F 7400 standards, it features a robust bronze construction for the body, disc, and lever, ensuring durability in harsh maritime environments. The design includes a reliable steel spring mechanism to facilitate effective self-closing functionality.
Technical Specifications
Test Pressure (Body)
0.3 MPa
Test Pressure
- Materials
- Bronze BodyBronze DiscBronze LeverSteel Spring
- Standard
- JIS F 7400
Dimensions & Sizing
Available Sizes
- 40
- 50
- 65
- 80
Dimensional Data

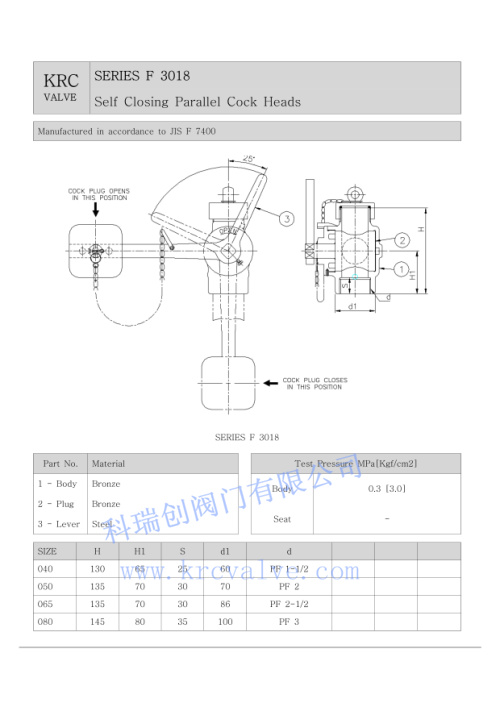

| Size | d1 | d2 | a3 | H1 | L |
|---|---|---|---|---|---|
| 40 | 58 | 35 | 60 | 109 | 54 |
| 50 | 70 | 50 | 75 | 119 | 60 |
| 65 | 85 | 50 | 75 | 119 | 65 |
| 80 | 100 | 50 | 75 | 119 | 70 |
