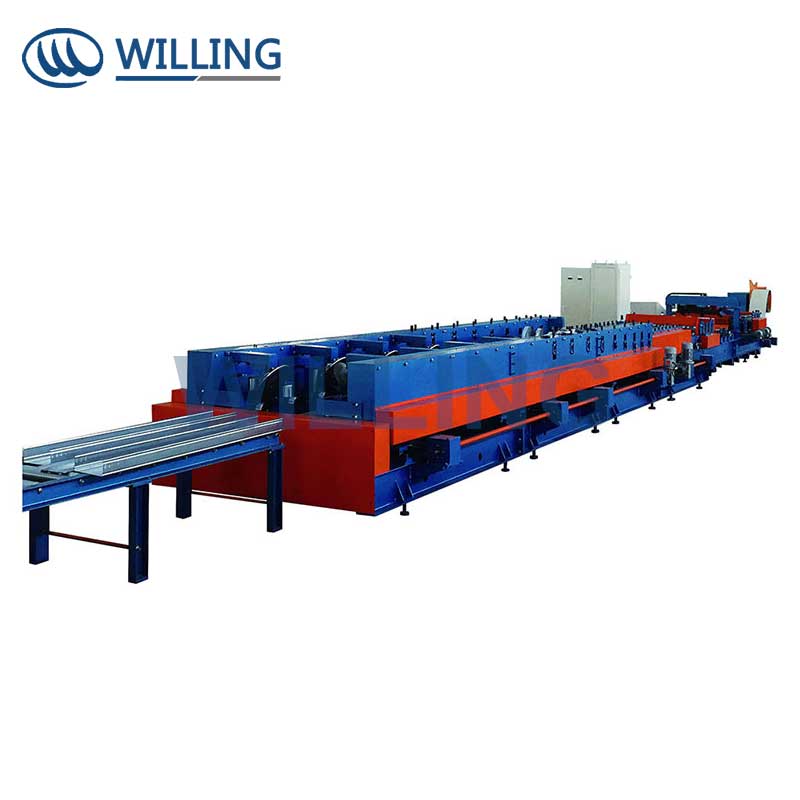

Bridge Steel Cable Tray Roll Forming Machine
This roll forming machine is designed for manufacturing bridge steel cable trays. It utilizes a series of shaped rollers to progressively form the steel into the desired cable tray profile.
Technical Specifications
Overview
High-Speed Cable Tray Production
This automated roll forming machine is engineered for the high-volume production of bridge steel cable trays with exceptional precision. Featuring a robust steel frame and multiple forming stations, it ensures consistent quality and dimensional accuracy for industrial applications. The system integrates advanced PLC controls and high safety standards to streamline manufacturing processes in building material shops and construction facilities.
Performance Metrics
Key Performance Metrics
15 m/min
Max Production Speed
10 T
Machine Weight
1 Year
Warranty Period
Technical Specifications
Available Feeding Widths
- 1220mm
- 1250mm
- 1200mm
- 1000mm
- 915mm
- 900mm
- Rolling Thickness
- 1 mm
- Voltage
- 380V/220V
- Dimensions (L*W*H)
- 7500*1700*1600 mm
Components & Construction
System Features

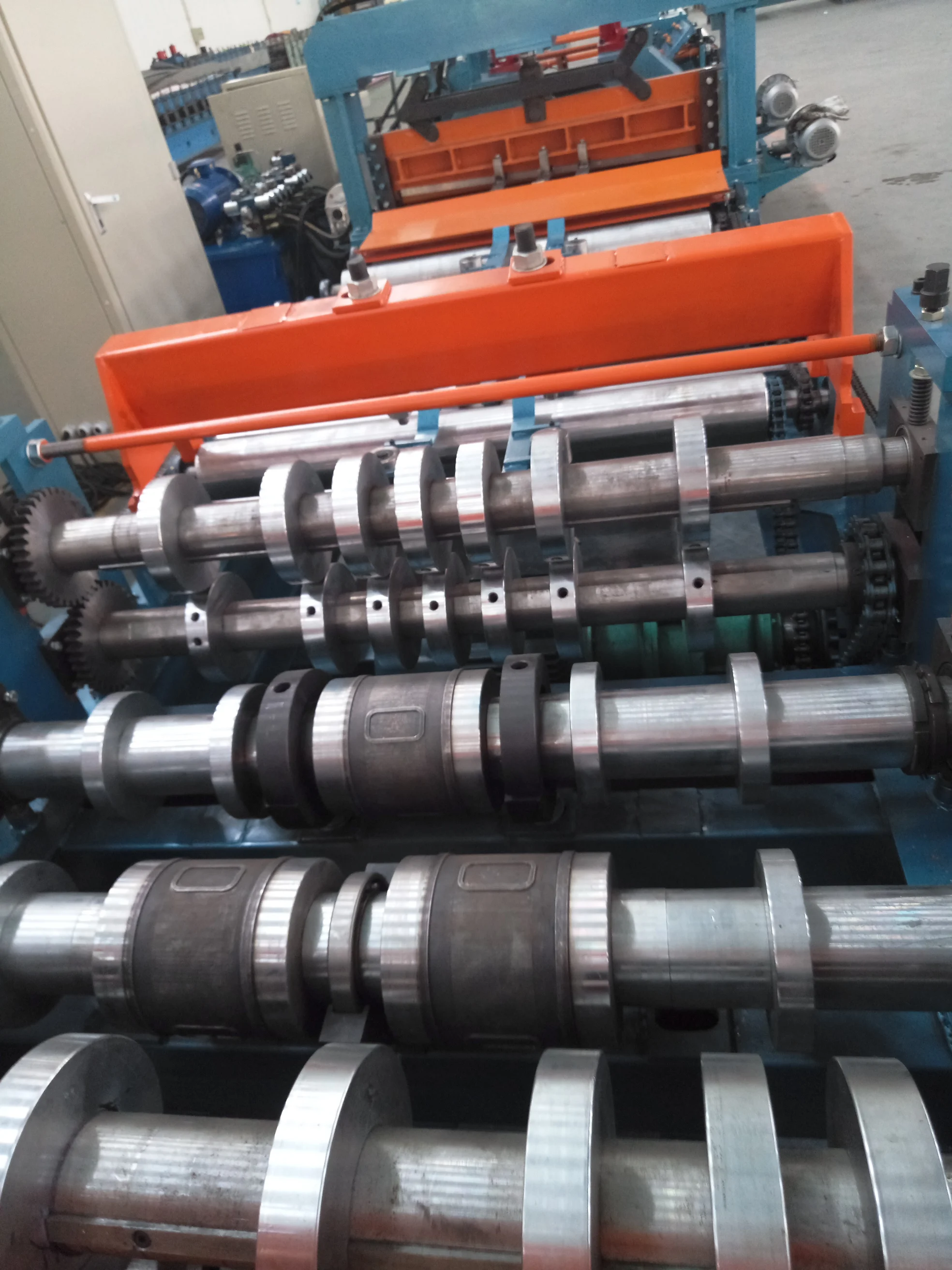

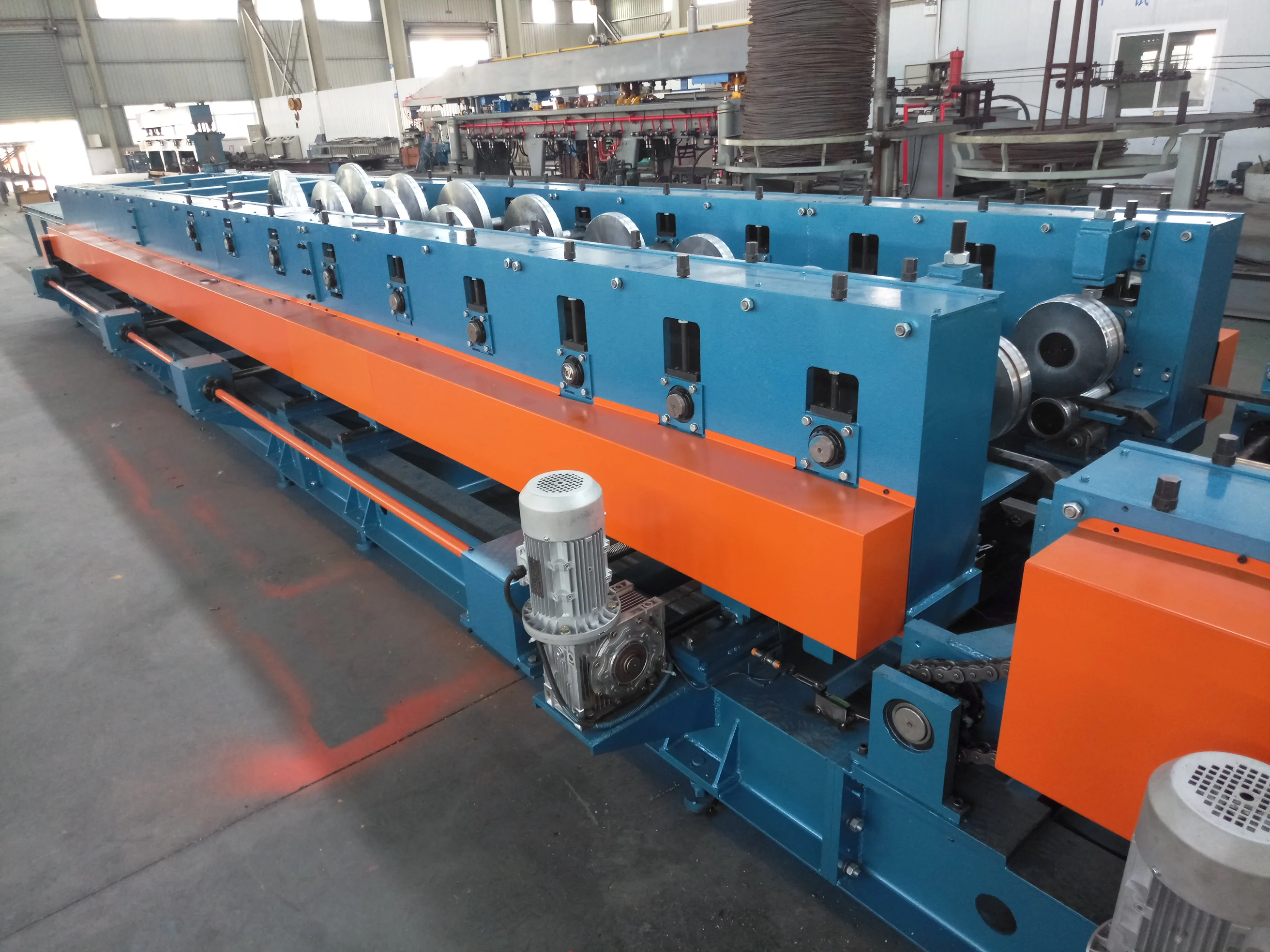

- Multiple forming stations with hardened steel rollers
- Decoiler for metal strip feeding
- Straightening/Leveling unit

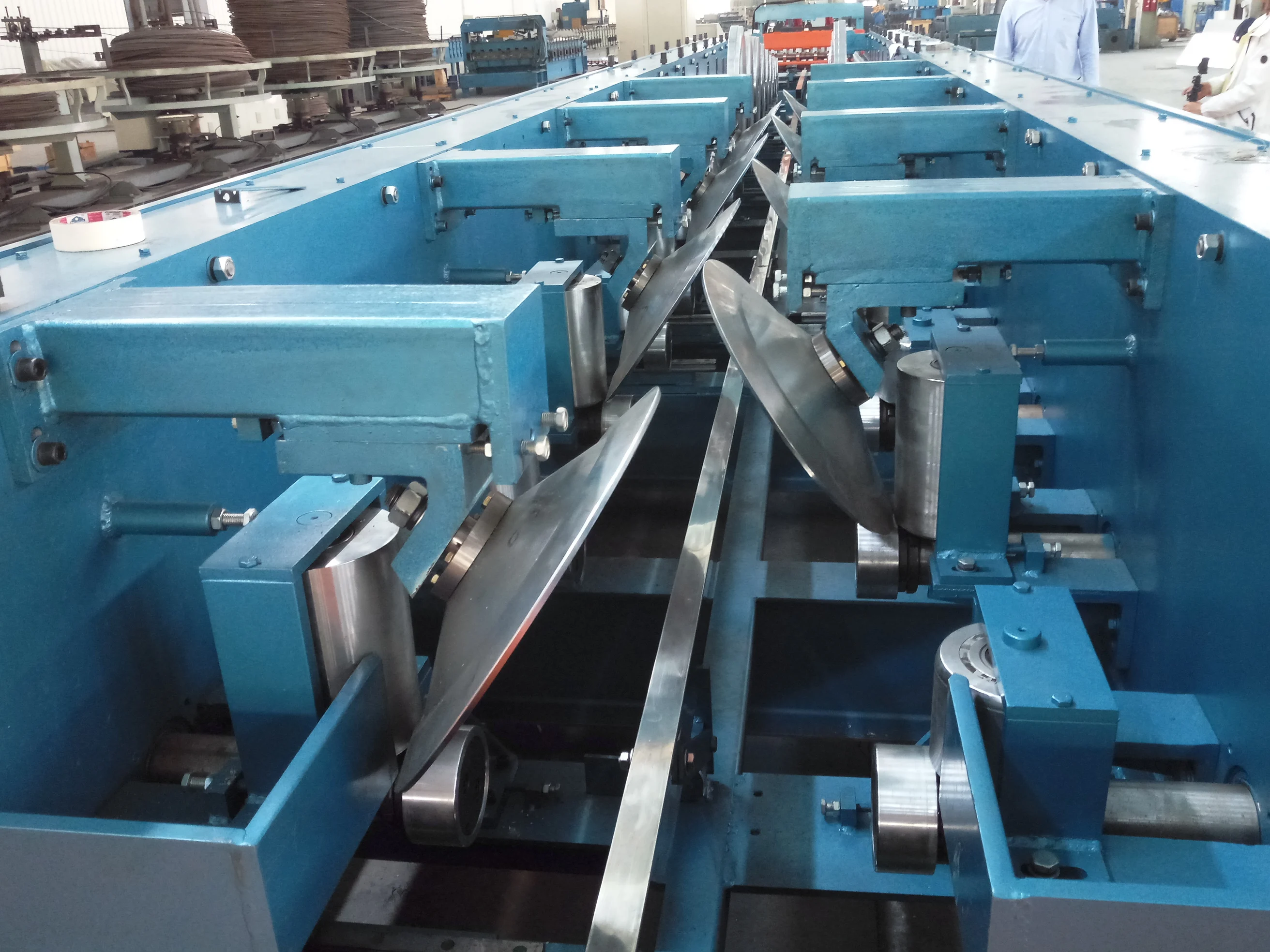

- Servo-driven feeding system

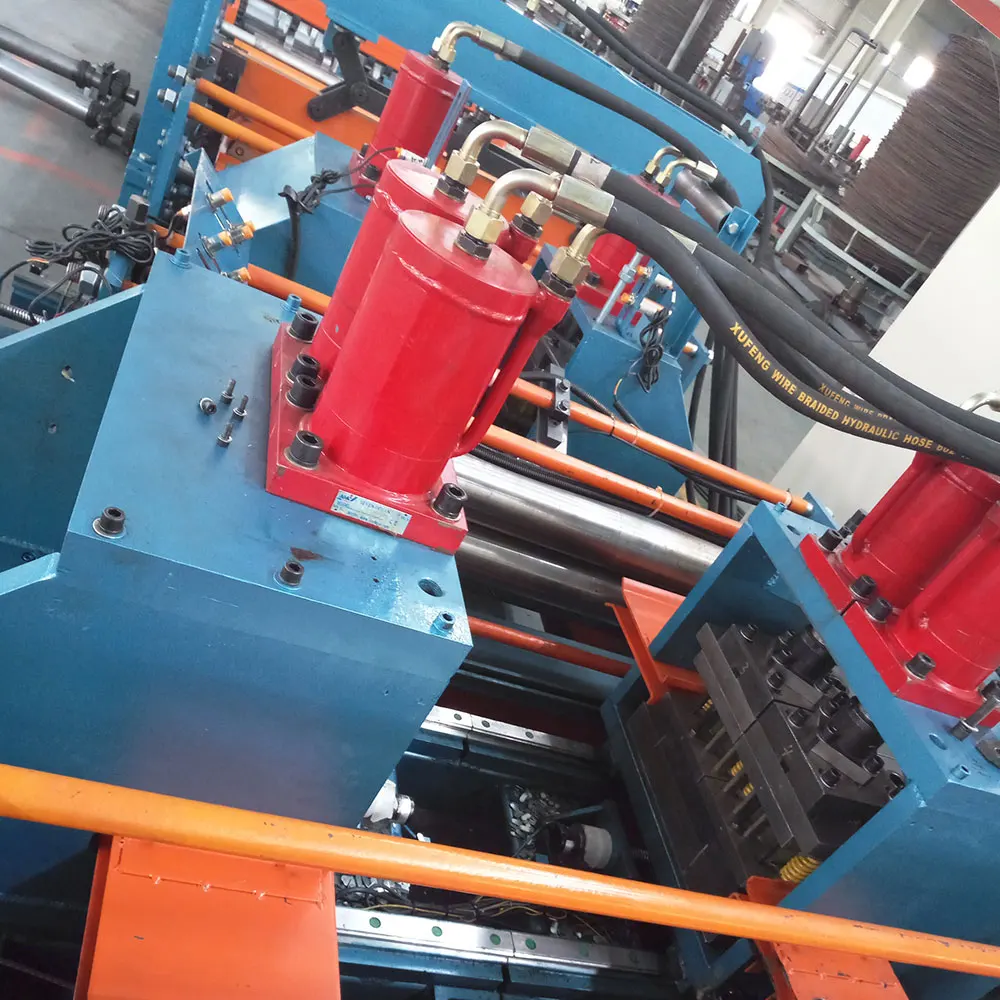

- Hydraulic cutting system
- Core Components
- PLCMotorGearEnginePressure Vessel
Compliance & Quality
Quality Certifications
CEISO9001
Quality Control
- Machinery Test Report Provided
- Video Outgoing-Inspection Provided
Service & Support
After-Sales Support
- Field installation, commissioning and training
- Engineers available to service machinery overseas
- Online and Video technical support
- Field maintenance and repair service
- Spare parts availability
Logistics
Lead Time & Port
| Quantity (Sets) | Est. Time (Days) | Port |
|---|---|---|
| 1 - 1 | 60 | SHANGHAI |
| > 1 | Negotiable | SHANGHAI |
