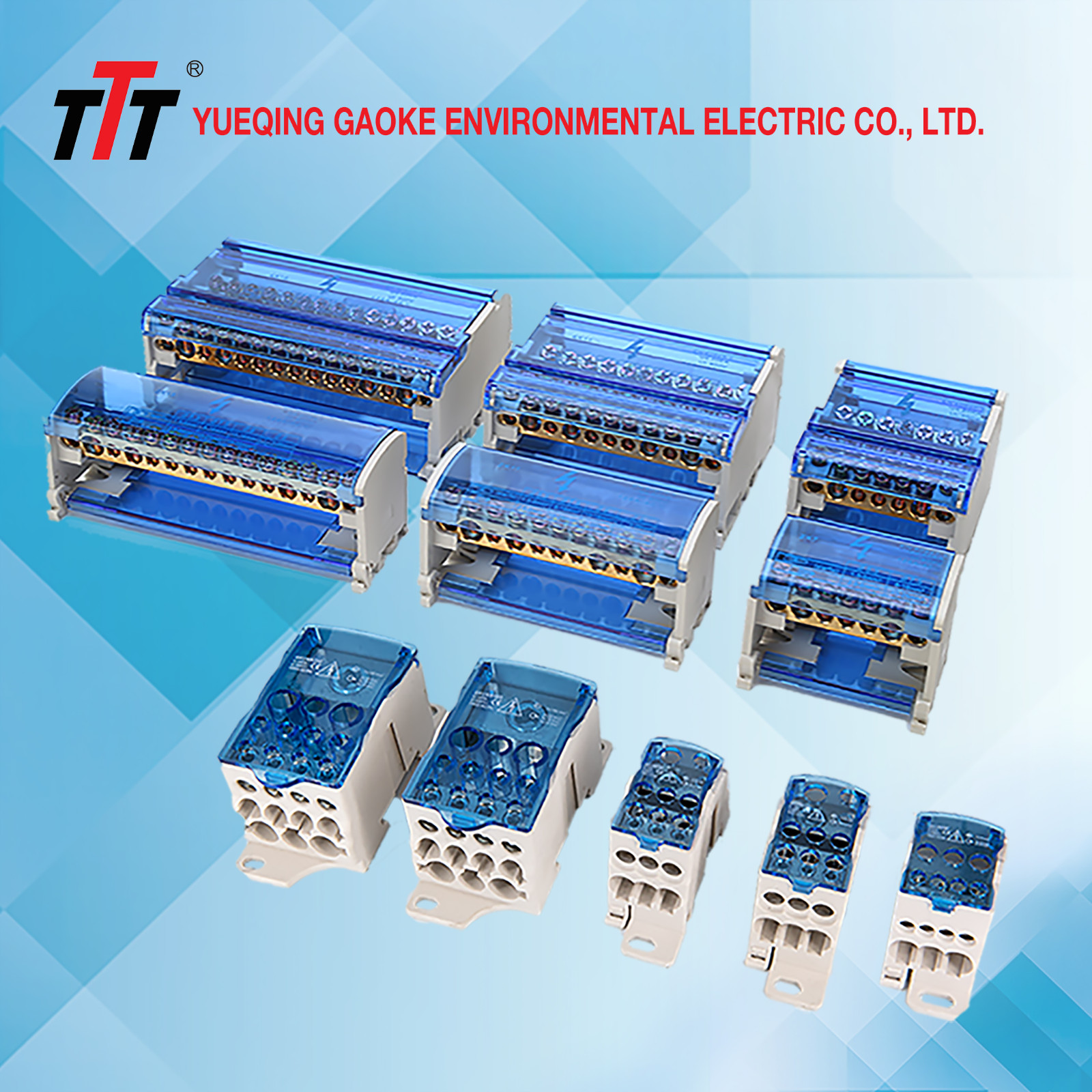

Brass Terminal Distribution Block
These brass terminal distribution blocks ensure safer and more reliable electrical connections. They facilitate easy mounting, checking, and maintenance, efficiently connecting multiple wires.
Technical Specifications
Product Overview
Professional Terminal Distribution Blocks
These terminal distribution blocks provide a secure and organized solution for electrical power transmission and distribution. Designed for efficiency, they allow for easy installation without the need to cut the main cable, saving valuable time and labor. The integrated transparent covers ensure safe operation while allowing for quick visual inspection of connections, making them an ideal choice for narrow spaces like bridge frames or electrical boxes.
Key Features
Key Advantages
Dust-Proof DesignTransparent Inspection CoverDIN Rail MountableFlame RetardantEasy Maintenance
Technical Specifications
Voltage Rating
690 V
IEC Rated Voltage
250 V
Standard Rated Voltage
Operating Temperature Range
- PA66 Material: -30°C to 110°C
- PC Material: -60°C to 135°C

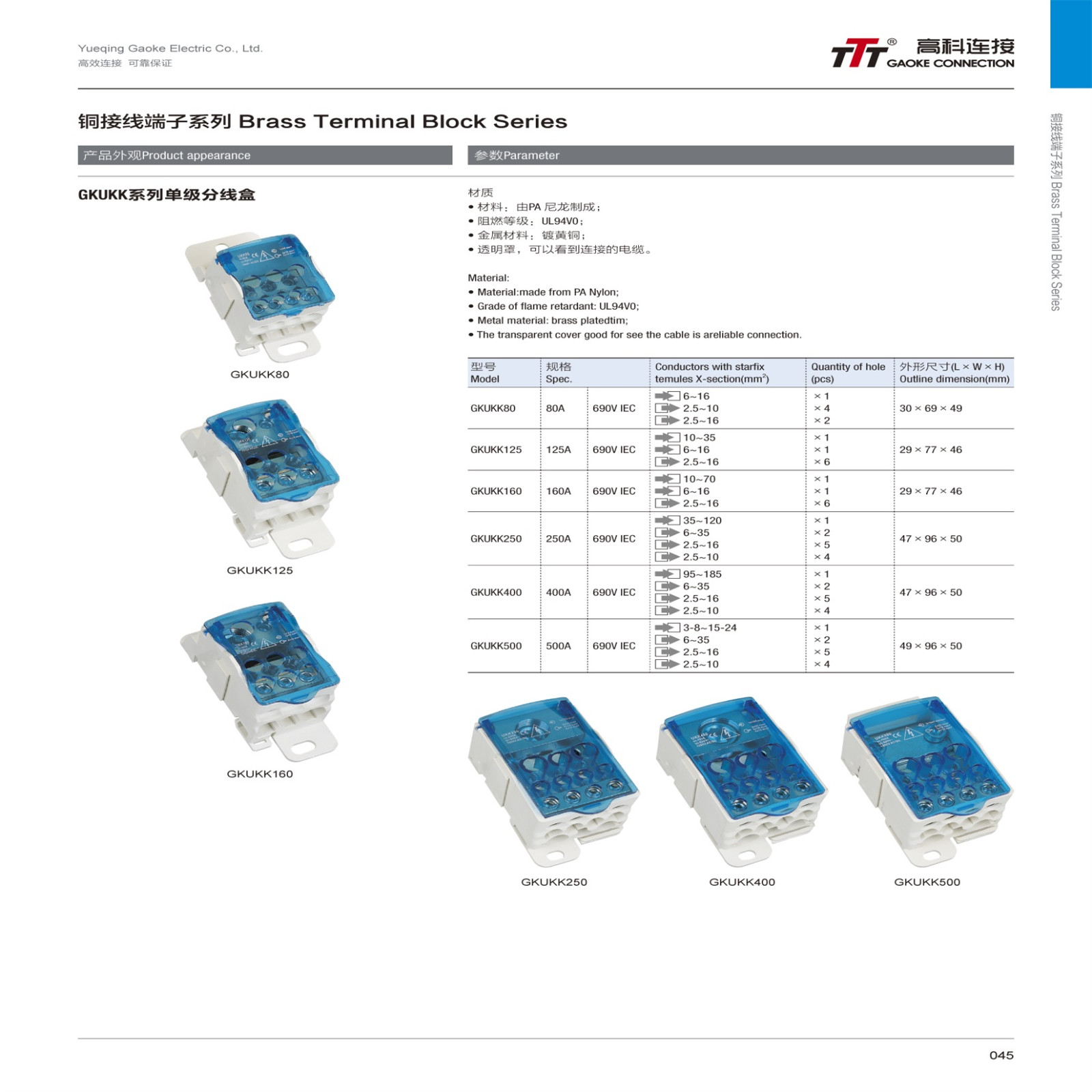

Series GKUKK Data
GKUKK Series Specifications
| Model | Current | Dimensions (mm) |
|---|---|---|
| GKUKK80 | 80A | 30x69x49 |
| GKUKK125 | 125A | 29x77x46 |
| GKUKK160 | 160A | 29x77x46 |
| GKUKK250 | 250A | 47x96x50 |
| GKUKK400 | 400A | 47x96x50 |
| GKUKK500 | 500A | 49x96x50 |
Series GK112 Data
GK112 Series Specifications
| Model | Configuration | Dimensions (mm) |
|---|---|---|
| GK112-01 | 2P-7 | 65x45x51 |
| GK112-02 | 2P-15 | 132x45x51 |
| GK112-03 | 4P-7 | 65x88x51 |
| GK112-04 | 4P-11 | 100x88x51 |
| GK112-05 | 4P-15 | 132x88x51 |
| GK112-06 | 2P-11 | 100x45x51 |
