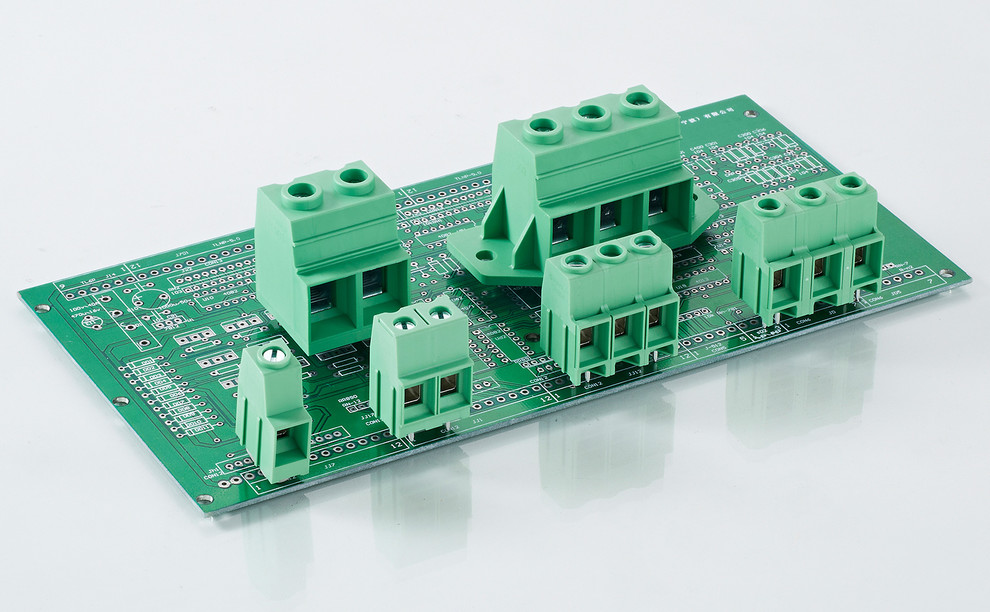

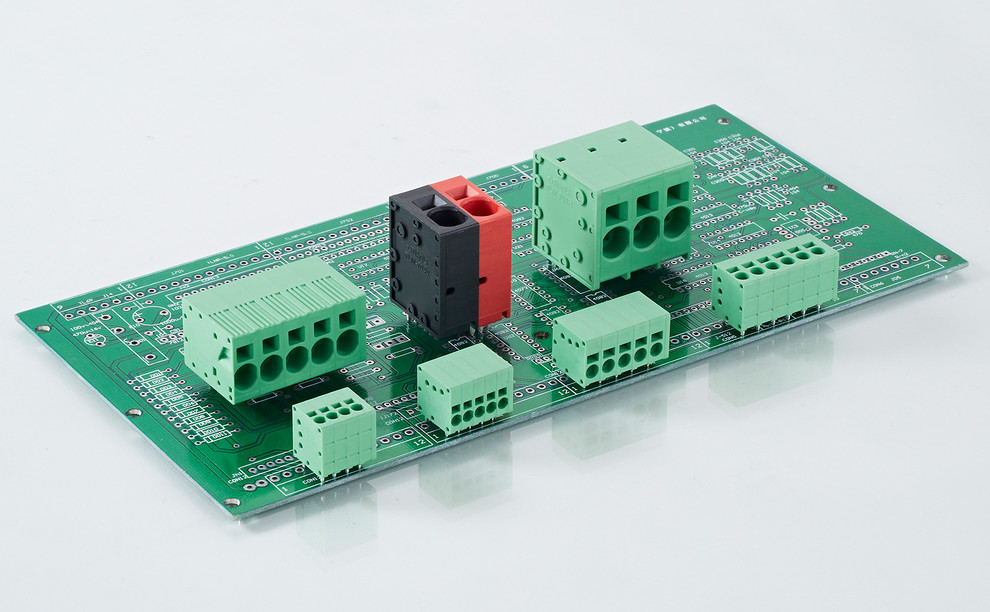

PCB Mountable Terminal Block Connector
PCB mountable terminal block connectors are designed for secure and reliable wire termination. They are ideal for use in industrial control systems, power supplies, and other electronic devices.
Technical Specifications
Product Overview
Professional Terminal Block Connectors
These PCB mountable terminal block connectors provide a reliable and efficient solution for secure wire termination in industrial, security, and building automation applications. Designed for versatility, they support various connection methods including screw, spring, and push-in configurations. Engineered with high-temperature resistance materials, these connectors are suitable for demanding reflow applications and offer flexible wire entry angles for complex assembly requirements.
Performance Metrics
Key Operating Specifications
115 A
Max Current (UL)
1,000 V
Max Voltage (IEC)
15 mm
Max Pitch
Technical Details
Electrical Ratings
| Standard | Current Range | Voltage Range |
|---|---|---|
| UL | 5A - 115A | 150V - 600V |
| IEC | 4A - 125A | 160V - 1000V |
Wire Compatibility
- AWG Range: 28AWG to 2AWG
- Metric Range: 0.14mm² to 35mm²
Features
Construction Features
High-temperature resistantPCB mountableFlexible entry angles
- Connection Methods
- ScrewSpringPush-in
