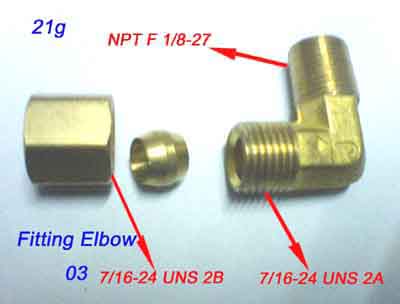

Brass Compression Fitting Elbow 1/4 inch Tube x 1/8-27 Male Pipe
This brass fitting elbow connects 1/4 inch tubes to 1/8-27 NPT male pipe threads. It features a compression fitting on one end and a male pipe thread on the other.
Technical Specifications
Product Overview
High-Precision Brass Compression Elbow
This forged brass elbow fitting is engineered for reliable connections between 1/4" tubing and 1/8-27 male pipe threads. Manufactured using digital lathes for high precision, it is ideal for pneumatic, hydraulic, and instrumentation applications where a secure, leak-proof seal is required. The durable brass construction ensures excellent corrosion resistance and long-term performance in demanding industrial environments.
Technical Specifications
Material
Forged Brass
Unit Weight
21 g
Net Weight
- Product Code
- SV-CF0103
- Connection Type A
- 1/4 inch Tube Compression
- Connection Type B
- 1/8-27 Male Pipe (NPT)
- Thread Standards
- 7/16-24 UNS 2A7/16-24 UNS 2BNPT 1/8-27
Manufacturing & Quality
Production Process
- Forged brass construction for superior strength
- Machined by high-precision Digital Lathe
- Threads and dimensions verified by standard gauge
Customization Services
- Production based on customer drawings
- Sample-based manufacturing
- Free mold and tooling development
Applications
- Recommended Use
- Pneumatic SystemsHydraulic SystemsPlumbingInstrumentation
