Technical Specifications
Product Overview

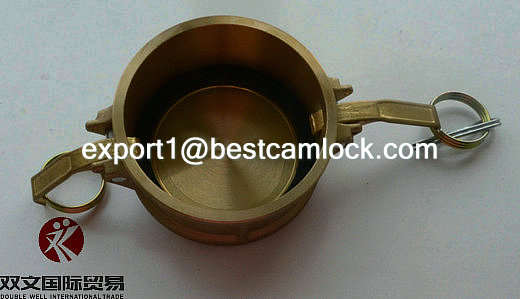

High-Performance Brass Camlock Coupling
This brass cam and groove hose fitting is designed for efficient, tool-free fluid transfer in industrial environments. Engineered for durability and high abrasion resistance, it provides a secure, leak-proof connection for suction or discharge hoses. It is ideal for use with pumps, tanks, and IBC containers in sectors such as the paints and inks industry.
Technical Specifications
- Material
- BrassCarbon Steel Plated or Stainless Steel (Pins/Rings/Clip)NBR/BUNA/EPDM/VITON (Seal)
- Available Sizes
- 1/2 inch to 6 inches
- Standards
- A-A-59326MIL-C-27487DIN 2828DIN 14420-7
Performance Metrics
Operating Limits
250 psi
Max Working Pressure
232 °C
Max Temperature
-101 °C
Min Temperature
Important Safety Notes
- Not suitable for steam applications
- Not suitable for compressed air
- Not suitable for liquid gases
Configuration
Thread Options
NPTBSPPBSPT
- Types

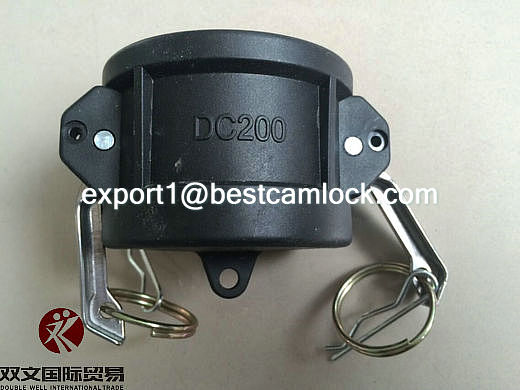

- A, B, C, D, E, F, DC, DP
