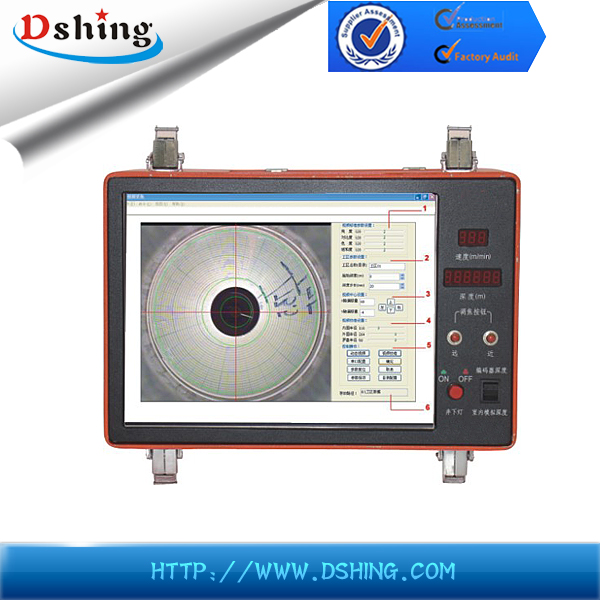

Borehole Full Wall Imaging System
This system uses a reflective axicon lens to capture 360° images of borehole walls. Computer processing creates a continuous, developed image of the hole wall.
Technical Specifications
Overview
Comprehensive Borehole Analysis
The Borehole Full Wall Imaging System is a professional-grade instrument designed for detailed subsurface investigation. It provides high-resolution, 360-degree imaging of borehole walls, enabling precise characterization of geological formations, fracture widths, and stratum thickness. Equipped with real-time depth measurement and advanced processing capabilities, this system is an essential tool for geotechnical engineering, mineral exploration, and environmental site assessments.
Imaging Capabilities
- Viewing Angle
- 360°
- Resolution
- 450TVL
- Lighting System
- Built-in K3200° Trichromatic Lighting Ring
Technical Specifications
- Adapted Hole Depth
- 300 mm
- Probe Diameter
- 70 mm
- Adaptation Aperture
- φ75~φ300mm
- Power Supply
- AC220V±10% 50Hz
- Video Output
- 1Vp-p PAL TV Signal 75Ω
Software & Compatibility
Software Functionality
- Image and literal text marking
- Interpretation lines on images
- Real-time display of position and depth
- Convolution rotation
- Inclination calculation
- Stratum thickness and crack width measurement
- Operating System
- Win2000XP
