Technical Specifications
Overview
Advanced Biometric Security Solution
This Biometric Bluetooth Keyless Smart Door Lock offers a sophisticated multi-method entry system designed for modern home security. Constructed from durable zinc alloy, it features a high-precision semiconductor fingerprint sensor and integrated Bluetooth connectivity for seamless app-based control. With versatile power options and an anti-prying single lingual lock design, it provides a reliable and convenient access solution for various door types.
Access & Security
Storage Capacity
38 Users
Fingerprint + Password Capacity
Security Protections
- Anti-smashing design
- Anti-prying mechanism
- Anti-card opening protection
- Fake fingerprint rejection via skin temperature/pressure sensing
- Low battery alarm prompt (below 3.5V)

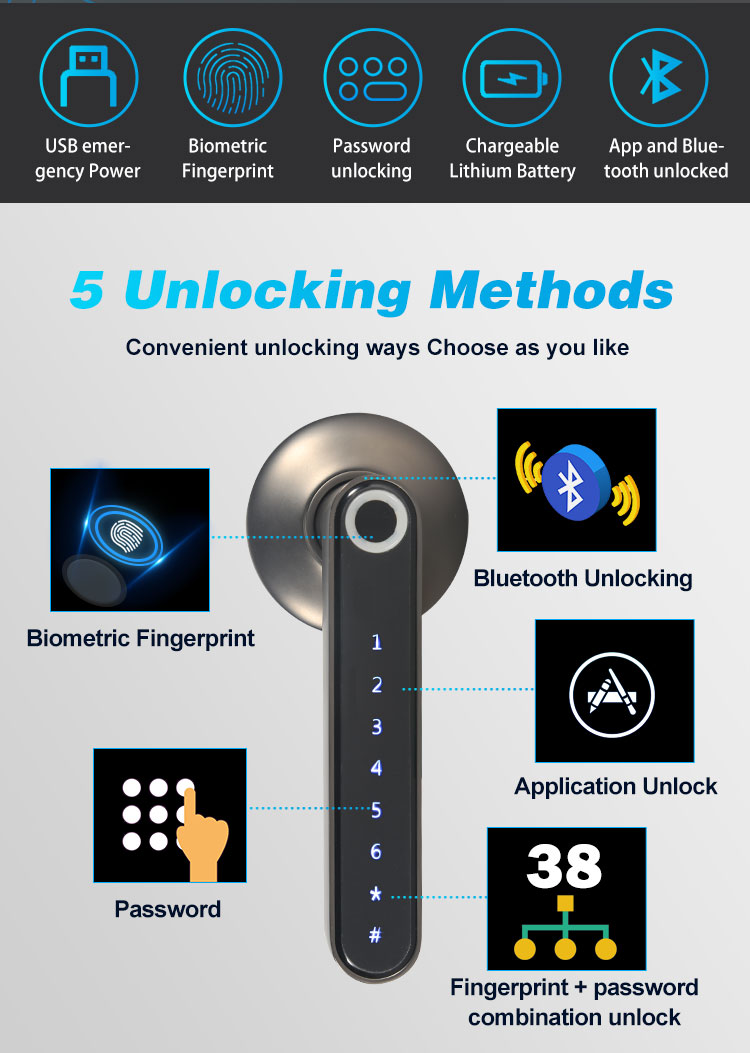

- Unlocking Methods
- Biometric FingerprintPasswordApp ControlBluetoothFingerprint + Password CombinationMechanical KeyUSB Emergency Power
Technical Specifications
Operating Parameters
| Parameter | Specification |
|---|---|
| Material | Zinc Alloy |
| Working Voltage | DC 3.5V - 4.2V |
| Working Temperature | -20°C to 55°C |
| Fingerprint Sensor | Semiconductor Biometric |

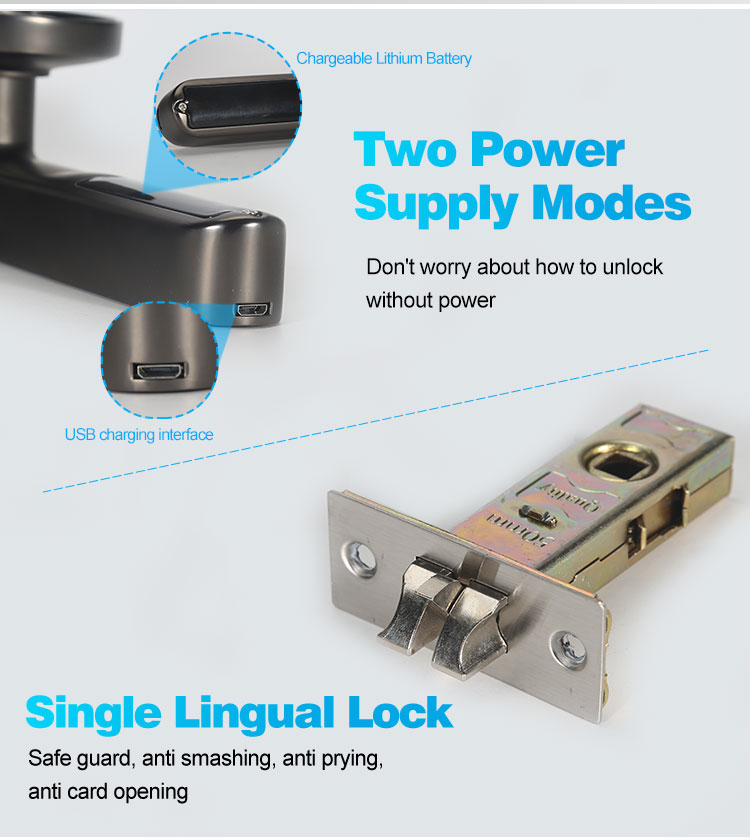

| Lock Body | Single Lingual Lock (50mm) |
Power Management
Power Supply System
- Rechargeable Lithium Battery
- 4 x AA Batteries (optional configuration)
- USB Emergency Charging Interface
Battery Performance
20,000 Times
Operations per Battery Cycle
Installation & Compatibility
Installation Requirements
| Requirement | Value |
|---|---|
| Door Thickness | 35mm - 60mm |
| Door Direction | Universal (No left/right requirement) |
| Compatible Materials | Wooden, Glass, and Metal Doors |
Logistics & Compliance
Product Certifications
CERoHSISO 9001SONCAPBSCI
Order & Delivery
- MOQ: 200 pieces
- Sample Lead Time: Within 7 workdays
- Bulk Order Delivery: 20-30 days
- OEM/ODM Services Available
