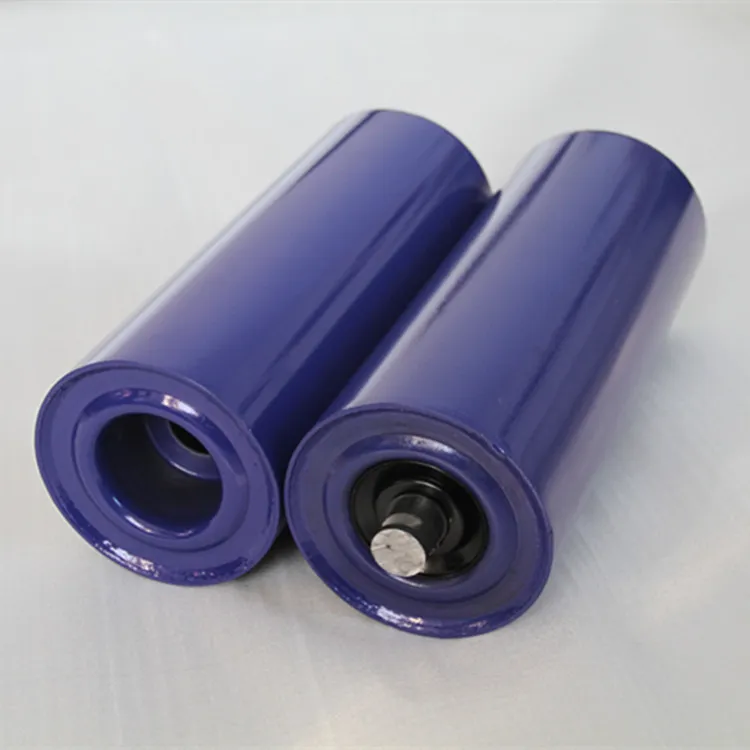

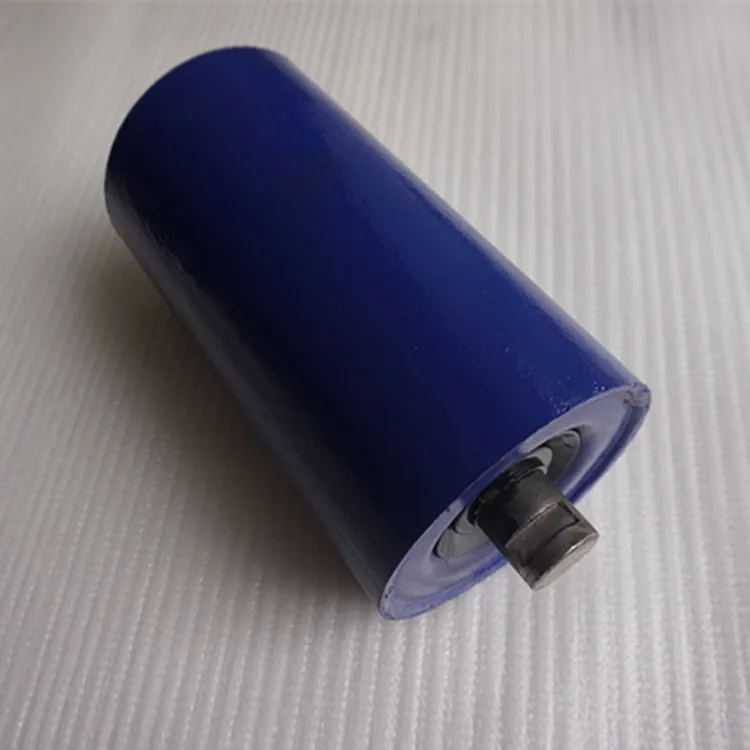

Belt Conveyor Return Idler Roller
This belt conveyor roller is ISO certified and provides steady performance. It is designed for a long service life and safety in material handling.
Technical Specifications
Overview
High-Performance Belt Conveyor Return Idler
This high-precision return idler roller is an essential component for belt conveyor systems, designed to support the conveyor belt and material weight with steady performance. Engineered for demanding mining and industrial applications, it features a robust carbon steel construction and a multiple labyrinth seal for superior protection. With ISO and CE certifications, this roller ensures a long service life and enhanced safety performance in harsh operational environments.
Key Performance Metrics
Performance Highlights
30,000 Hours
Service Life
12 Months
Warranty
98 %
Qualification Rate
Technical Specifications
- Model Type
- Steel roller
- Diameter
- 89-159mm
- Length
- 190-1500mm
- Material
- Carbon steel

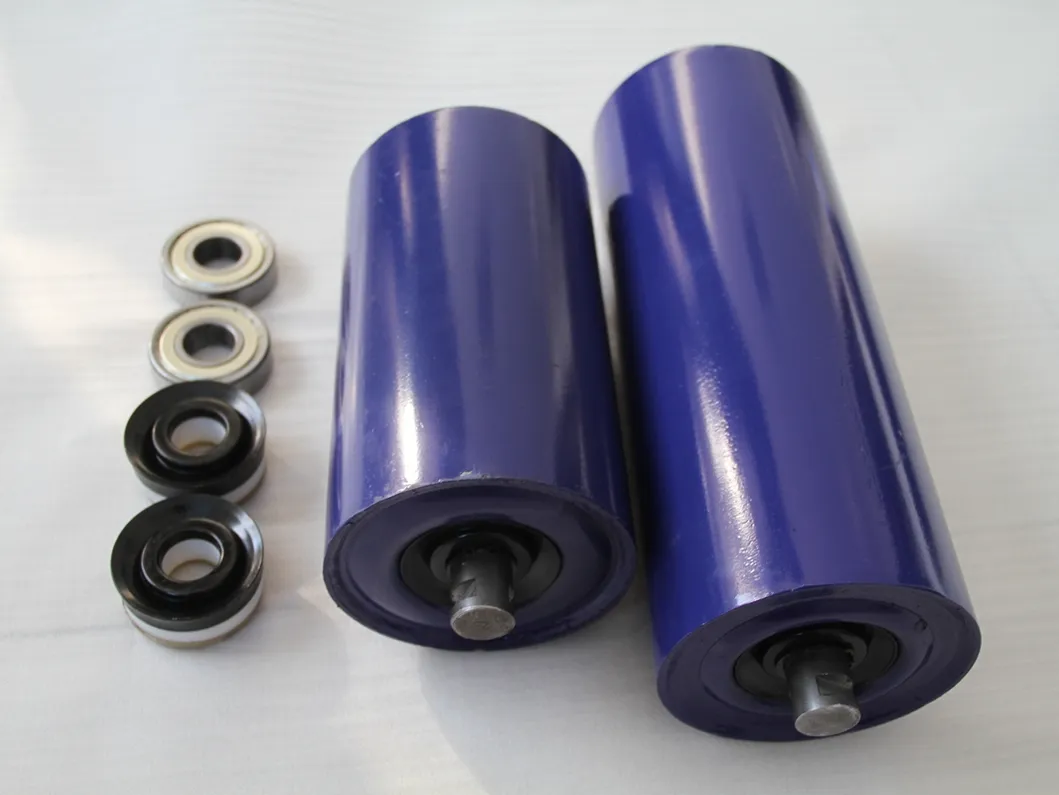

Components & Design
- Seal Structure
- Multiple non-contact labyrinth seal (Nylon)
- Bearing Type
- Deep Groove ball bearing (C3 clearance grade)
- Lubrication
- Long-acting lithium-based grease
Compliance & Features
Operational Advantages
- Waterproof and dustproof
- Acid and impact resistance
- Fire resistant and anti-static
- Low noise and smooth running
- Minimal rotational resistance
- High precision with small diameter jump
- Certifications
- ISOCE
- Manufacturing Standards
- DINASJISCEMASANS-SABSGOSTAFNOR
