Battery Powered Hydraulic Crimping Tool
This battery powered hydraulic crimping tool is designed for crimping both copper and aluminum lugs and connectors. It provides a convenient crimping process with a crimping force of 100kN and a crimping range of 16mm2-300mm2.
Technical Specifications
Overview
Professional Crimping Solution
This battery-powered hydraulic crimping tool is engineered for the convenient and reliable termination of both copper and aluminum lugs and connectors. Designed for field efficiency, it features a robust hydraulic system capable of delivering 100kN of force. The cordless operation and ergonomic design help reduce operator fatigue during intensive electrical installation and maintenance tasks.
Technical Specifications
- Crimping Force
- 100 kN
- Crimping Range
- 16mm² - 300mm²
- Weight (incl. battery)
- 5.8 kg
- Length
- 370 mm
Power and Accessories
Package Contents
- Hydraulic Crimping Tool
- Die set
- Instruction manual
- Plastic carry case
- Battery charger
- 2x 18V/4.0Ah Li-ion batteries
- Battery System
- 18V / 4.0Ah Li-ion (2 batteries included)
- Charger Voltage Compatibility
- 110V - 240V
Compatibility and Application

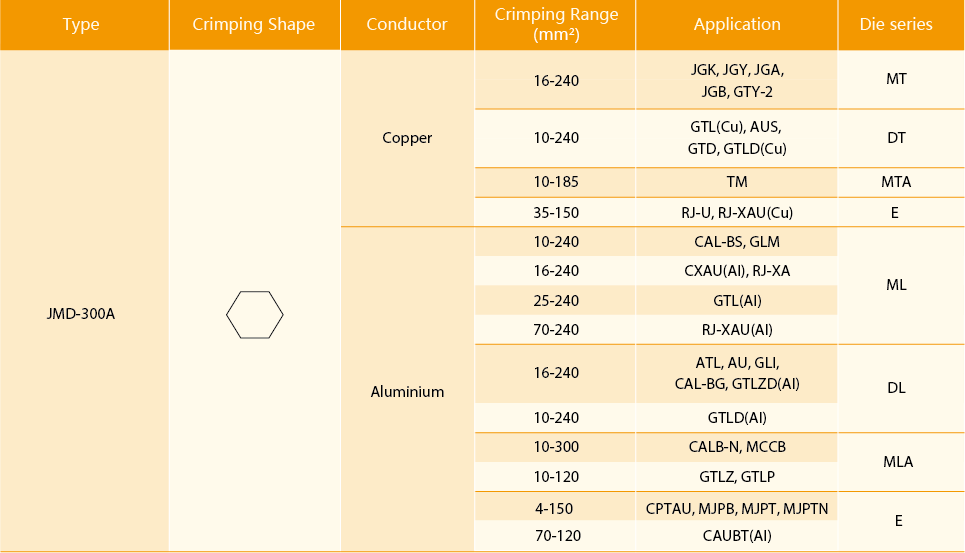

Conductor and Die Compatibility
| Material | Crimping Range (mm²) | Compatible Die Series |
|---|---|---|
| Copper | 10-240 | MT, DT, MTA, E, RJ-U, RJ-XAU, GTL |
| Aluminium | 16-300 | ML, DL, MLA, ATL, AU, GLI, CAL-BG, GTLZD |
