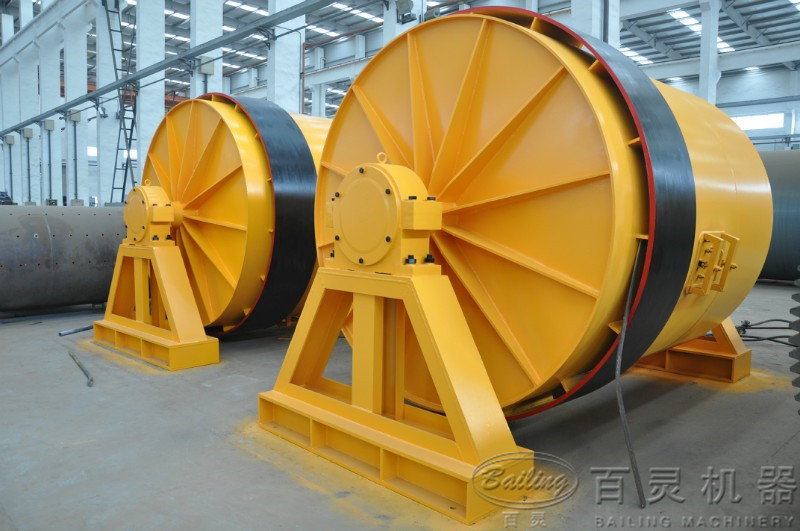

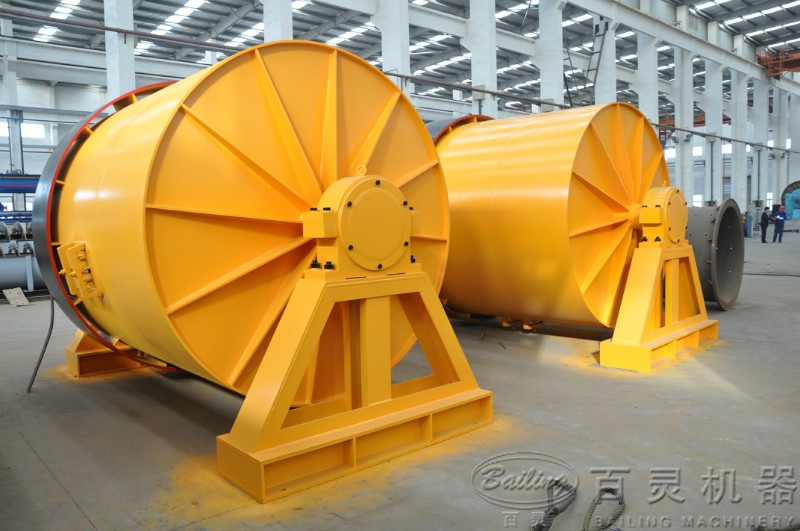

Batch Ball Mill for Material Processing
The batch ball mill is suitable for milling, mixing, and discharging materials such as feldspar, quartz, and clay using either a dry or wet process. This machine is designed to grind materials into fine powder through batch processing.
Technical Specifications
Overview
High-Efficiency Batch Ball Mill
This batch ball mill is a versatile grinding solution suitable for both dry and wet processing of materials like feldspar, quartz, and clay. Designed for super-fine grinding, it offers uniform product fineness, significant energy savings, and reliable performance. The machine features a novel, robust structure that is easy to operate, making it an ideal choice for mining, chemical, and construction applications.
Key Features
Operational Benefits
Energy SavingUniform FinenessSimple OperationReduced Starting Current
- Processing Capabilities
- Dry GrindingWet GrindingMixingSuper Fine Grinding
Technical Specifications
Model Specifications
| Model | Capacity (t/times) | Speed (r/min) | Power (kW) | Weight (t) |
|---|---|---|---|---|
| TCQ910×1120 | 0.2 | 36 | 5.5-11 | 3 |
| TCQ1200×1400 | 0.5 | 32 | 11-18.5 | 3.8 |
| TCQ1500×1800 | 1 | 28 | 15-22 | 4.5 |
| TCQ1800×2100 | 1.5 | 26 | 18.5-30 | 6 |
| TCQ2100×2100 | 2.5 | 22 | 22-37 | 7.4 |
| TCQ2200×2400 | 3 | 20 | 28-45 | 8.2 |
| TCQ2500×2900 | 5 | 16 | 37-55 | 9.3 |
| TCQ2800×3700 | 8 | 14.5 | 55-75 | 12.5 |
| TCQ3000×3700 | 10 | 14 | 75-90 | 18.6 |
