Technical Specifications
Product Overview
Precision Barrel Corrugation

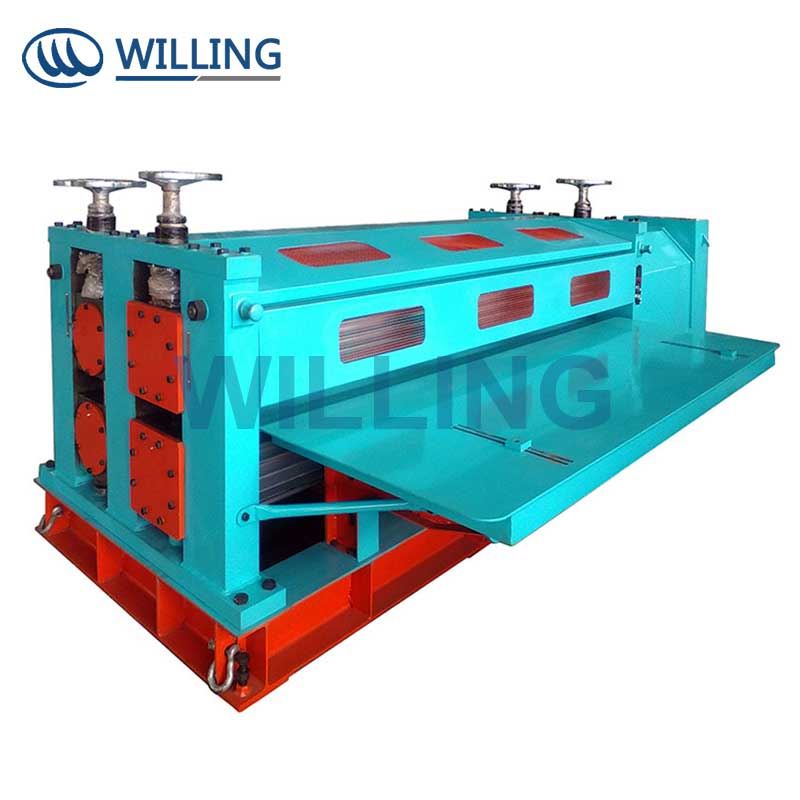

This industrial barrel corrugation machine is engineered for creating precise, consistent corrugated patterns on cylindrical materials. Built with a robust frame and high-quality 40Cr steel rollers, it ensures durability and structural integrity for the finished product. The system features adjustable corrugating and flattening rolls, allowing operators to fine-tune the corrugation depth and pitch to meet specific manufacturing requirements.
Construction & Materials
Key Components
- Corrugating rolls
- Flattening rolls
- Main frame
- Feed table with gauge blocks
- Roller Material
- 40Cr Steel
Operation & Control
- Drive System
- Motor with gear reduction train
- Adjustment Type
- Manual hand wheel
- Flattening Roll Drive
- Chain & sprocket
- Feed Table Features
- Adjustable widthGauge blocksSliding entry table
