Ball Mill Grinder
The Ball Mill Grinder is designed for efficiently mixing and grinding materials, ensuring consistent fineness. It offers energy-saving operation and can be adapted with different lining boards to meet diverse production needs.
Technical Specifications
Overview

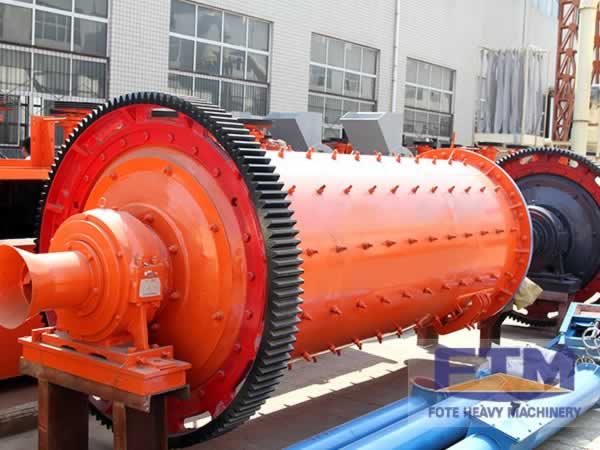

Chinaware Ball Mill Grinder
The Chinaware Ball Mill Grinder is a versatile solution for mixing and grinding materials to a uniform fineness. Designed for both wet and dry applications, it offers significant energy savings and a novel structure that simplifies operation. This equipment is ideal for various production lines where consistent product quality and high capacity are essential requirements.
Key Features
- Main Benefits
- Energy SavingEven FinenessSimple OperationLarge CapacityWet & Dry Grinding
Technical Design
Structure Type
Integral TypeFreestanding Type
Major Components
- Feeding part
- Discharging part
- Rotary part
- Driving part (reducer, small drive gear, electrical machine)
- Electronic control system
- Steel casting hollow shaft
- Dismountable inner lining
- Casting gear hobbing rotary rack wheel
Material Options
- Available Liner Materials
- ChinawareSiliconRubberMetal
Specifications Table
Model Performance Data
| Model | Feeding Capacity (t/time) | Shell Rotation Speed (r/min) | Reference Motor (kW) |
|---|---|---|---|
| 600×700 | 0.05 | 50 | 2.2 |
| 800×600 | 0.075 | 42 | 3 |
| 900×1200 | 0.2 | 38.5 | 5.5 |
| 1300×1500 | 0.5 | 33 | 7.5 |
| 1500×1800 | 1.2 | 28.5 | 11 |
| 1800×2000 | 1.5 | 24 | 15 |
| 2600×2800 | 5 | 16.5 | 37 |
| 3000×3800 | 10 | 14.5 | 57.2 |
| 3200×4600 | 15 | 13.5 | 75 |
Performance Highlights
Maximum Feeding Capacity
15 t/time
Max Capacity
