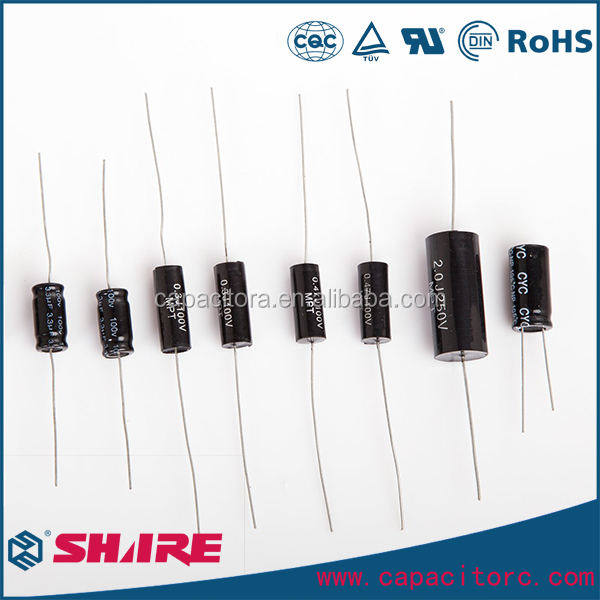

Axial Metallized Polypropylene Film Capacitor
This axial capacitor is constructed with metallized polypropylene film. It is designed for high-voltage applications requiring stable capacitance and low losses.
Technical Specifications
Product Overview
High-Performance Axial Capacitors
The CBB20 series is an axial metallized polypropylene film capacitor designed for demanding high-voltage applications. Constructed with non-inductive winding and wrapped in protective adhesive PET tape, these capacitors offer a compact footprint and reliable performance. They are engineered to provide excellent insulation, low dissipation factors, and minimal temperature rise, making them an ideal choice for filtering, noise suppression, and low-impulse circuits.
Technical Specifications
Key Features
- Non-inductive winding
- Compact size
- High insulation resistance
- Low dissipation factor
- Low temperature rise
- Easy installation
- Construction Materials
- Metallized Polypropylene FilmAdhesive PET TapeTinned Copper Wire
- Mounting Type
- Through-hole (Axial leads)
Compliance & Standards
Certifications
RoHSDINTÜV
Available Configurations
Common Ratings
| Capacitance | Voltage Rating |
|---|---|
| 3.3μF | 100V |
| 2.0μF | 250V |
| 1.5μF | 630V |
| 0.47μF | 100V |
| 0.47μF | 200V |
| 0.33μF | 100V |
Applications
Recommended Applications
- Filtering circuits
- Noise suppression
- Low impulse circuits
- HVAC&R systems
- Refrigeration accessories
- High-frequency circuits
- Power supplies
