Autonomous Operation System for Agricultural Machinery
This autonomous operation system is compatible with various types of agricultural machinery. It allows for fully autonomous completion of tasks such as harrowing, plowing, and sowing.

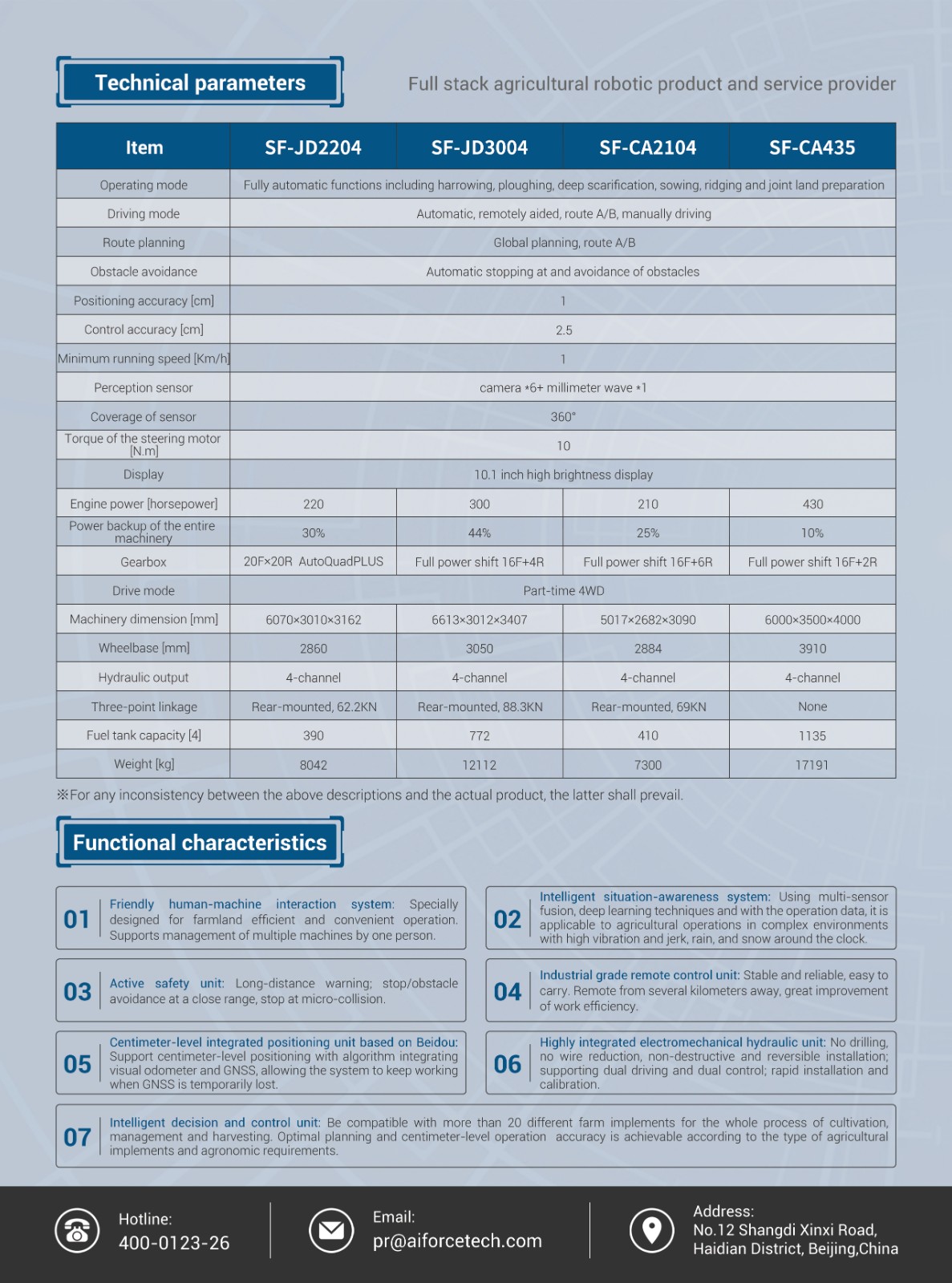

Technical Specifications
Overview
Autonomous Agricultural Operations
This advanced unmanned operation system enables full autonomy for standard agricultural machinery, supporting tasks such as harrowing, plowing, sowing, and ridging. Designed to tackle labor shortages, the system allows a single operator to manage a fleet of tractors with centimeter-level precision. It features multi-sensor fusion for 24/7 operation in complex environments, ensuring high efficiency, safety, and energy conservation.
Performance Metrics
Precision & Performance
1 cm
Positioning Accuracy
2.5 cm
Control Accuracy
1 km/h
Min Running Speed
360 degrees
Sensor Coverage
Technical Specifications
Model Specifications
| Feature | Model JD2204 | Model JD3004 | Model CA2104 | Model CA435 |
|---|---|---|---|---|
| Power (hp) | 220 | 300 | 210 | 430 |
| Weight (kg) | 8042 | 12112 | 7300 | 17191 |
| Fuel Tank (L) | 390 | 772 | 410 | 1135 |
| Wheelbase (mm) | 2860 | 3050 | 2884 | 3910 |
Operational Capabilities
Supported Tasks
- Harrowing
- Ploughing
- Deep scarification
- Ridging
- Sowing
- Joint land preparation
- Driving Modes
- AutomaticRemotely AidedRoute A/BManual
Safety & Technology
Safety Features
Active Safety UnitObstacle AvoidanceLong-distance WarningMicro-collision Detection
