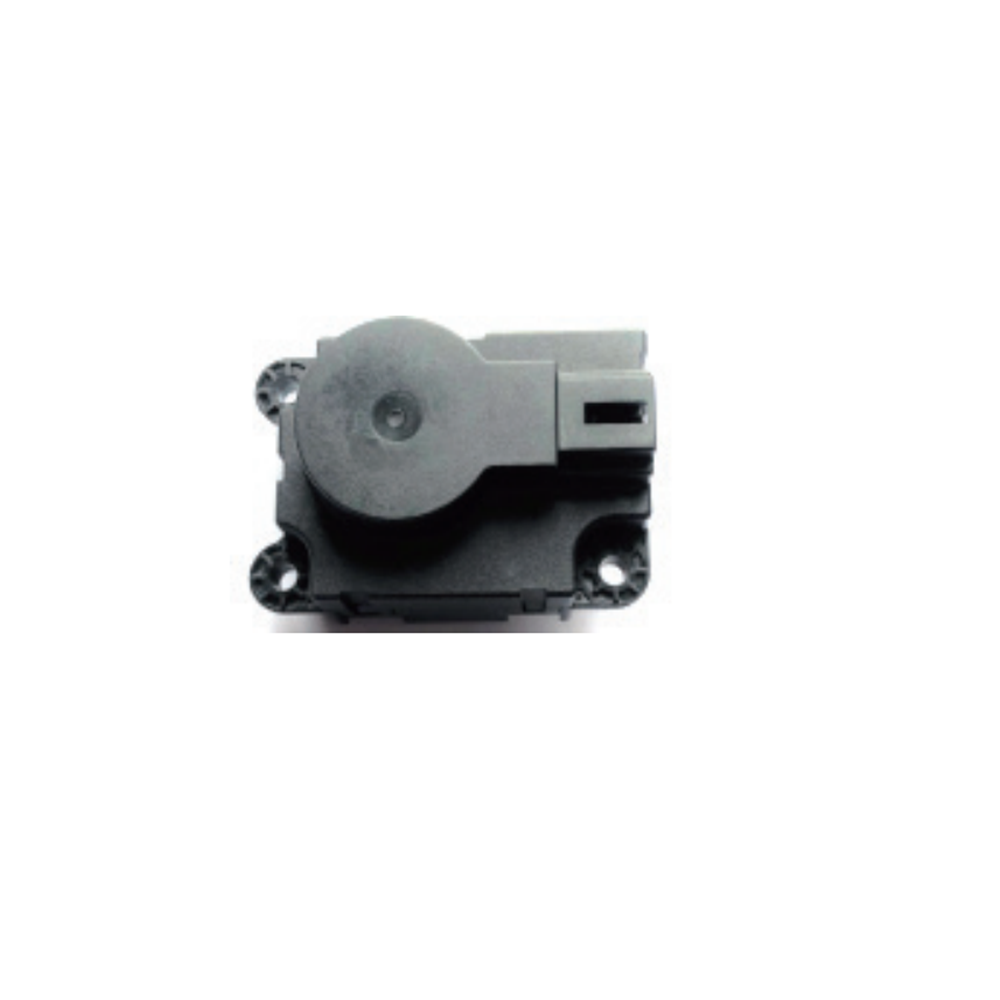

Automotive HVAC Actuator
This actuator controls air dampers and deflectors in automotive HVAC systems. It manages fresh air, mode, and temperature within the vehicle's air conditioning.
Technical Specifications
Overview
Automotive HVAC Actuator Solutions
These versatile actuators are designed for precise control of air dampers and deflectors within automotive air conditioning systems, managing fresh air intake, mode selection, and temperature regulation. Available in both DC and stepping motor configurations, they offer reliable performance for complex climate control requirements. The compact design ensures easy integration into modern vehicle HVAC modules while maintaining high accuracy and low noise operation.
Key Performance Metrics
Key Performance Metrics
40 dB
Maximum Noise Level
110 N.cm
Rated Torque
0.05 °
Step Angle
General Specifications
Primary Applications
- Fresh air control
- Mode switching
- Temperature regulation
- Driving Modes
- DC MotorStep Motor

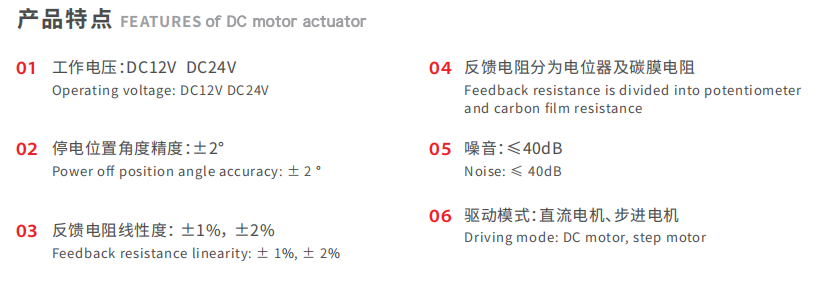

DC Motor Actuator Technical Data
Feedback Resistance Types
- Potentiometer
- Carbon film resistance
- Operating Voltage
- DC 12VDC 24V
- Power-off Position Accuracy
- ±2°
- Feedback Resistance Linearity
- ±1% to ±2%

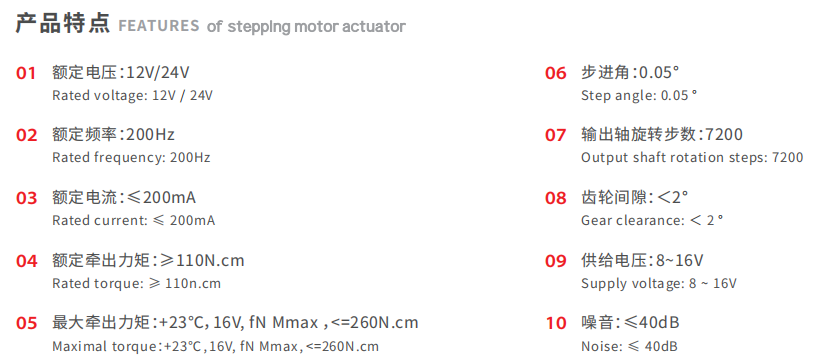

Stepping Motor Actuator Technical Data
- Rated Voltage
- 12V / 24V
- Supply Voltage Range
- 8V ~ 16V
- Rated Frequency
- 200 Hz
- Rated Current
- ≤200mA
- Maximal Torque (+23°C, 16V)
- ≤260N.cm
- Output Shaft Rotation
- 7200 steps
- Gear Clearance
- <2°
