Technical Specifications
Product Overview

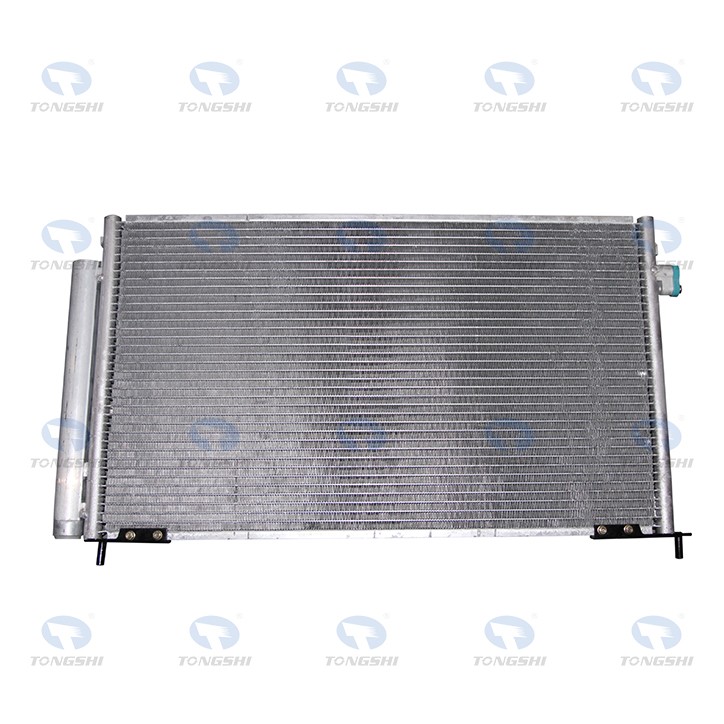

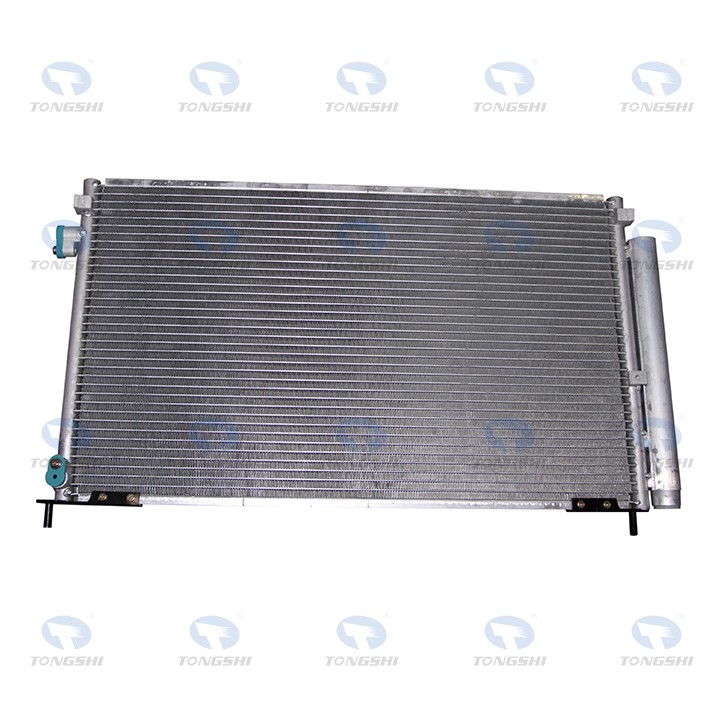

High-Performance Automotive Condenser
This automotive air conditioning condenser is engineered for efficient heat transfer and optimal cooling performance. Constructed from durable aluminum alloy, it features a parallel flow design with multiple tubes and fins to maximize surface area. Designed to meet or exceed OEM specifications, it ensures reliable temperature regulation and long-lasting service life in vehicle climate control systems.
Key Features
- High-efficiency heat transfer
- Compact design for easy installation
- Engineered for precise fit and function
- Durable aluminum alloy construction
Vehicle Compatibility
- Compatible Car Model
- Civic 1.8L I4
- Model Years
- 2006-2011
Technical Specifications
Core Size
645 mm
Width
378 mm
Height
16 mm
Thickness
Construction Material
Aluminum AlloyCorrosion ResistantParallel Flow
Identification & OEM
Cross-Reference Codes
| Type | Reference Code |
|---|---|
| TS No. | 88-74031 |
| DPI | 3569 |
| Nissens | Not Specified |
- OEM Reference Numbers
- 80102-SVA-A0180102-SVA-A13
Logistics
- Carton Dimensions
- 728 × 41 × 408 mm
