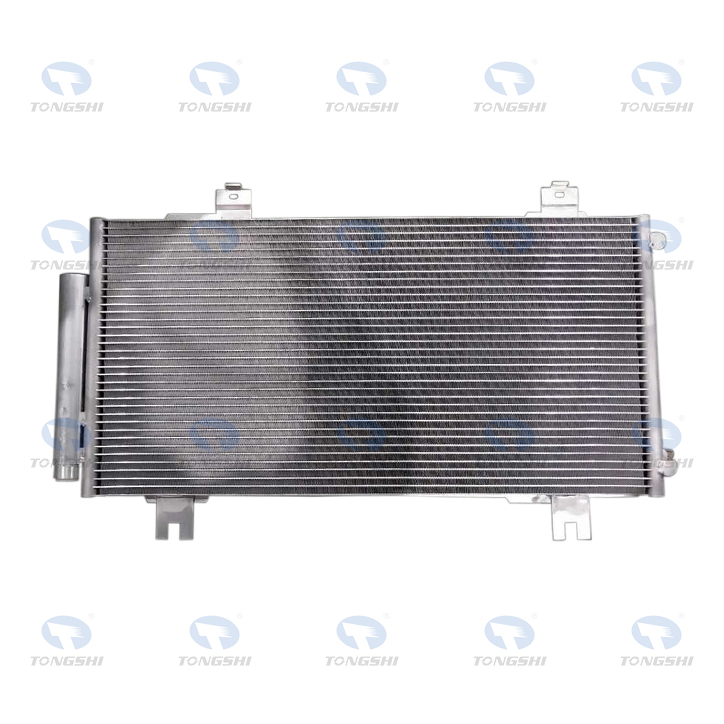

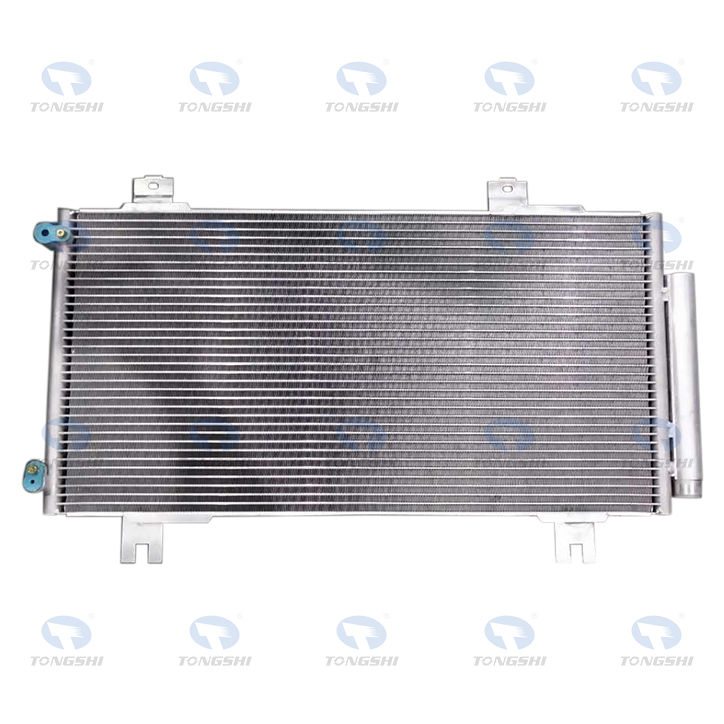

Automotive Air Conditioning Condenser
This condenser is designed for automotive air conditioning systems, efficiently dissipating heat from the refrigerant. Its compact design ensures easy installation and compatibility with various vehicle models, contributing to improved fuel efficiency and reduced emissions.
Technical Specifications
Overview
High-Performance Automotive Condenser
This automotive air conditioning condenser is engineered for efficient heat dissipation to ensure optimal cooling performance within the vehicle's HVAC system. Constructed from lightweight aluminum alloy, it features a parallel flow design with multiple horizontal tubes and vertical fins for superior heat transfer. Designed to meet or exceed OEM specifications, this component provides long-lasting reliability and a precise fit for compatible vehicle models.
Key Metrics
Performance Highlights
704 mm
Core Width
348 mm
Core Height
16 mm
Core Depth
Technical Specifications
Material
Aluminum AlloyCorrosion Resistant
- Core Dimensions
- 704 * 348 * 16 mm
- Carton Dimensions
- 815 * 70 * 490 mm
Compatibility
Vehicle Fitment
| Car Model | Region |
|---|---|
| FIT | US Market |
Design & Construction
Design Features
- Parallel flow design for maximum cooling efficiency
- Multiple horizontal tubes and vertical fins
- Integrated inlet and outlet ports for refrigerant
- Pre-installed mounting brackets for secure installation
- Compact form factor for easy engine compartment integration
Identification
- Reference Numbers
- TS 88-74083
