Automobile Air Conditioning Condenser
This condenser is designed for automotive air conditioning systems, dissipating heat from the refrigerant. It features durable construction for long-lasting performance and efficient cooling.
Technical Specifications
Product Overview
High-Efficiency Automotive Condenser

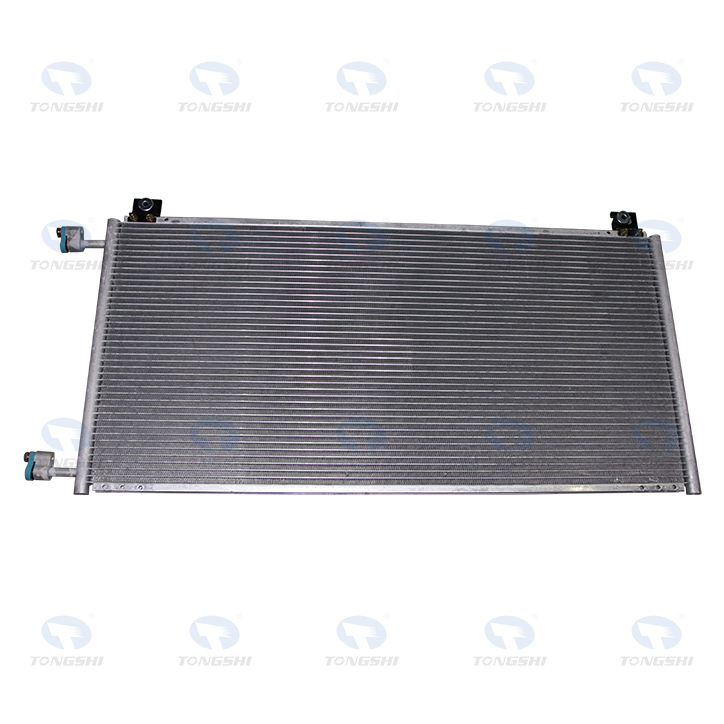

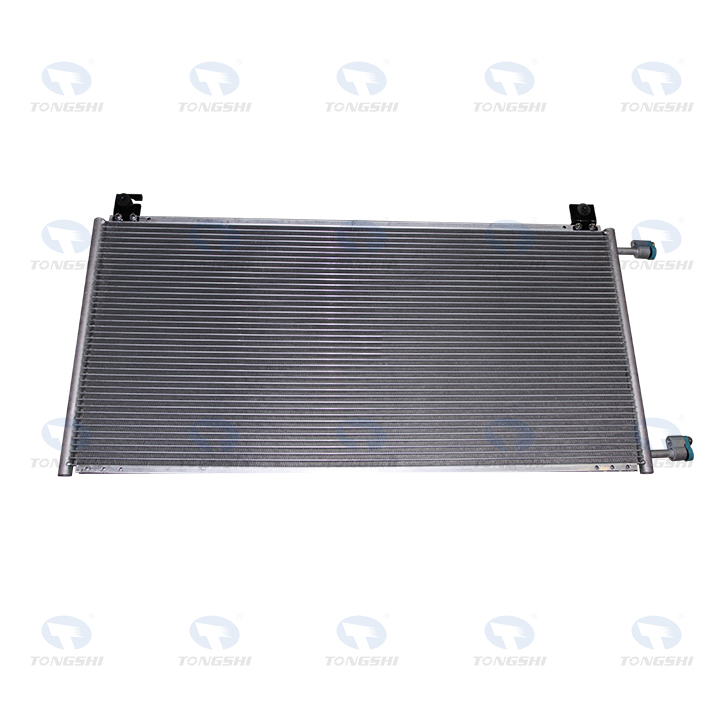

This automotive air conditioning condenser is engineered for superior heat transfer, effectively converting high-pressure refrigerant gas into a high-pressure liquid. Featuring a durable aluminum alloy construction, it offers excellent corrosion resistance and long-lasting performance. Its parallel flow design, incorporating multiple horizontal tubes and vertical fins, maximizes surface area to ensure optimal cooling efficiency for your vehicle's climate control system.
Compatibility
Compatible Vehicle Models
| Vehicle Model | Engine | Year Range |
|---|---|---|
| Cadillac Escalade | V8 6.0L | 2002-2006 |
| Cadillac Escalade | V8 5.3L | 2002-2005 |
Technical Specifications
Core Dimensions
890 mm
Length
432 mm
Width
16 mm
Depth
Design Features
Parallel FlowCorrosion ResistantHigh-Efficiency
- OEM Reference Number
- 52475996
- DPI Number
- 3026
- Material
- Aluminum Alloy
