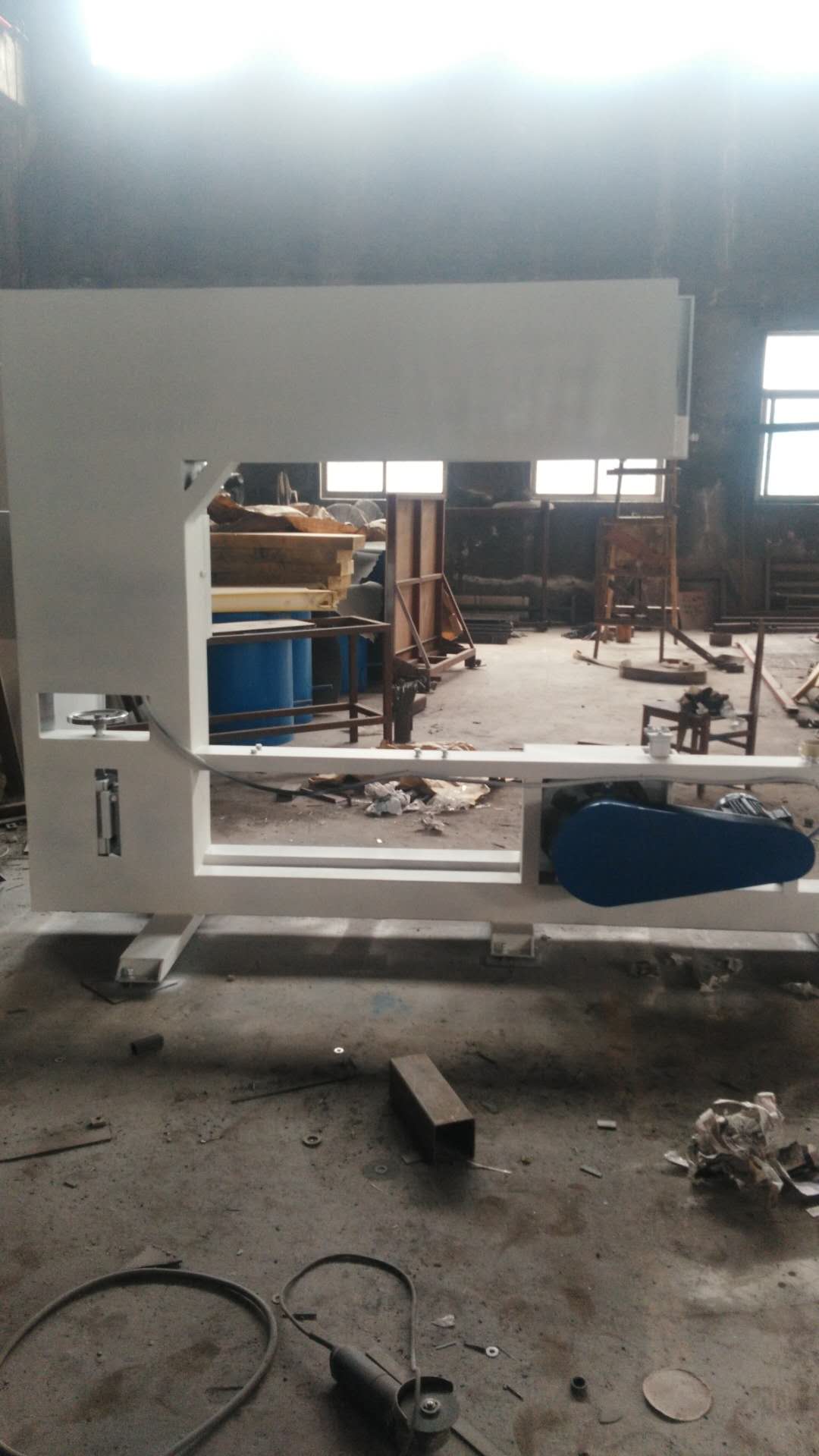

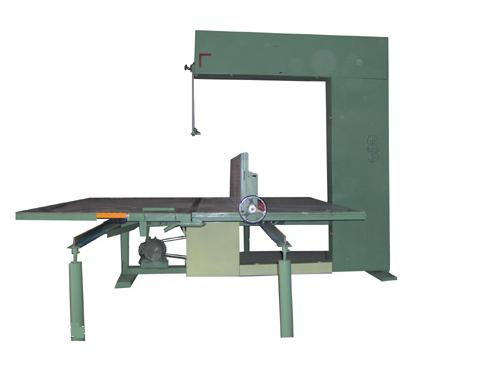

Automatic Vertical Foam Sheet Cutting Machine
This automatic vertical foam cutting machine, controlled by PLC, is designed for cutting foam sheets. Its vertical design maximizes space efficiency and ensures clean, accurate cuts.
Technical Specifications
Overview
Precision Foam Processing
This automatic vertical foam cutting machine is engineered for high-precision cutting of foam sheets, utilizing advanced PLC control for consistent results. Its robust construction and adjustable cutting parameters make it an essential tool for industrial applications such as mattress production, upholstery manufacturing, and packaging. Designed for efficiency, the machine features a large cutting area and adjustable speeds to accommodate varying foam thicknesses and production requirements.
Cutting Capacity
- Cutting Foam Size
- W2100mm x L2400mm
- Cutting Foam Height
- 1200 mm
- Cutting Thickness
- 3 - 100mm
Machine Dimensions
- Inner Table Size
- W2150mm x L2440mm
- Outer Table Size
- W2150mm x L2440mm
- Floor Space Required
- L3700mm x W5700mm x H2900mm
Performance Metrics
Key Performance Metrics
7.5 kw
Total Motor Power
2,200 kg
Machine Net Weight
30 m/min
Max Cutter Frame Speed
- Baffle Moving Speed
- 0 - 10 m/min
Technical Specifications
- Blade Specifications
- L9720mm x W30mm x T0.45mm
- Blade Tension System
- Yes
- Control System
- PLC ControlledAutomatic
