Automatic Stirrup Bending Machine
The automatic stirrup bending machine is CNC controlled and can automatically straighten, bend, and cut steel wire. It is widely used in the construction industry and rebar manufacturing for processing steel wire rod, steel bar, and steel rebar.
Technical Specifications
Overview

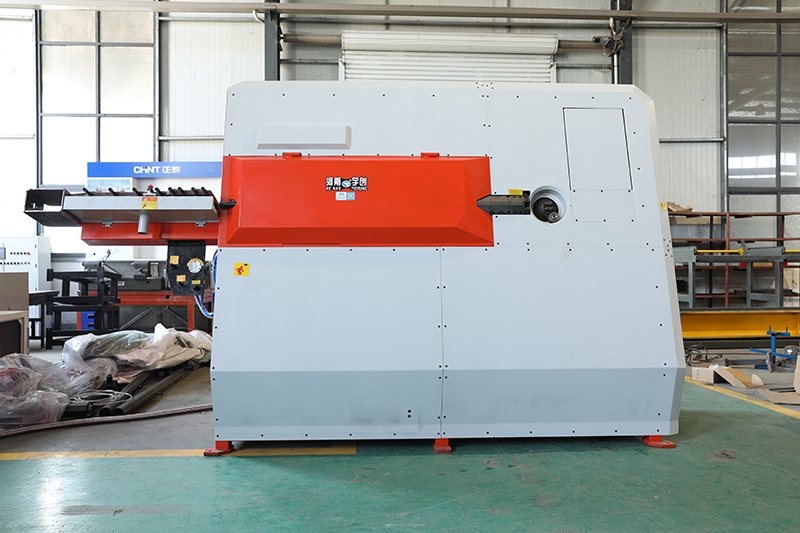

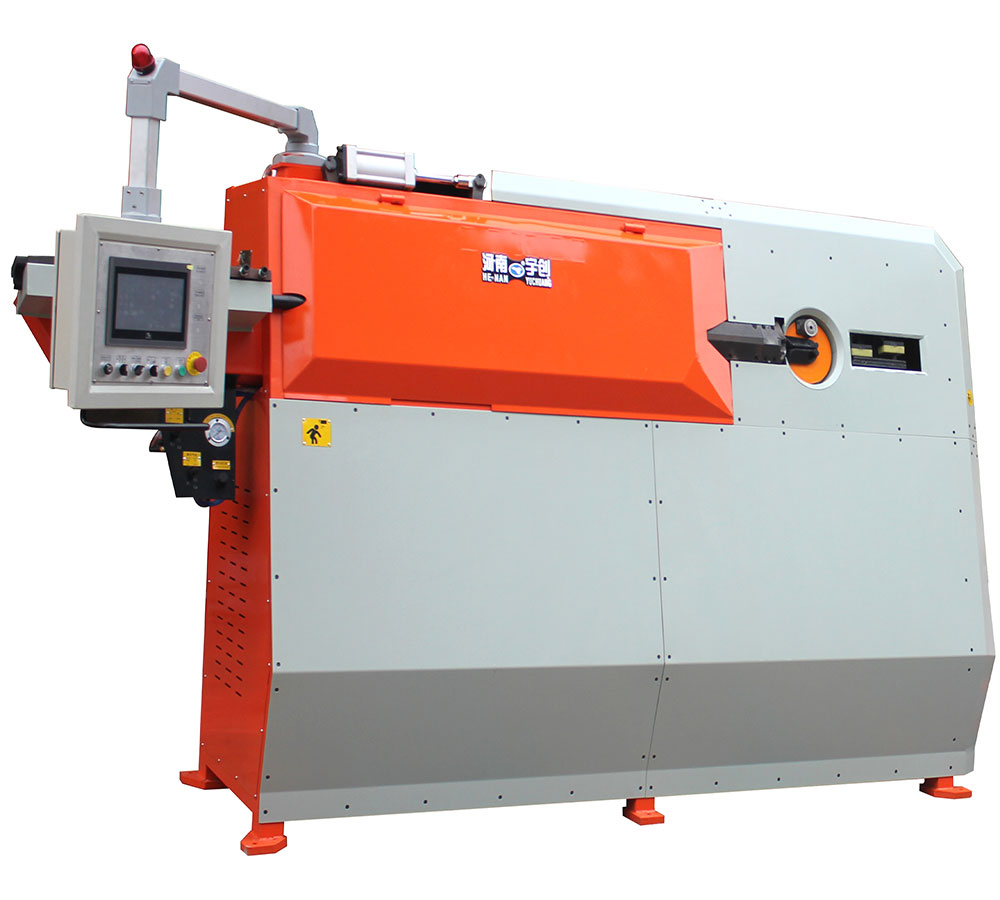

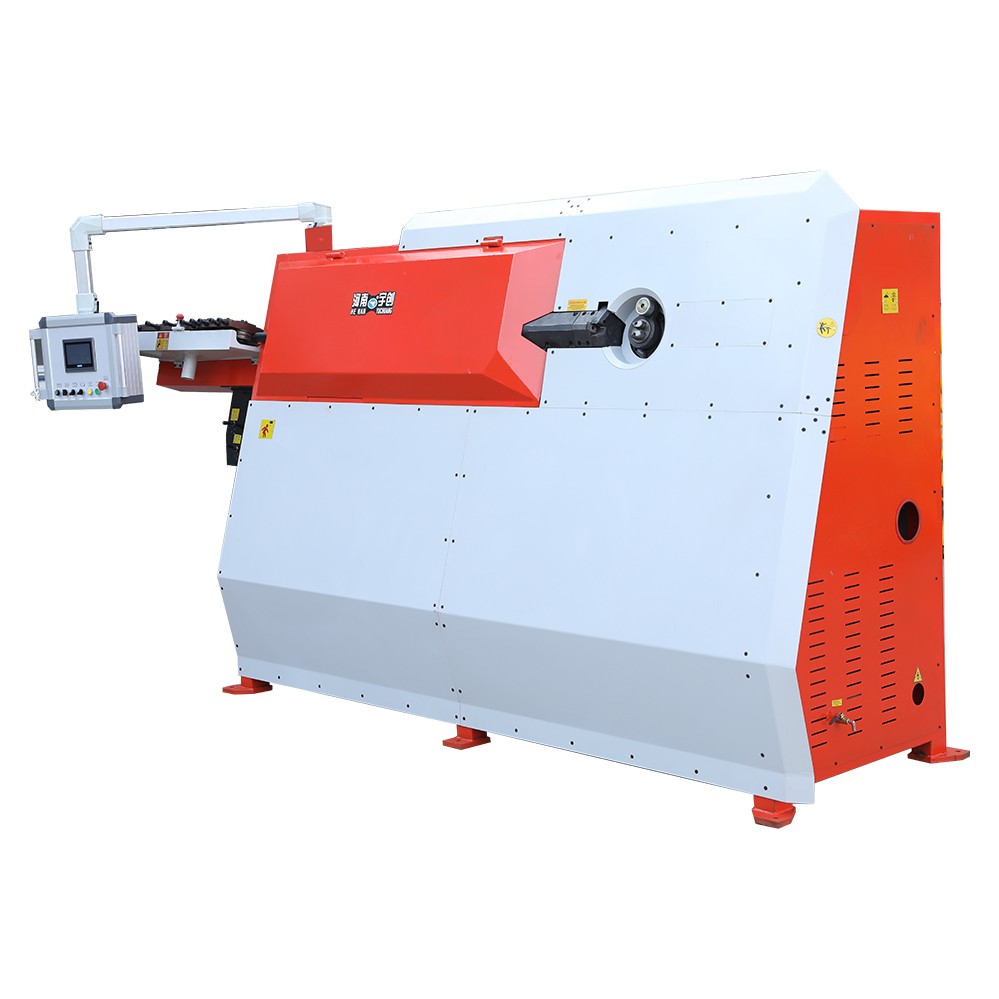

CNC Automatic Stirrup Bending Machine
This high-performance CNC stirrup bender is engineered for efficiency in the construction and rebar manufacturing sectors. Featuring an advanced servo-controlled system, it fully automates the processes of straightening, bending, and cutting steel wire rods and reinforcement bars. Designed for heavy-duty industrial use, it offers superior precision, consistent output, and simplified operation to maximize productivity on-site.
Technical Specifications
Production Capacity
| Configuration | Diameter Range |
|---|---|
| Single Wire | 8-16mm |
| Double Wire | 8-12mm |
Performance Metrics
180 °
Max Bending Angle
110 m/min
Max Pulling Speed
1,100 pics/h
Max Bending Speed
- Average Power Consumption
- 5 kw/h
Design and Compatibility
- Central Mandrel Diameter
- 20-30mm
- Primary Applications
- Construction IndustryRebar ManufacturingPrecast ConcreteMetalworking
