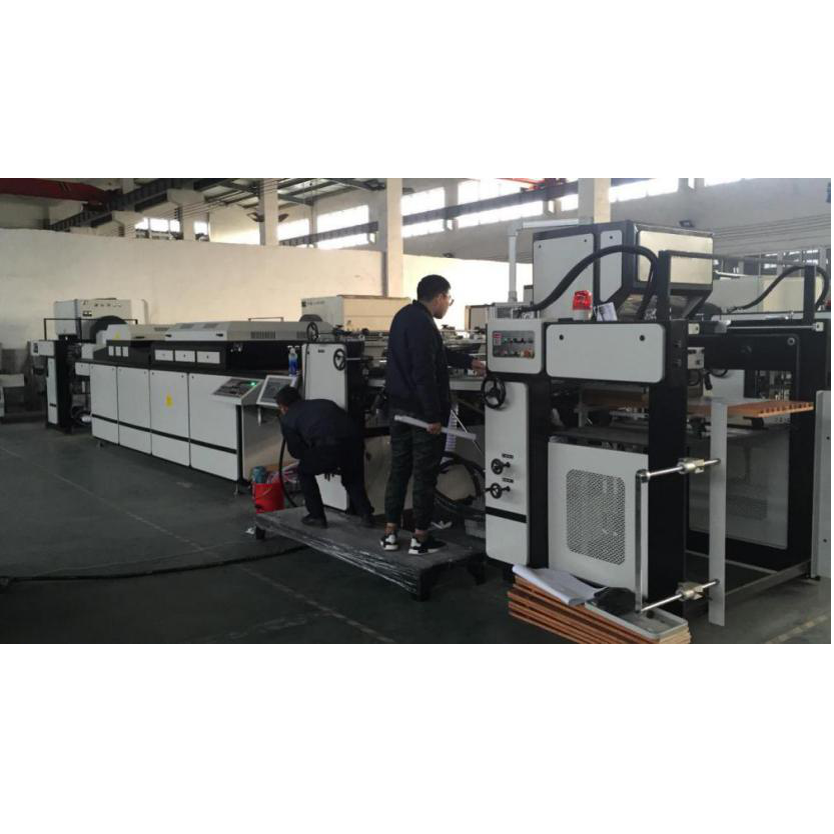

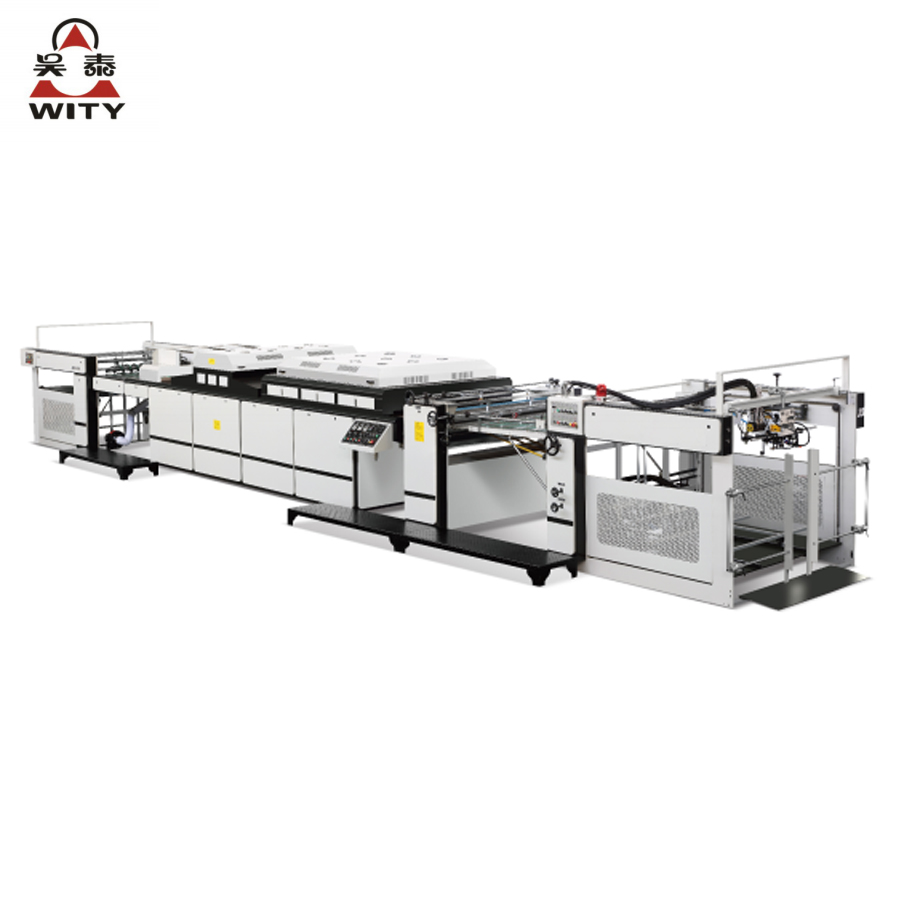

Automatic Paper Glazing and Oil Coating Machine
This machine is designed for glazing and oil-coating paper surfaces, accommodating paper weights from 80 to 600gsm. It features a computerized paper blowing cutter, a strong absorption paper-feeding mechanism, and a scraper with left-to-right movement.
Technical Specifications
Overview
High-Efficiency Surface Finishing
This automatic paper glazing and oil coating machine is engineered for high-volume production environments requiring precise surface treatment. It integrates advanced feeding, coating, and drying systems to ensure uniform application and high-quality results for materials like book covers, brochures, and packaging. With a robust design and modular components, it offers streamlined operation, easy maintenance, and consistent performance across various paper thicknesses.
Feeding & Collection
Feeding System Capabilities
- Automatic paper feeder
- Includes paper pre-stacking function
- Continuous paper feeding support
- Collection System
- Automatic paper collector with left and right side paper patting plates for neat stacking
Coating System
Varnishing Mechanism
- Three-roller anti-clockwise rotating system
- Speed adjustable
- Independent motor for oil metering roller
- Designed to prevent line marks and ensure even coating
- Minimum Paper Thickness for Blowing Cutter
- 250 gsm
Drying System
IR Drying Tunnel
8 pcs
Number of Lamps
1.2 kw
Power per Lamp
UV Drying Tunnel
3 pcs
Number of Lamps
8 kw
Power per Lamp
- Drying Features
- Separated temperature controlTeflon conveying beltWeb-guiding systemCooling fanAutomatic descend/ascend protection
