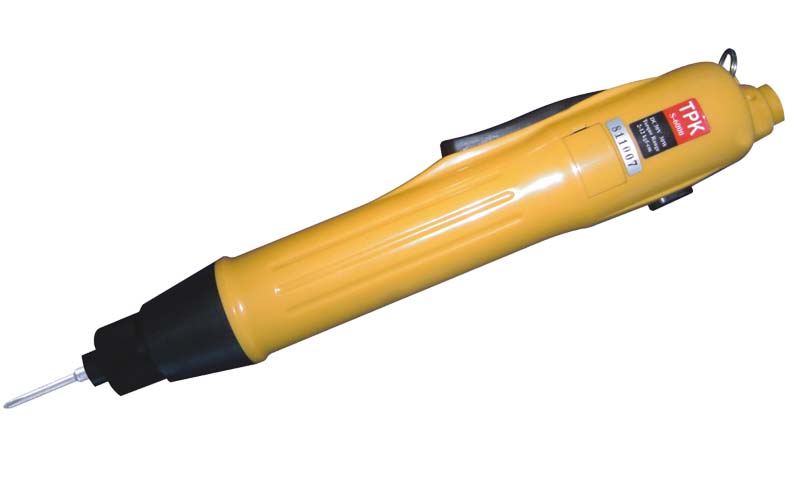

Automatic High-Precision Electronic Screwdriver
This automatic electronic screwdriver is designed for small and intricate assembly tasks. It features a robust motor and provides accurate torque control.
Technical Specifications
Overview
High-Precision Assembly Solution
This automatic electronic screwdriver is engineered for high-precision assembly tasks, making it an ideal choice for manufacturing mobile phones, cameras, and other intricate electronic devices. Featuring a robust motor and consistent torque control with an accuracy of ±3%, it ensures reliability for demanding production lines. The tool is designed for efficiency and ease of use, supporting both machine and tapping screws with adjustable rotation settings.
Performance Metrics
Key Performance Indicators
1,000 r.p.m
Rotation Rate
3 %
Torque Accuracy
30 V
Operating Voltage
Technical Specifications
Dimensions & Weight
| Attribute | Value |
|---|---|
| Length | 262 mm |
| Weight | 480 g |
Compatible Screw Types
- Machine Screw: 3.0-5.0 mm
- Tapping Screw: 2.6-4.0 mm
- Torque Range
- 7-22 Kgf-cm (0.7-2.2 Nm)
- Applied Bit Size
- φ5 mm
Features & Options
- Available Options
- ESD Type Available1/4 inch Hexagonal Bit AvailableODM Service Available
Packing List
Package Contents
- 1x Electric screwdriver
- 2x Bits
- 1x Torque cover
- 1x DC power cord
- 2x Carbon brush
