Automatic Corrugated Fin Forming Machine for Transformer Tanks
This automatic machine produces corrugated fins for transformer tanks. It features a multi-stage process including forming, welding, and cutting, managed by a PLC for precise control.
Technical Specifications
Overview
High-Efficiency Transformer Fin Production

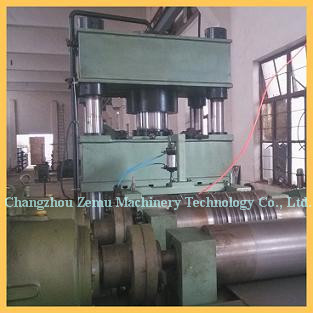

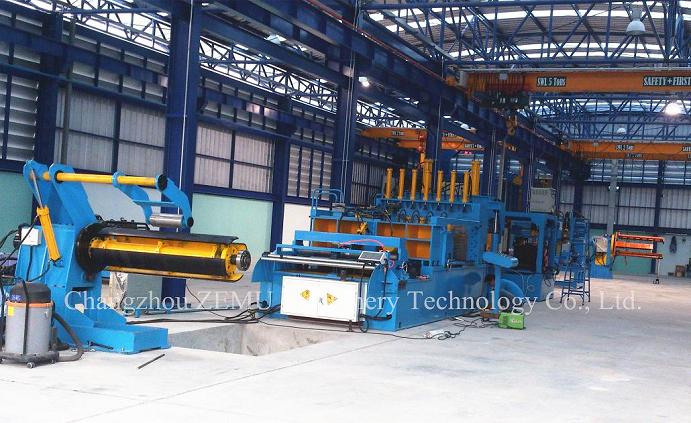

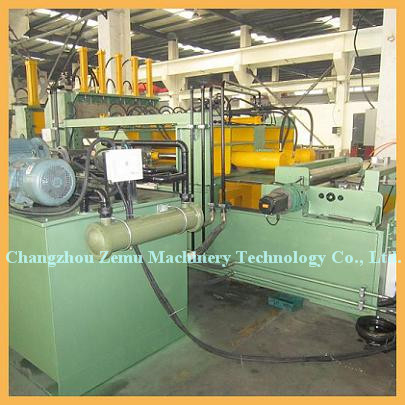

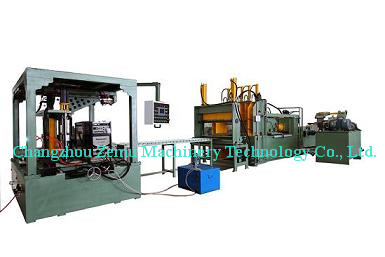

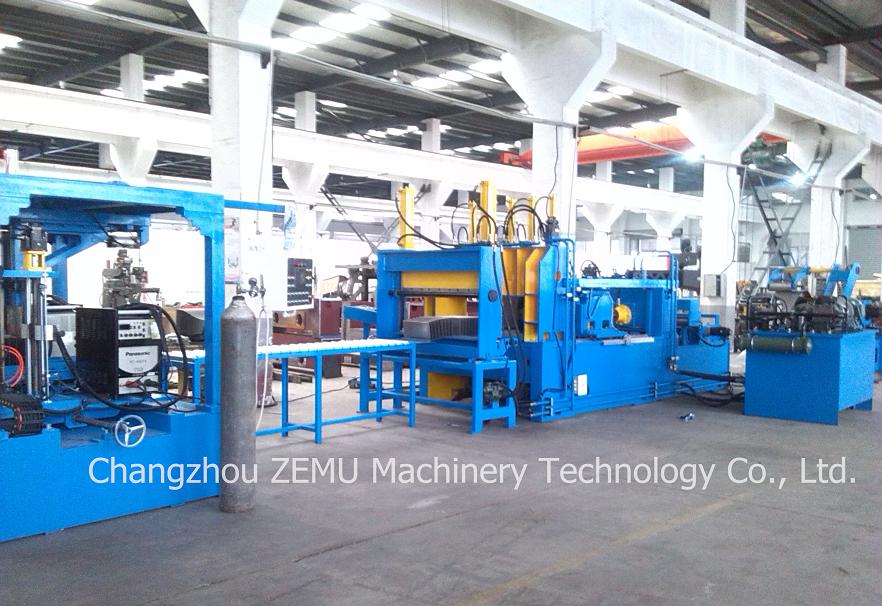

This automatic manufacturing machine is specialized equipment designed for the precision production of transformer corrugated fin walls. It integrates advanced PLC control with robust hydraulic and pneumatic systems to handle forming, welding, and cutting processes seamlessly. Engineered for high-volume environments, the system ensures consistent quality, dimensional accuracy, and reliable performance across various fin dimensions and material thicknesses.
Technical Specifications
Performance Metrics
4 fins/min
Max Forming Speed
0.25 mm
Pitch Accuracy
6 mm
Inner Gap
Dimensional Capabilities
| Parameter | Range |
|---|---|
| Fin Width | 300 - 1600 mm |
| Steel Sheet Thickness | 0.5 - 1.75 mm |
| Corrugation Height | 50 - 400 mm |
| Corrugation Pitch | ≥ 45 mm |
Operational Capabilities
Fin Embossment Options
One EmbossmentTwo Embossments
- Key Features
- PLC ControlledHydraulic SystemPneumatic ComponentsAutomated FeedingPrecision Forming
- Edge Bend Height
- 20 mm
