Transformer Corrugated Fin Wall Forming and Welding Machine
This machine is designed for forming and welding transformer corrugated fin walls. It automates the process, ensuring consistent quality and high production rates.
Technical Specifications
Product Overview

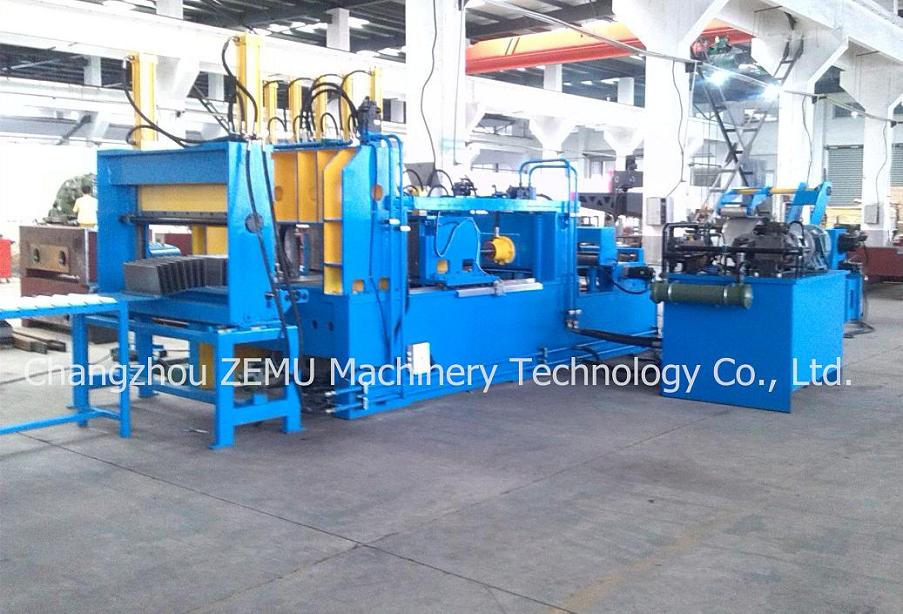

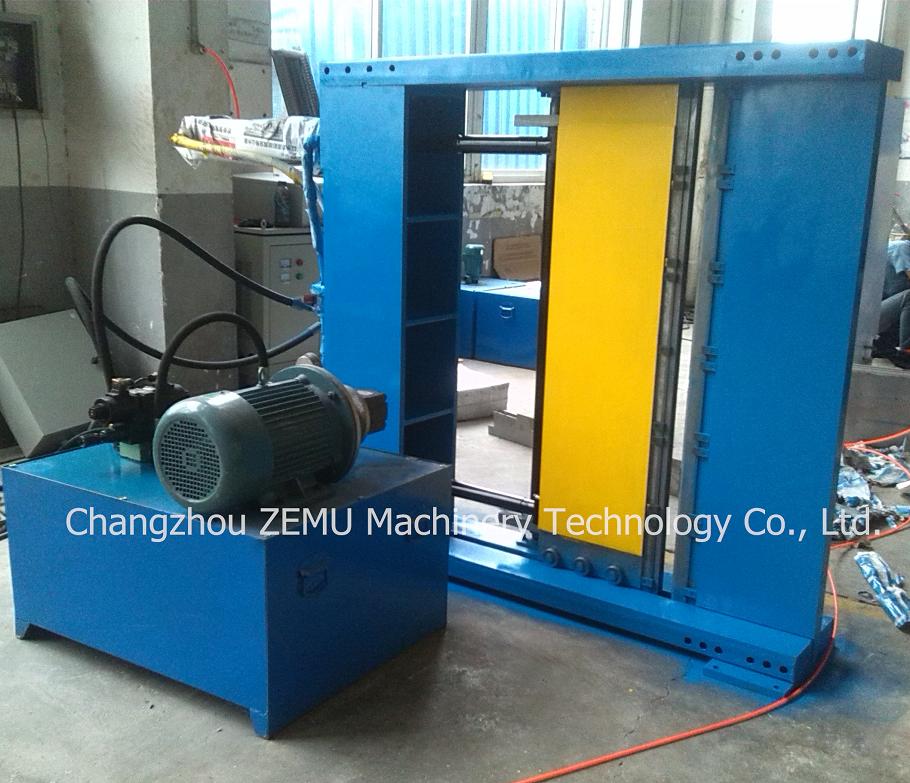

BW800A Production Line Overview
The BW800A is a specialized, fully automated production line engineered for the efficient manufacturing of corrugated fin walls used in transformer tanks. This integrated system streamlines the entire process, combining material feeding, fin forming, edge folding, shearing, and welding into a single, high-precision workflow. Designed for operational efficiency, it requires minimal labor and features advanced hydraulic and PLC control systems to ensure stable, consistent output for diverse transformer designs.
Technical Specifications
Forming Speed
3 fins/min
Minimum Speed
4 fins/min
Maximum Speed
Plate Dimensions
| Parameter | Range |
|---|---|
| Plate Width | 300mm - 800mm |
| Plate Thickness | 0.5mm - 1.75mm |
Corrugation Parameters
- Corrugation Height: 50mm - 300mm
- Corrugation Pitch: >= 45mm
- Optional Hemming Function: 20mm hemming height
System Components
- Included Modules
- Hydraulic Automatic DecoilerTransformer Tank Fin Forming MachineHydraulic Shearing and Hemming MachineAutomatic Welding MachineHydraulic StationPLC Control System
Operational Features
Key Operational Benefits
- Automatic hydraulic control system for stable running
- Human-machine interface (HMI) for intuitive operation
- One-time processing of forming, shearing, and edge folding
- Labor-saving design (requires only 1-2 operators)
