Technical Specifications
Overview

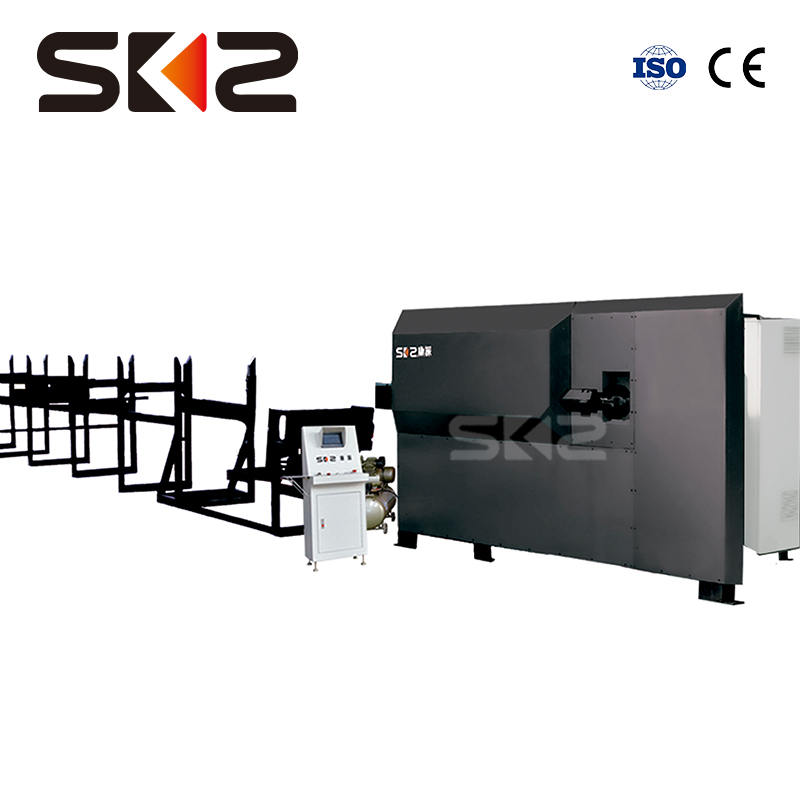

Automatic CNC Steel Bar Bending Machine
The KHD16BX is a high-performance automatic CNC steel bar bending machine designed for precision and efficiency in construction and fabrication. Engineered for the international market, it features a robust construction and advanced control systems to ensure consistent, high-quality output. This machine streamlines production workflows, reduces manual labor, and offers reliable performance for high-volume steel processing requirements.
Technical Specifications
- Model
- KHD16BX
- Dimensions
- 12000 x 3000 x 2000 mm
- Weight
- 3800 Kg
- Power Consumption
- 5 Kw/h
- Total Power
- 30 Kw
- Container Requirement
- 20GP
Performance & Capabilities
Production Capacity
1,800 pcs/h
Production Rate
Fabrication Capabilities
| Wire Type | Diameter Range |
|---|---|
| Single Wire | 5-13 mm |
| Double Wire | 5-10 mm |
- Max Stirrup Diagonal Length
- 1230 mm
Control & Features
Design Features
- Tilt front panel
- Optimized for international market
- Control System
- Mitsubishi PLC
- Certifications
- ISO 9001CE
