Australian 3-Pin Power Cord

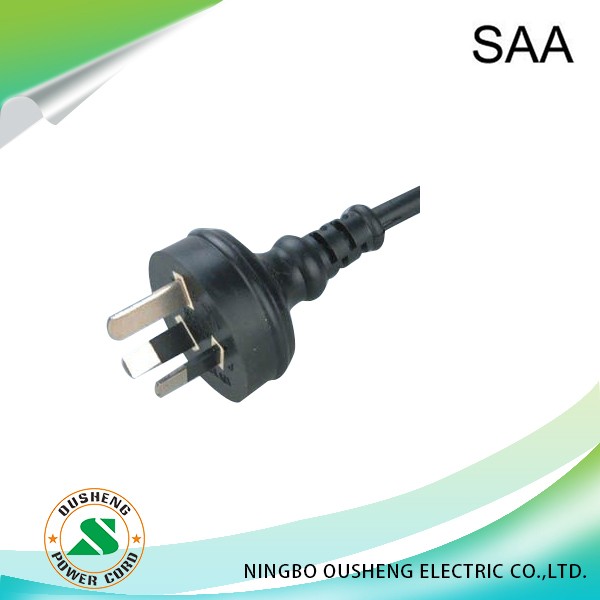

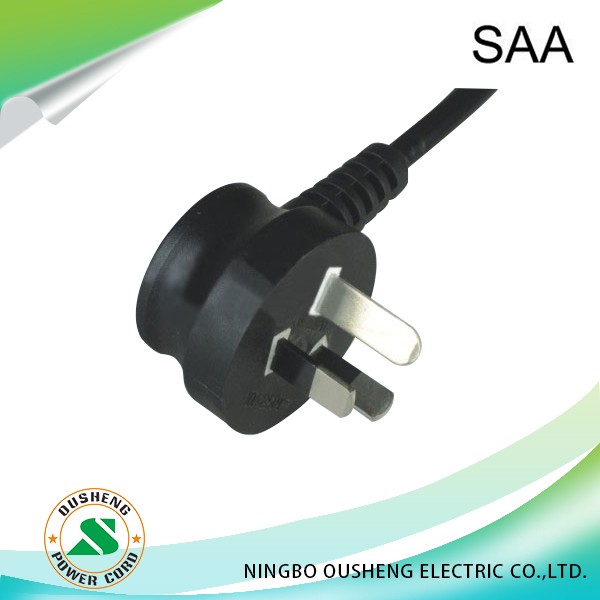

This power cord is designed for use in Australia and features a standard Australian plug configuration with three flat pins. It is available in both straight and angled configurations.
Technical Specifications
Product Overview
Australian Power Connectivity
This high-quality 3-pin power cord is designed to meet AS/NZ 3112 standards for safe and reliable power supply in Australia. It features a robust molded plug construction and is SAA certified, ensuring compliance with rigorous electrical safety requirements. The cord is available in multiple configurations including straight, angled, and round earth pin options to suit diverse industrial and household appliance needs.
Electrical Ratings
Rated Current
10 A
Max Current
- Rated Voltage
- 250 V
Technical Specifications
Plug Configurations
- OS06A (Straight)
- OS06B (Angled)
- OS06D (Round Earth Pin)
Compatible Connectors
- IEC C5
- IEC C13
- IEC C15
- IEC C19
- Compliance Standard
- AS/NZ 3112
- Approvals
- SAA
Cable Details
Available Cable Types
| Cable Type | Conductor Specs |
|---|---|
| H03VV-F | 3G0.5-0.75mm² |
| H05VV-F | 3G0.75-1.5mm² |
| H07VV-F | 3G1.0-1.5mm² |
| H05RN-F | 3G0.75-1.0mm² |
| H07RN-F | 3G1.0-1.5mm² |
Ordering Information
- Minimum Order Quantity
- 2000
- Samples Available
- Yes
