Technical Specifications
Overview
Professional EM Security Solution
The ES001 is a high-performance electromagnetic (EM) security gate designed specifically for libraries, bookstores, and retail outlets. This system provides a reliable anti-theft deterrent while maintaining an open, welcoming atmosphere through its sleek resin-glass and MDF construction. With advanced detection technology and customizable configurations, it offers a robust solution for protecting valuable assets in high-traffic professional environments.
Technical Specifications
Unit Dimensions
148 cm
Height
54 cm
Width
4 cm
Thickness

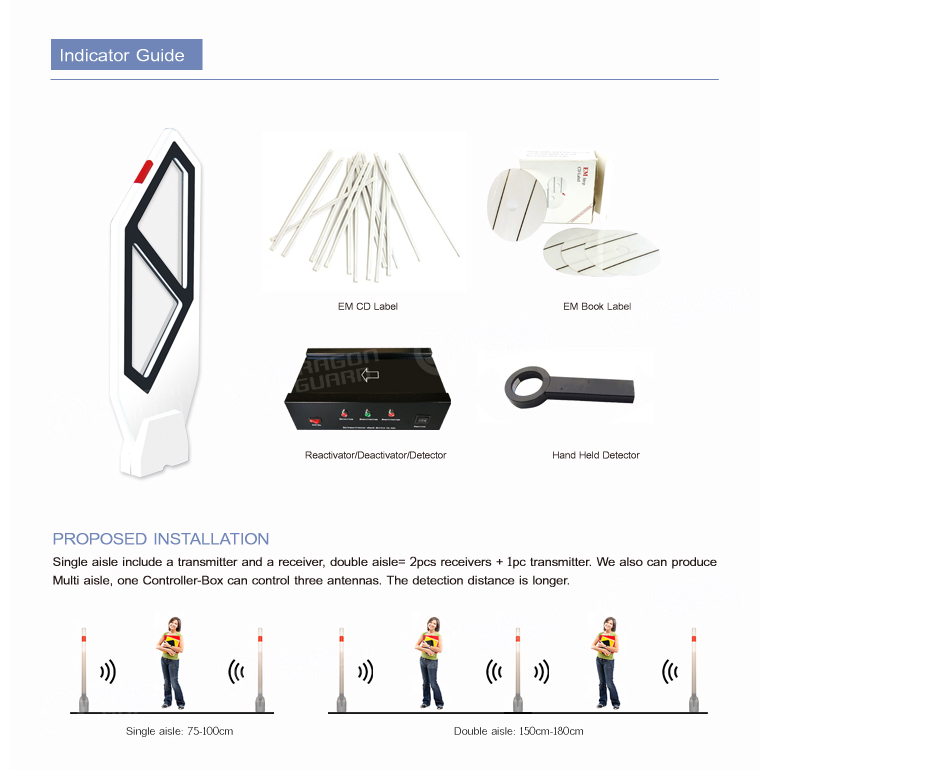

Detection Range
| Configuration | Detection Width | Detection Height |
|---|---|---|
| Single Aisle (1 Transmitter + 1 Receiver) | 75cm - 100cm | 170 |
| Double Aisle (1 Transmitter + 2 Receivers) | 150cm - 180cm | 170 |
Operating Parameters
- Working Voltage: 110V-240V
- Operating Temperature: -20°C to 60°C
- Material: Advanced Resin-Glass + MDF
- Technology: EM (Electromagnetic) System
Customization & Features
Available Features

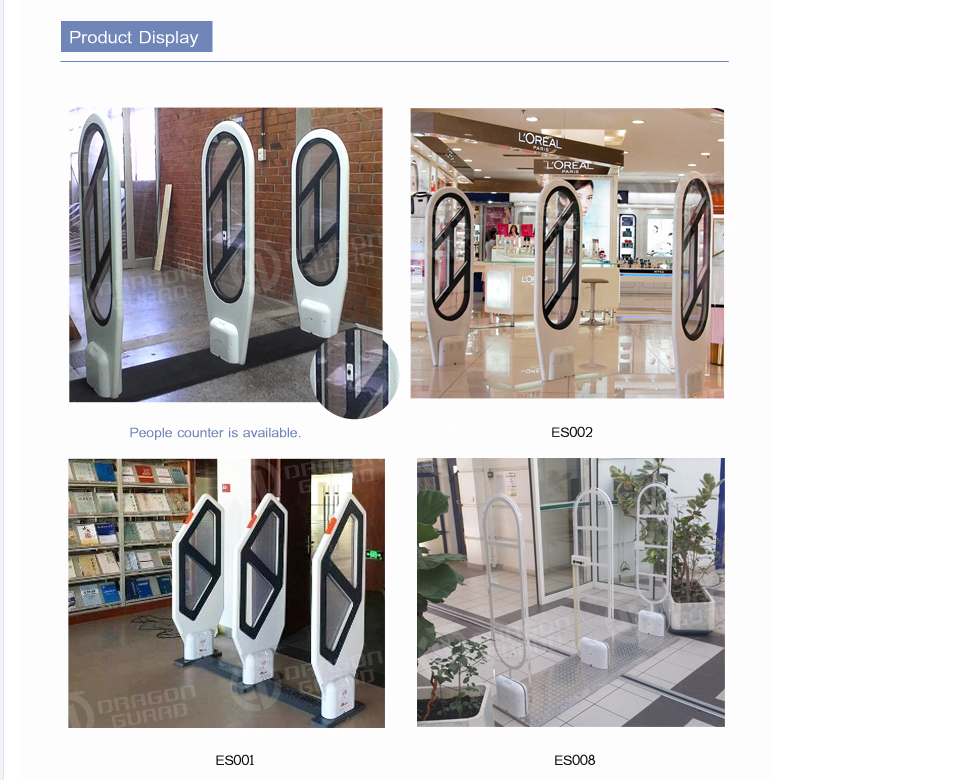

- Integrated People Counter available
- Multi-aisle expansion (1 controller for 3 antennas)
- Compatible with EM CD and Book labels
- Sleek transparent panel design
- Customization Options
- LogoColorShapePCB BoardAlarm LightFrame MaterialCable LengthAdvertisement Panels
Logistics & Compliance
Compliance Certifications
CEISOROHSSGSMSDS
Shipping Data
- Packaging: 1 set per carton
- Carton Weight: 34kg
- Carton Dimensions: 151 x 62 x 18 cm
- Port of Origin: Shanghai
- Supply Ability
- 5000 sets per week
