ANSI B16.5 Forged Flange

This forged flange adheres to ANSI B16.5 standards. It is designed to provide a secure and leak-proof connection in hydraulic systems, pipelines, and structural components.

Request a Quote Download PDFPDF

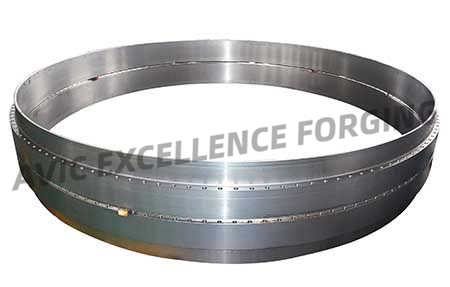

ANSI B16.5 standard size of forged flange - Image 1

Technical Specifications

Product Overview

ANSI B16.5 Forged Flange Capabilities

This forged flange is engineered to comply with ANSI B16.5 standards, providing a secure and reliable connection for demanding industrial applications. Designed for high-performance environments, it supports seamless rolled ring construction with significant dimensional flexibility. Its robust build makes it an ideal component for hydraulic systems, pipelines, and heavy-duty structural machinery.

Dimensional Specifications

Outer Diameter Range

700 mm

Min Outer Diameter

9,000 mm

Max Outer Diameter

Maximum Thickness: 800 mm
Maximum Height: 1500 mm

Performance Capabilities

Maximum Weight: 40 tons

Compliance & Standards

Standards: ANSI B16.5

Vous souhaitez sourcer ce produit ?

Soumettez une demande pour être mis en relation avec des fabricants vérifiés qui produisent ce produit.
